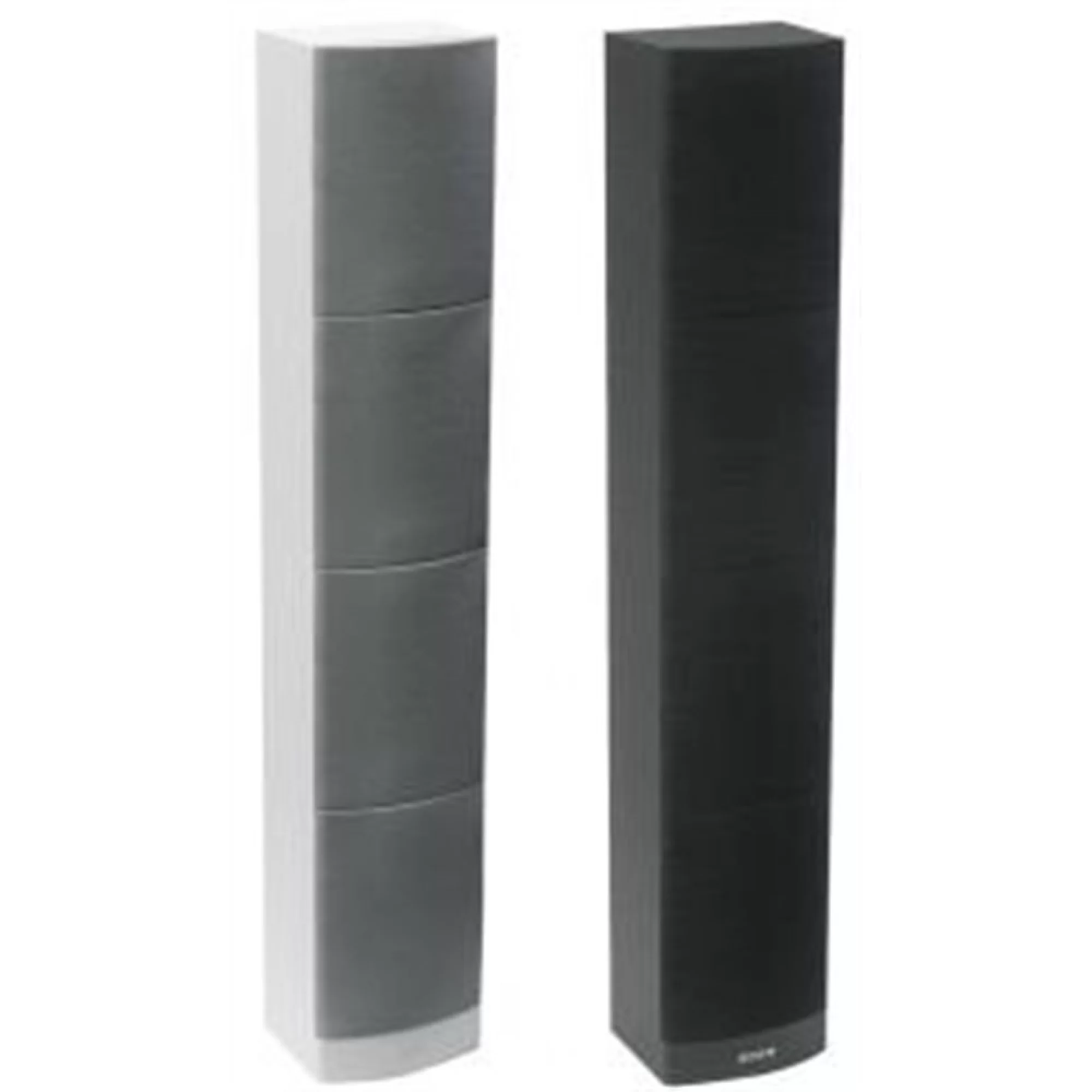

The LA1‑UW36‑x‑US is a 36 W, general-purpose, costeffective column loudspeaker for indoor use where beaming is desirable, such as places of worship, congress venues, meeting rooms and canteens. A swivel wall mounting bracket is supplied as standard. The column loudspeaker is available in black or white.
- Excellent speech intelligibility and music reproduction
- For applications where directivity is important
- High sensitivity
- Swivel wall mounting bracket supplied as standard
- Available in black or white
- MDF construction
- Complies with international installation and safety regulations
Technical Specifications
Electrical
Maximum power 54 W
Rated power 36 / 18 / 9 W
Sound pressure level at36 W / 1 W (1 kHz, 1 m) 114 dB / 98 dB (SPL)
Effective frequency range (-10 dB) 160 Hz to 19 kHz
Coverage angle 1 kHz / 4 kHz (-6 dB)
horizontal 190° / 88°
vertical 30° / 8°
Rated input voltage 70 V
Rated impedance 139 ohm
Connector 4‑pole push‑in terminal block
Mechanical
Dimensions (H x W x D)
841 x 151 x 129 mm
(33.1 x 5.9 x 5.1 in)
Weight
6 kg (13.2 lb)
Color
Black (D) or white (L)
cabinet / cloth (D)
Matches RAL 9004 / RAL 9004
cabinet / cloth (L)
Matches RAL 9010 / RAL 7044
