- High efficiency driver
- Excellent speech reproduction
- Provision for inside mounting of the optional line / loudspeaker supervision board
- Water-and dust protected to IP 65

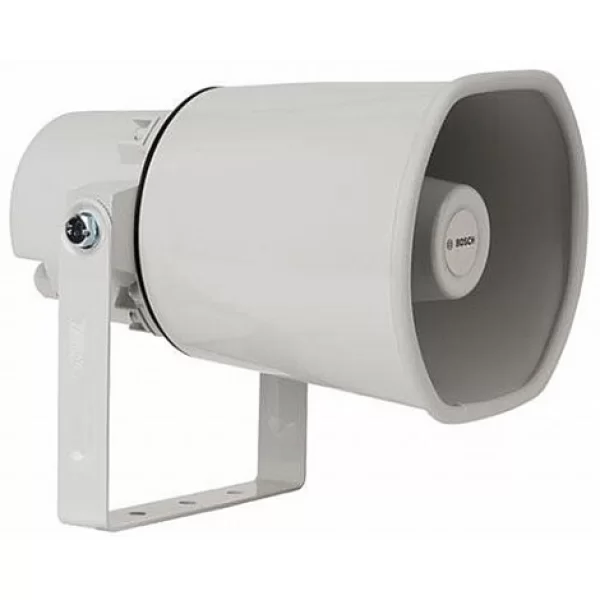

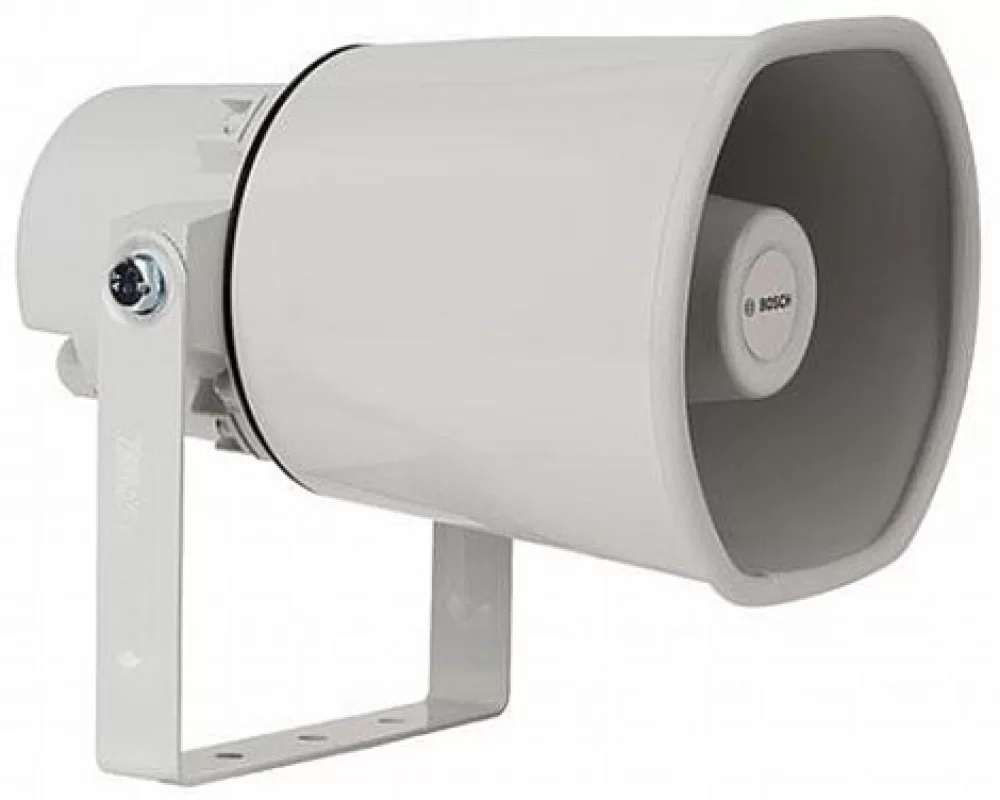

The LH1-10M10E high-efficiency horn loudspeaker, provide excellent speech reproduction and sound distribution for a wide scope of indoor and outdoor applications. It is ideal for sports grounds, parks, exhibitions, factories and swimming pools. The LH1-10M10E is a rectangular shaped 10 W horn loudspeaker, made from aluminum. The edge of the horn is covered with a PVC profile for protection
Maximum power 15 W
Rated power (PHC) 10 W
Power tapping 10 / 5 / 2.5 / 1.25 W
Sound pressure level at 10 W / 1 W (1 kHz, 1 m) 112 / 102 dB (SPL)
Effective frequency range (- 10 dB) 280 Hz to 5800 Hz
Opening angle at 1 kHz / 4 kHz (-6 dB) Horizontal 120° / 35° Vertical 125° / 35°
Rated input voltage 100 V
Rated impedance 1000 ohm
Connector Screw terminal block
* Technical performance data acc. to IEC 60268-5
Mechanical
Dimensions (W x D) (213 x 186) x 310 mm (8.39 x 7.32) x 12.2 in)
Weight 3.6 kg (7.93 lb)
Color Light grey (RAL 7035)
Material (horn / rear cover) Aluminum / ABS
Cable diameter 6 mm to 12 mm (0.24 in to 0.47 in)
Environmental
Operating temperature -25 ºC to +55 ºC (-13 ºF to +131 ºF)
Storage temperature -40 ºC to +70 ºC (-40 ºF to +158 ºF)
- Relative humidity <95%
