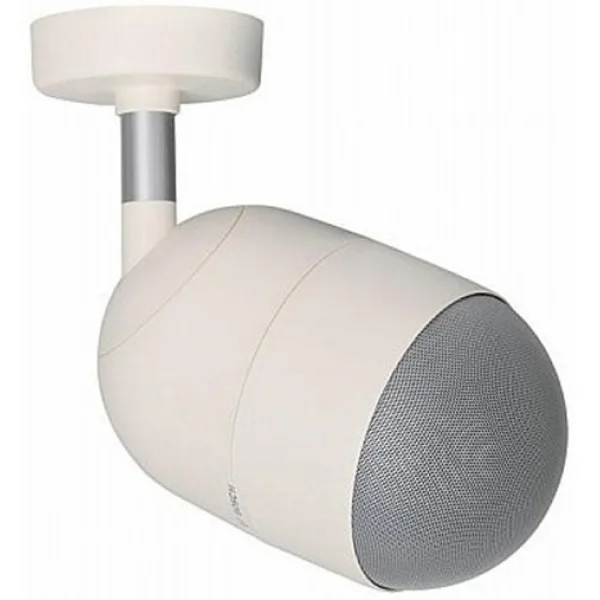

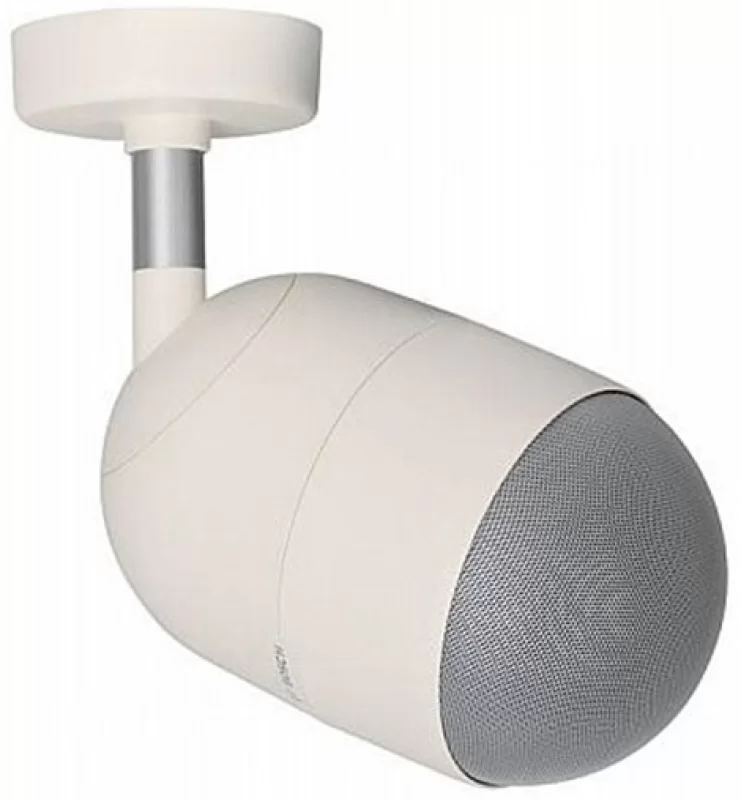

BOSCH LP1-UC10E-1 Unidirectional Sound Projector, 10 Watt 100V , white ABS
- Superb speech and music reproduction
- Integrated connection cable
- Ceiling or wall mounting
- Water and dust protected to IP 65
The LP1-UC10E-1 is a powerful, 10 W sound projector intended for high quality speech and music reproduction in indoor and outdoor applications. The state-of-the-art design is matched to both modern and traditional style environments. The sound projector is suitable for use in voice alarm systems.
Maximum power 15 W
Rated power 10 / 5 / 2.5 / 1.25 W
Sound pressure level at 10 W / 1 W (1kHz, 1 m) 96 dB / 86 dB (SPL)
Opening angle at 1 kHz / 4 kHz (-6 dB) 220° / 65°
Effective frequency range (-10 dB) 75 Hz to 20 kHz
Rated voltage 100 V
Rated impedance 1000 ohm
Connector 3-ole screw terminal
* Technical performance data according to IEC 60268-5
Mechanical
Dimensions (D x L) 185 x 300 mm (7.3 x 11.8 in.)
Weight 3 kg (6.6 lb)
Color White (RAL 9010)
Material ABS
Environmental
Operating temperature -25 ºC to +55 ºC (-13 ºF to +131 ºF)
Storage temperature -
