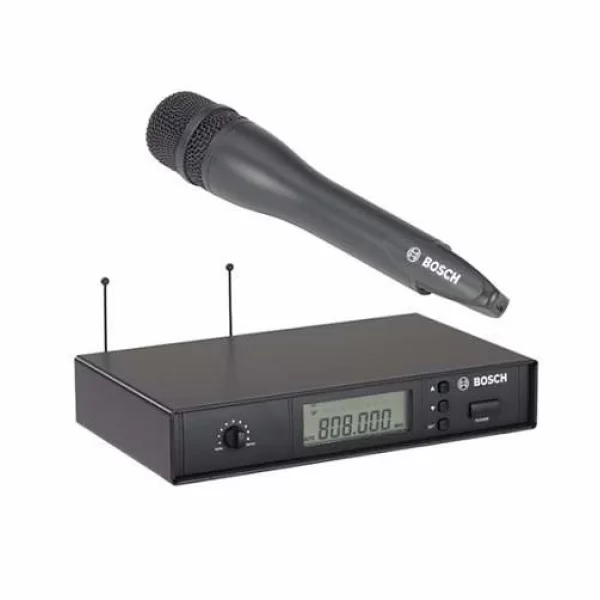

The technical specifications of the Bosch MW1RX-F4+HTXF4 wireless microphone set are as follows:
Receiver (MW1RX-F4):
- Frequency range: 606-630 MHz
- Sensitivity: -105 dBm for 12 dB SINAD
- Signal-to-Noise Ratio (S/N): > 110 dB
- Audio output: XLR and 6.3 mm (1/4") jack
- Power supply: 12-18 VDC, 300 mA
- Antenna: External antenna with BNC connection
- Weight: Approximately 700g
- Dimensions: 200 x 44 x 150 mm
Handheld Transmitter (HTXF4):
- Frequency range: 606-630 MHz
- RF Output Power: 10 mW
- Microphone Type: Dynamic cardioid
- Battery life: Up to 15 hours with two AA batteries
- Weight: Approximately 280g with batteries
- Dimensions: 260 x 50 mm
This system is suitable for small and medium-sized venues such as conference halls, places of worship, and event spaces.
