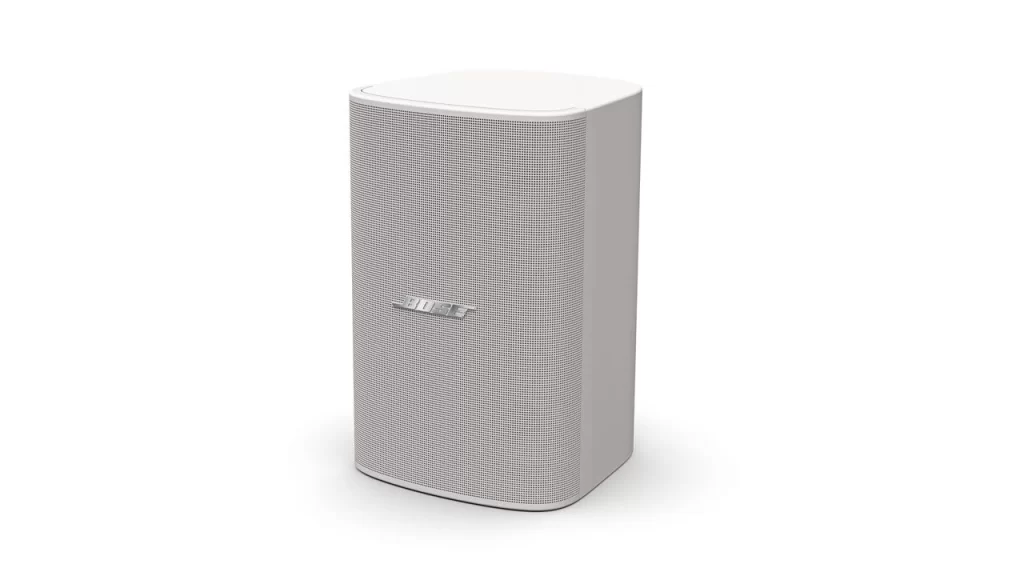

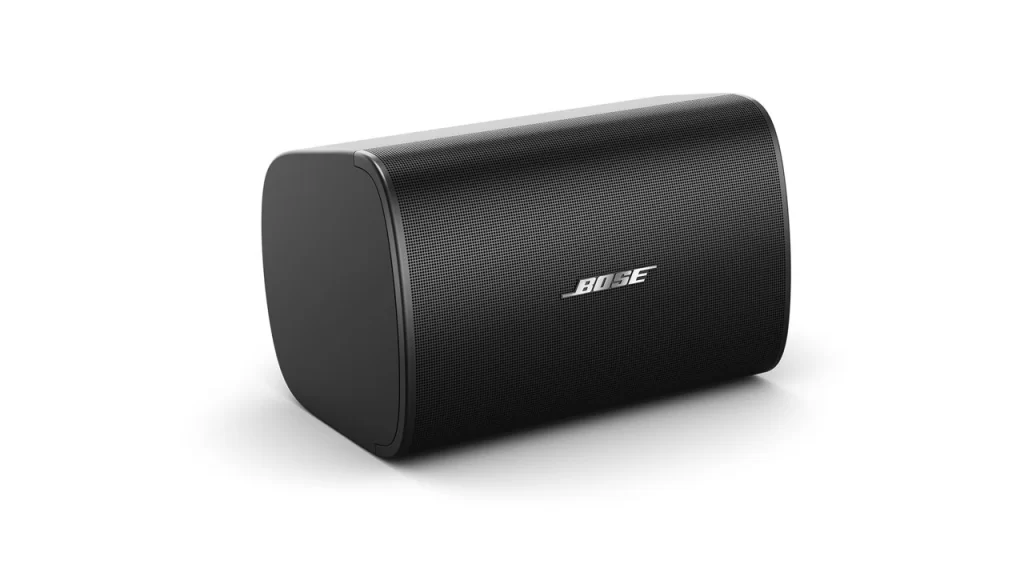

Bose DesignMax DM6SE Nedir ?
IP55 standartlı 6.5" Kasa Yapısına sahip yüksek kaliteli Sıva Üstü Hoparlördür.
100W/rms, 400W/8ohm tepe gücü ve 5/10/20/40/80W/100V Hat trafosu tap seçenekli bağlantı seçeneği ile uygulamalarda geniş kolaylıklar sağlar.
| SINGLE LOUDSPEAKER PERFORMANCE |
| Frequency Response (-3 dB) `" | 70 - 20.000 Hz |
| Frequency Range (-10 dB) to | 59 - 20.000 Hz |
| Nominal Coverage Angle (1 - 4 kHz) | 125° conical |
| Nominal Coverage Angle (1 - 10 kHz) | 115° conical |
| | AES component test 0) | Bose extended-lifecycle test (51 |
| Power Handling, long-term continuous | 125 W | 100 W |
| Power Handling, peak | 500 W | 400 W |
| Sensitivity (SPL/ 1 W *1 m)(2, | 90 dB | 90 dB |
| Calculated Maximum SPL *1 m 0) | 111 dB | 110 dB |
| Calculated Maximum SPL zu 1 m. peak | 117 dB | 116 dB |
| Crossover | 1.7 kHz (passive 2-way crossover) |
| Loudspeaker EQ | Not Required. Bose EQ voicing and SmartBass processing available |
| Recommended High-Pass Protection | 60 Hz with recommended 24 dB / octave filter |
| Overload protection | Resistor-network power reduction with automatic reset |
| Transformer taps | 70V: 2.5. 5, 10. 20.40.80W. bypass 100V: 5.10, 20. 40.80 W. bypass |
| TRANSDUCERS |
| Low Frequency | 1 x 6.5-inch woofer (165 mm). weather treated |
| High Frequency | 1 x 1.25-inch (32 mm) neodymium dome tweeter. coaxially-mounted. weather-treated |
| Technology | Dispersion Alignment System, 197 mm (7.75 in) system diameter |
| Nominal Impedance | 8 ohms (transformer bypass) |
