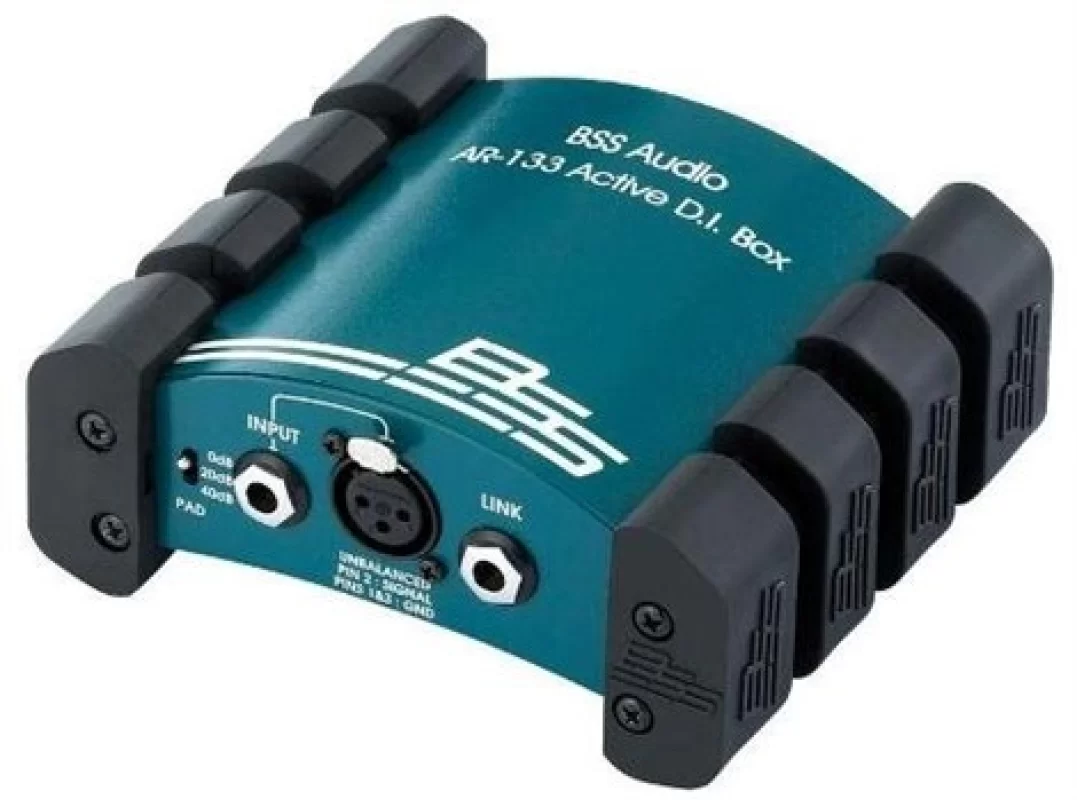

BSS AR-133 Tam Profesyonel Active DI Box

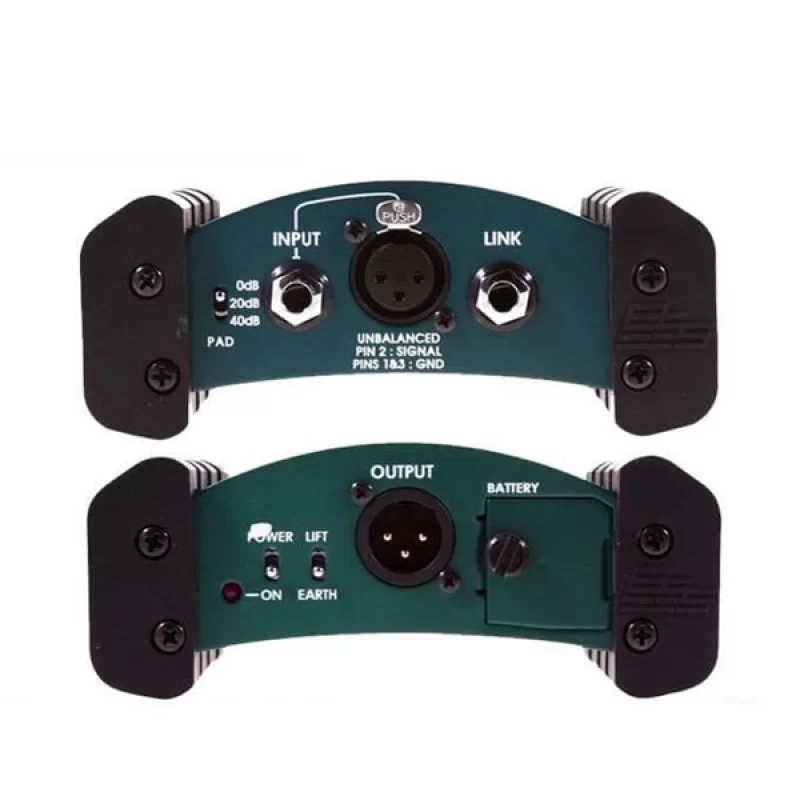

BSS AR133 Active DI box - Battery or phantom power operated, XLR/jack in, jack link, XLR out, output ground lift, thomann -20/40dB pad, galvanic isolation. Solid Construction with non slip rubber sides, stackable
TECHNICIAL SPECIFICATIONS
Input Section
Input Impedance | 1M Ohm (pad at 0dB) |
| 47k Ohm (pad at -20dB) |
| 47k Ohm (pad at -40dB) |
| |
Max Input Level | +9dBu (pad at 0dB) |
| +29dBu (pad at -20dB) |
| +49dBu (pad at -40dB) |
| |
Connectors | Two Parallel 1/4" jack connectors and a parallel XLR connector (unbalanced) |
| |
Jack: | Tip Hot (+ve) |
| Sleeve Ground |
| |
XLR: | Pin 2 Hot (+ve) |
| Pin 1 & 3 Ground |
Output Section
Output | Transformer Balanced |
| |
Max. Output Level | +8dBu into 600 Ohms or greater |
| |
Connector | XLR3-32 or equivalent |
System Performance
Distortion (THD) | < 0.005% at 1khz, 0dbu output |
| |
Noise | < -105db unweighted, 22hz-22khz, rms* |
| |
Frequency Response | 30Hz to 20kHz, +0dB/-1dB |
General
Main/Standby battery | 9 volt PP3 type, preferably alkaline. |
| |
Current drain | on phantom - less than 7.5mA |
| on battery - less than 2mA. |
| |
Phantom Power | +20 volts DC to +48 volts DC |
| |
Weight | 650 gms, excluding batteries. |
| |
Overall Dimensions | 59 mm x 124 mm x 143 mm (2.3" x 4.9" x 5.6") |
