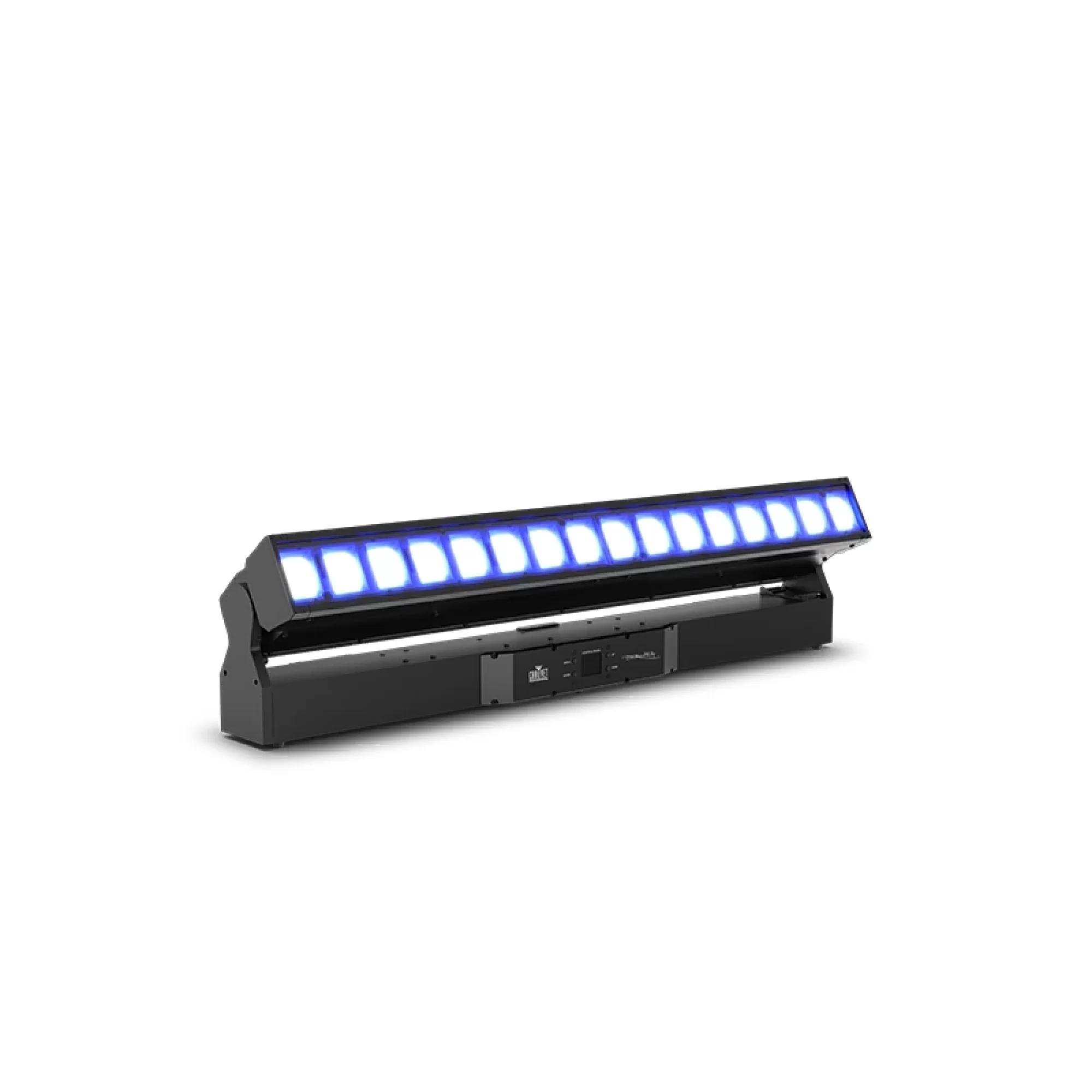

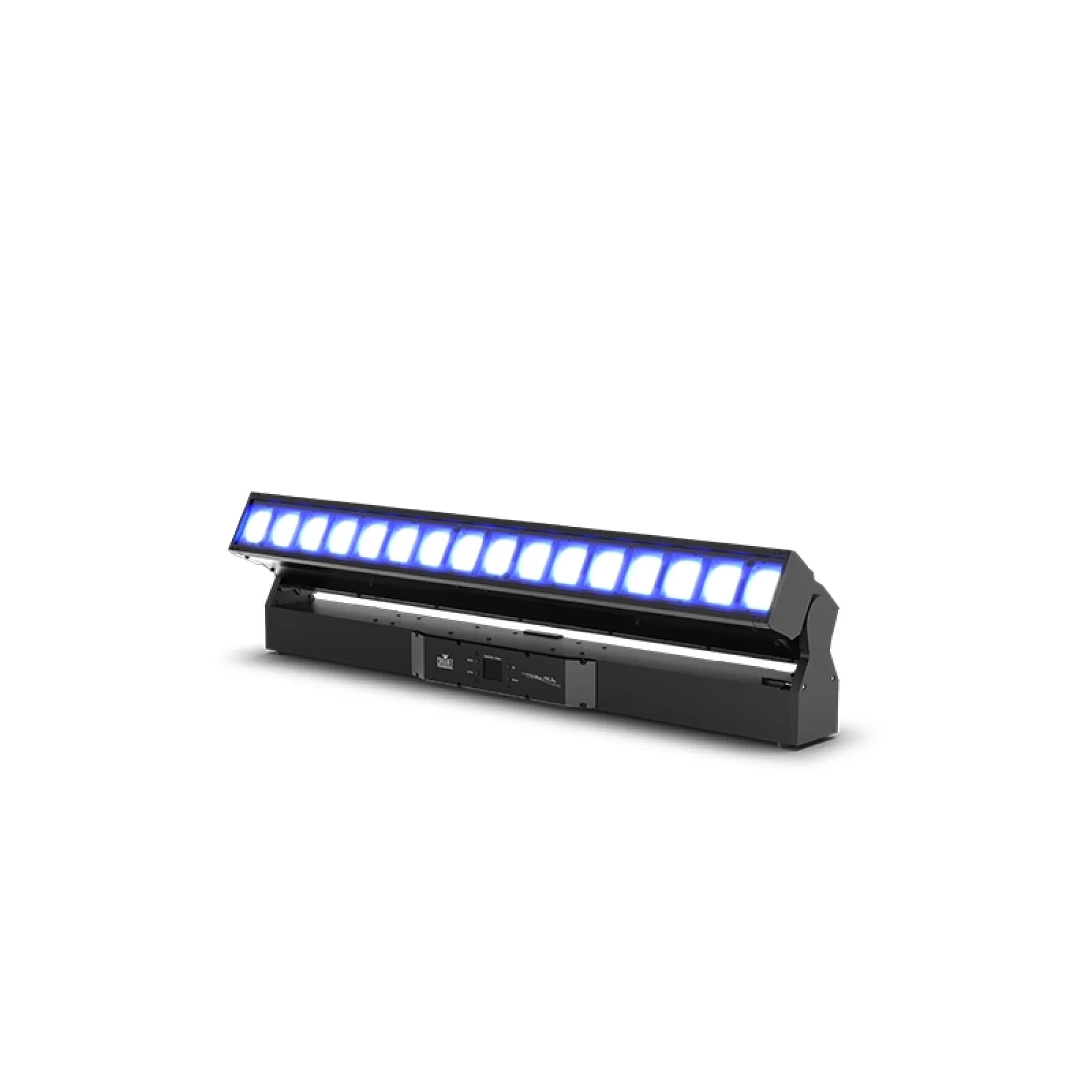

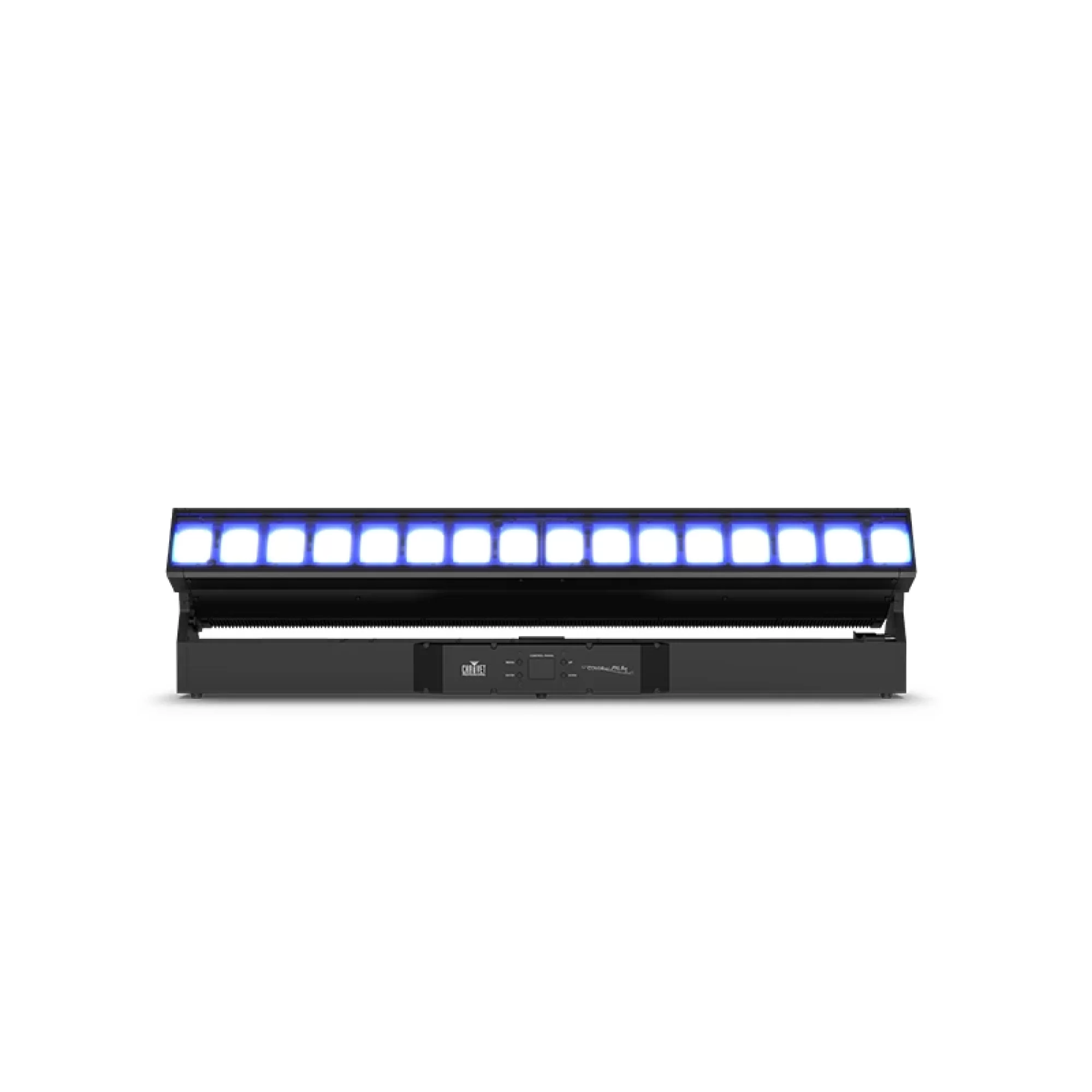

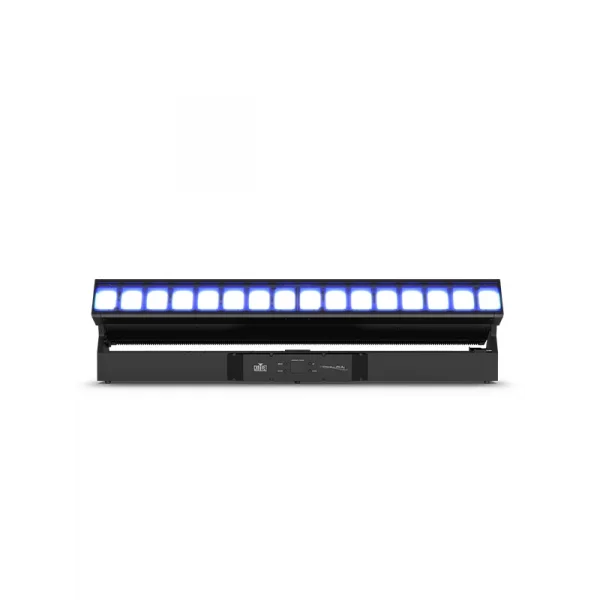

Chauvet COLORado PXL Bar 16 Led Bar

COLORado PXL Bar 16 is an outdoor motorized tilt LED bar that provides zoom capabilities for both narrow and wide pixel-mappable looks. This bright, moving pixel bar offers seamless edge-to-edge mounting and includes virtual gobos and motion macros for expanded design possibilities, as well as separate foreground and background color control.

The Omega mounting brackets allow quick and easy hanging of the device on truss. Additionally, the COLORado PXL Bar 16 can be ground-mounted, offering versatility in usage with different light angles. With two separate control zones, the control is completely in your hands, and the possibilities are endless!


Overview

• IP65-rated motorized tilt batten: Equipped with 16 45W RGBW LEDs, it offers a zoom range from 5.8° to 47.9° and maintains pixel pitch between fixtures.
• Silent and quick operation: 200° tilt movement and two separate zoom ranges.
• Pixel-mappable: Provides foreground and background color control with various built-in effects including virtual gobos and motion macros.
• Flexible control options: Supports DMX, SACN, Art-Net, and Kling-Net protocols.
• Remote access: Remote addressing and troubleshooting capability with RDM.
• Wide zoom range: Offers different beam sizes with a zoom range from 5.8° to 47.9°.
• Durable connections: TRUE1 compatible power input/output ports, IP65-rated DMX and TCP/IP ports.
• Ground or hanging use: Easily mountable on truss with Omega mounting bracket or can be ground-mounted for various light angles.

Technical Specifications

Optical

• Light Source: 16 45W RGBW LEDs, 50,000-hour lifespan.
• Color Temperature: 6122 K (calibrated white), CRI: 61.6.
• Beam Angle: 5.8° - 30.4°, Single Cell 4° - 29.9°.
• Field Angle: 8.9° - 42.2°, Single Cell 5.4° - 42.3°.
• Zoom Range: 5.8° - 47.9°, Single Cell 4° - 45.5°.
• Intensity (5 m): 5.7° - 27,415 lux, 43.3° - 1,294 lux.
• PWM Options: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz.

Dynamic Effects

• Tilt: 200° (60°, 180°, 200° tilt increments).
• Dimmer and Zoom: Electronic.
• Strobe Rate: 0-20 Hz.
• Dim Modes: 2, Dim Curves: 4.

Physical

• Dimensions: 1000 x 139 x 273 mm (39.37 x 5.47 x 10.75 in).
• Weight: 20.7 kg (45.6 lb).
• Body Material: Aluminum alloy, impact-resistant flame-retardant polymer.

Connections

• Power: Seetronic Powerkon IP65 input/output ports.
• Data: IP65-rated 5-pin DMX and RJ45 connectors.
• Cable Length: 1.5 m (5 ft).

Electrical

• Input Voltage: 100-240 VAC, 50/60 Hz.
• Power and Current: 790 W, 6.60 A @ 120 V, 60 Hz.

Certifications and Operating Conditions

• Certifications: CE, MET, FCC.
• IP Rating: IP65 (temporary outdoor/wet use).
• Operating Temperature: -20°C to 45°C (-4°F to 113°F).

Package Contents

• COLORado PXL Bar 16
• Seetronic Powerkon IP65 connection cable
• 2 Omega mounting brackets and hardware

Optional Accessories

• Clamps
• Neutrik powerCON and etherCON cables
• DMX Cables
• Upload_08 software uploader
• Carrying cases
