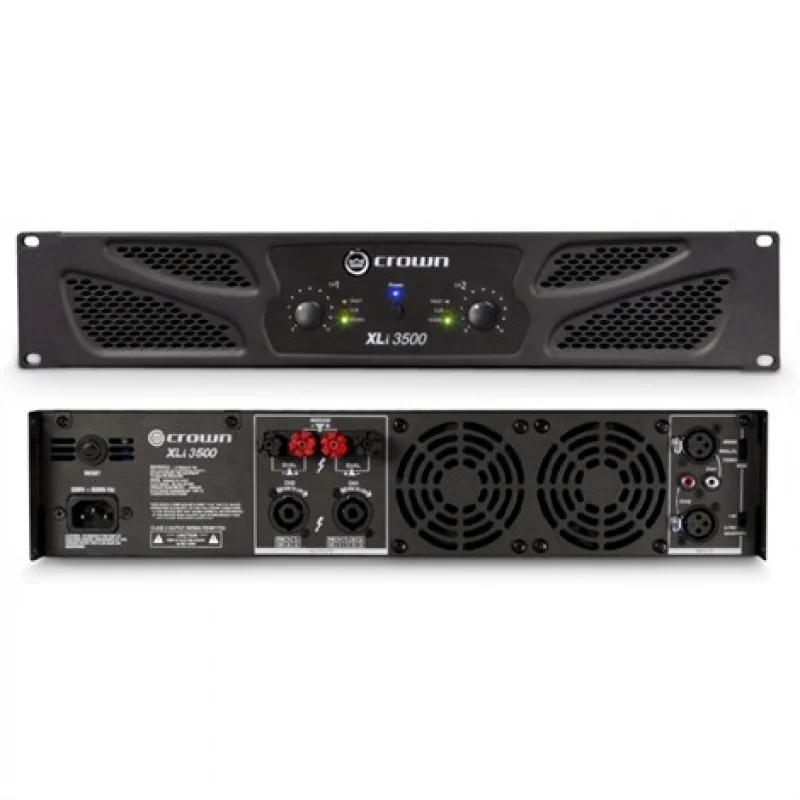

Crown XLi3500 Power Amplifier Specifications
- Channels: 2
- Guaranteed Minimum Power:
- 4 ohm stereo (per channel): 1350 watts
- 8 ohm stereo (per channel): 1000 watts
- 8 ohm bridge mono: 2700 watts
- Sensitivity (full rated power at 8 ohms): 0.775V or 1.4V
- Signal to Noise Ratio (below rated power 20Hz to 20kHz, A-Weighted): > 100 dB
- Total Harmonic Distortion (THD) (20Hz - 20kHz): < 0.5%
- Inter Modulation Distortion (60Hz and 7kHz at 4:1 from full rated output to -40 dB): = / < 0.35%
- Frequency Response (at 1W, 20Hz - 20kHz): 0 dB, -1 dB
- Crosstalk (below rated power):
- at 1kHz: -75 dB
- at 20kHz: - 59 dB
- Damping Factor (from 10Hz to 400Hz, 8 ohms): > 200
- AC Line Voltage and Frequency Configurations (± 10%):
- 120VAC 60Hz
- 220VAC 50/60Hz
- 230-240VAC 50/60Hz
- Dimensions (H x W x D): 3.5 x 19 x 14.4 inches (89 x 482 x 366mm)
- Weight: 43.0 lb (19.5 kg)
