Technical Data

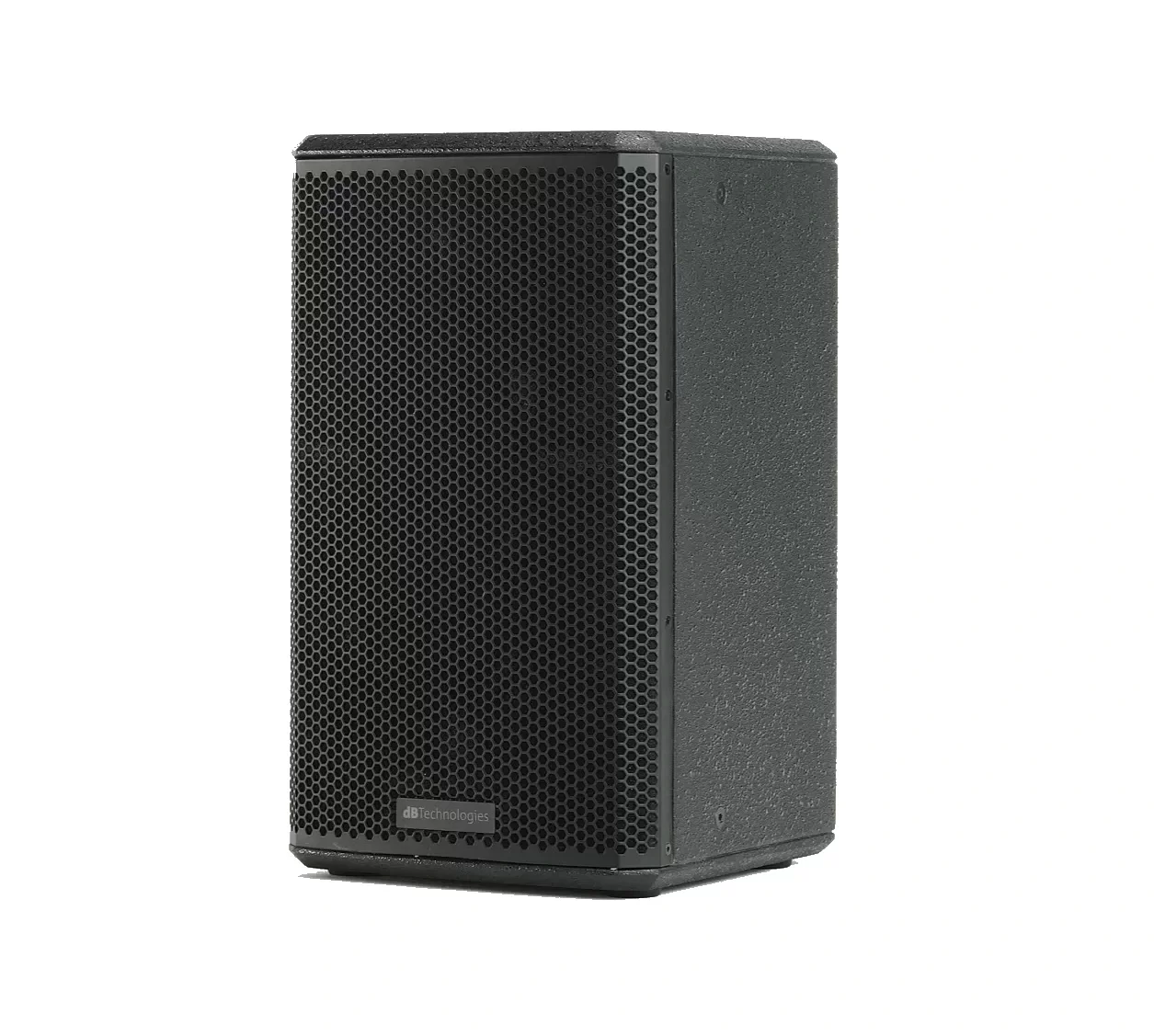

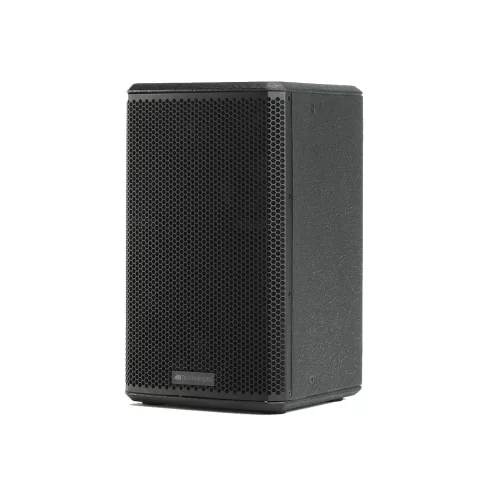

Speaker Type2-Way Passive Speaker
Acoustical data
Peak Power600 W
Impedance8 Ohms
Frequency Response [- 10 dB]73- 19.000 Hz
Max SPL125 dB
HF1 “, 1" v.c.
Directivity90x70 °
HornRotatable
LF10“, 1.5" v.c.
Input
Signal Input1x Speakon (Pin 1+=+) (Pin 1-=-)
Signal Output1x Speakon (Pin 1+=+) (Pin 1-=-)
Mechanics
HousingPlywood
Pole Mount36 mm

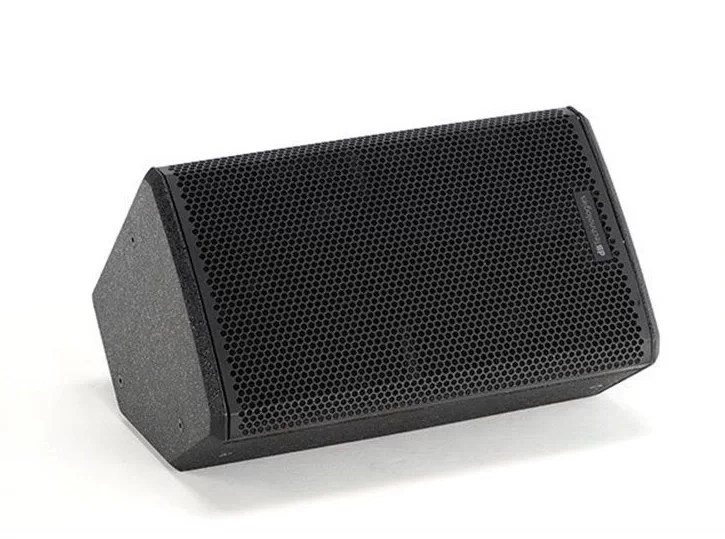

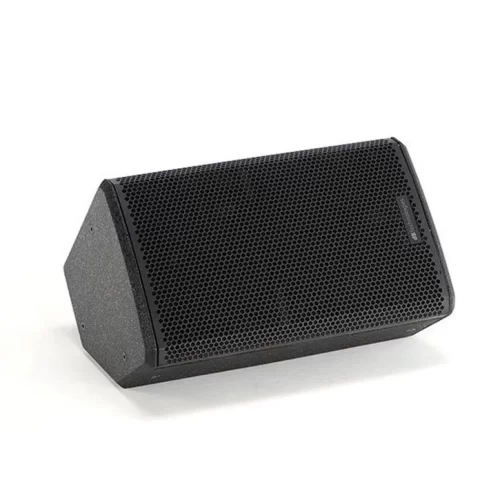

Angle UpMonitor use 40°
Rigging Points12 x M8
Handles1 on back side
Width300 mm (11.81 in)
Height496 mm (19.52 in)
Depth298 mm (11.73 in)
Weight9.3 kg (20.5 lbs)
