Technical Data

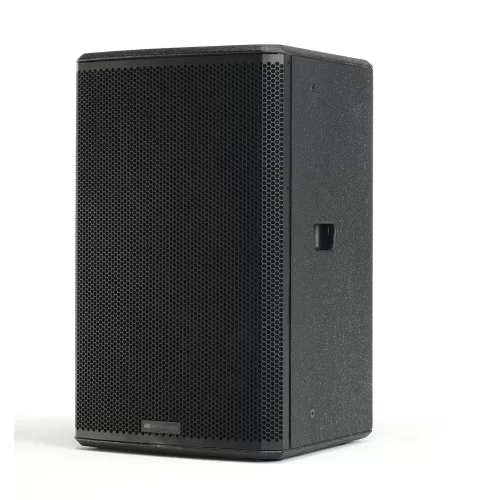

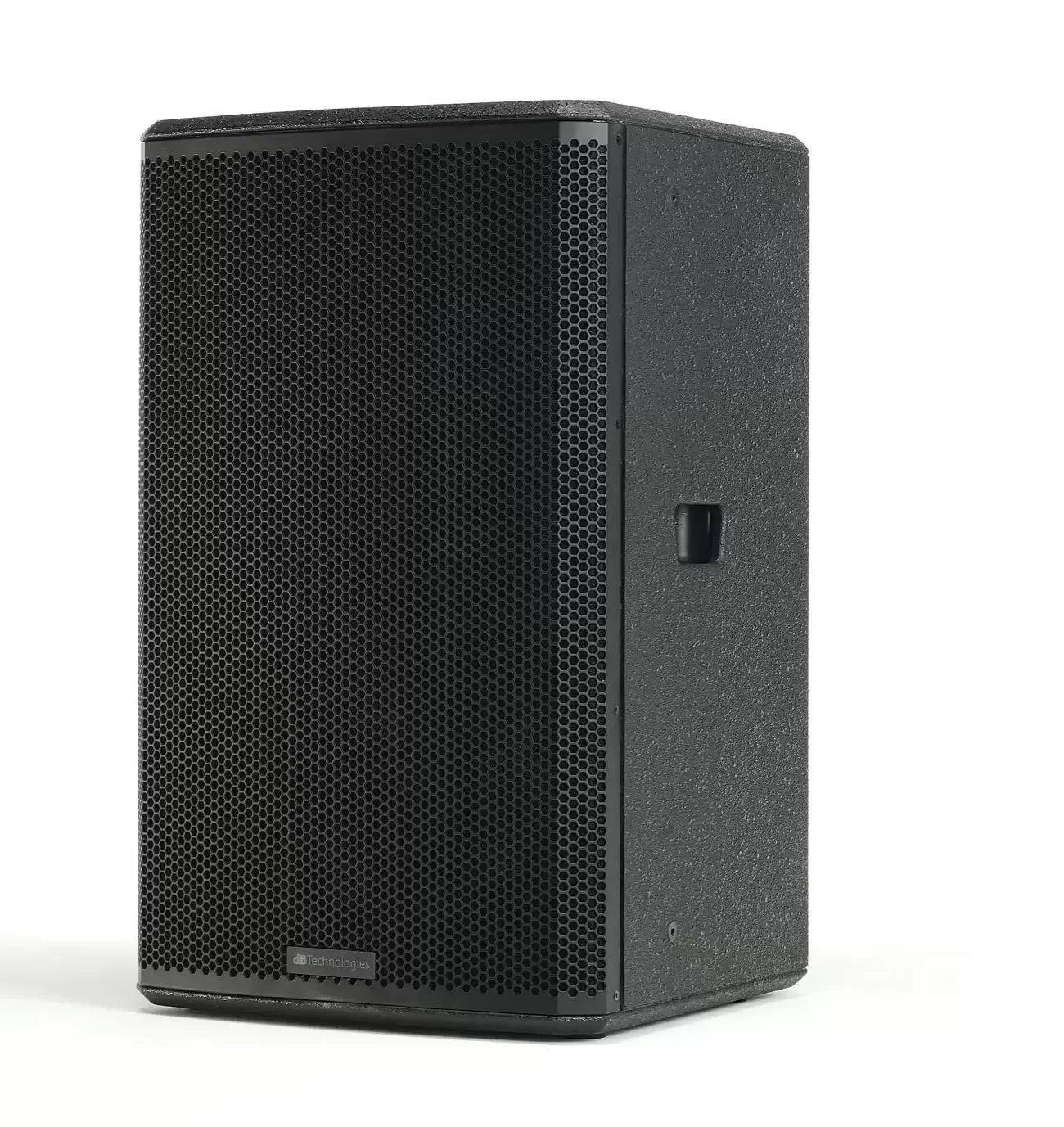

Speaker Type2-Way Passive Speaker
Acoustical data
Peak Power800 W
Impedance8 Ohms
Frequency Response [- 10 dB]65- 21.000 Hz
Max SPL127 dB
HF1 “, 1.35" v.c.
Directivity90x60°
HornRotatable
LF12“, 2" v.c.
Input
Signal Input1x Speakon (Pin 1+=+) (Pin 1-=-)
Signal Output1x Speakon (Pin 1+=+) (Pin 1-=-)
Mechanics
HousingPlywood
Pole Mount36 mm
Angle UpMonitor use 40°
Rigging Points12 x M8
Handles2 (1X side)
Width360 mm (14.17 in)
Height610 mm (24 in)
Depth360 mm (14.17 in)
Weight15.1 kg (33.2 lbs)
