Technical Data

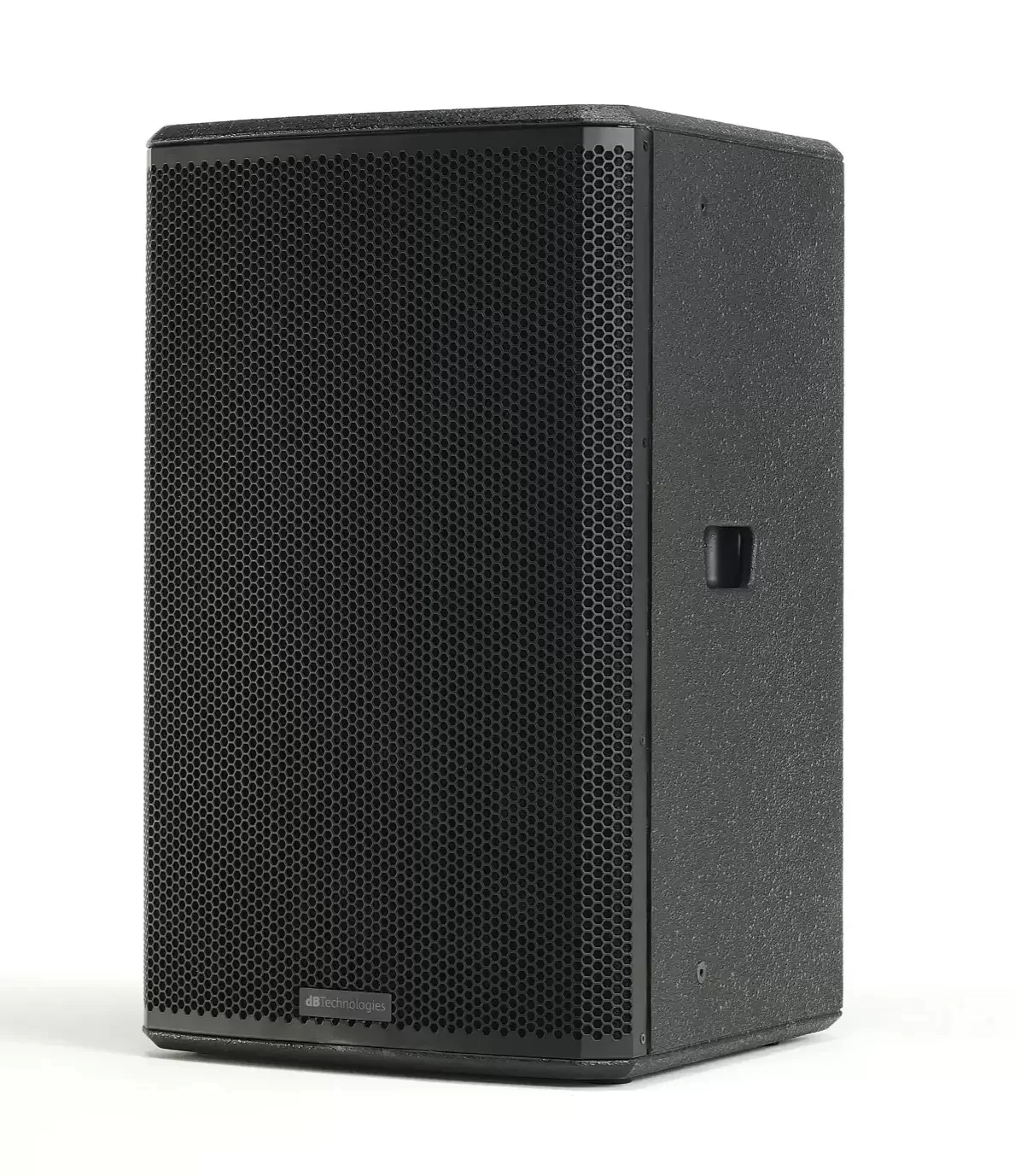

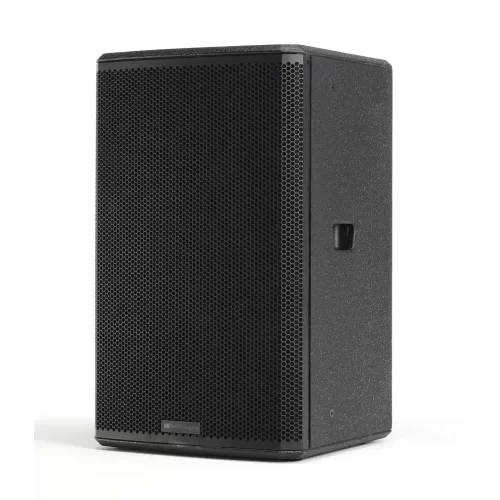

Speaker Type2-Way Passive Speaker
Acoustical data
Peak Power800 W
Impedance8 Ohms
Frequency Response [- 10 dB]58- 21.000 Hz
Max SPL129 dB
HF1 “, 1.35" v.c.
Directivity90x60°
HornRotatable
LF15“, 2.5" v.c.
Input
Signal Input1x Speakon (Pin 1+=+) (Pin 1-=-)
Signal Output1x Speakon (Pin 1+=+) (Pin 1-=-)
Mechanics
HousingPlywood
Pole Mount36 mm
Angle UpMonitor use 40°
Rigging Points12 x M8
Handles2 (1X side)
Width420 mm (16.53 in)
Height680 mm (26.77 in)
Depth430 mm (16.92 in)
Weight19.7 kg (43.4 lbs)
