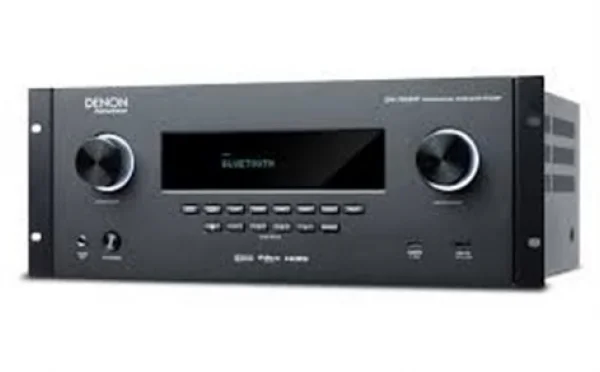

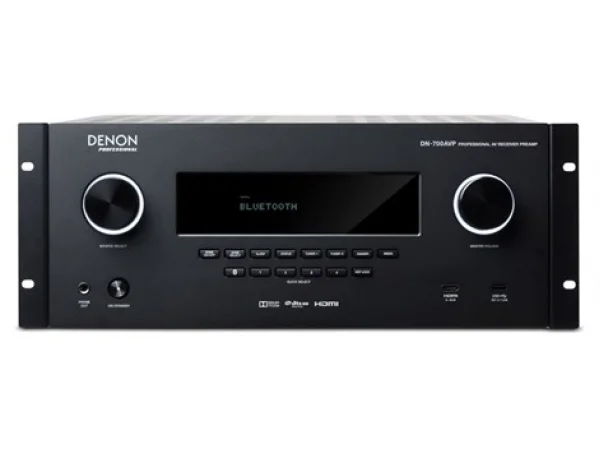

Denon DN-700 AVPSurround Sound preamp

The product is out of stock.
Fast Shipping
  • Six HDMI inputs and one output
  • Component & composite video inputs and outputs
  • Dolby TrueHD / Dolby Digital Plus / Dolby Digital/ DTS-HD Master Audio/ DTS ES
  • XLR balanced 7.1 preamp outputs
  • RCA unbalanced 7.1 preamp outputs
  • Bluetooth 4.0
  • FM tuner with 20-channel memory
  • HDCP compatible and network streaming via DLNA
  • Bluetooth Specifications
    • Version: 4.0
    • Profile: A2DP, AVRCP
    • Maximum Transmission Power: -6dB ± 4dB, Class 2
    • Frequency: 2.4GHz - 2.48 GHz
  • FM Tuner
    • Frequency Range: 87.5 MHz - 108 MHz
  • USB
    • File System: FAT 16/32
    • Media Type: USB Flash Drive
  • Audio Specifications
    • Preamp Outputs: 7.1 Surround Sound
    • Level: -10dB or +4db
    • Frequency Response: 10Hz - 20kHz ± 1.0dB
    • Dynamic Range: 10kHz - 20kHz, A-weighted >90dB
    • Signal-to-Noise: 1 kHz, 0 dB, A-weighted >90dB
    • Distortion: <0.006%
    • T.H.D: 1 kHz, 0 dB, A-weighted <0.01%
  • Supported Surround Formats: Dolby TrueHD, Dolby Digital Plus, Dolby Digital, DTS-HD Master Audio, DTS ES
  • Supported File Types: WMA, MP3, WAV, MPEG-4 AAC, and FLAC files
  • Analog Input
    • Unbalanced RCA: Nominal level -10 dBV (at full scale: -16dB)
    • Minimum Input Level: -19 dBV or higher
    • Input Impedance: 47 kΩ ± 10%, unbalanced
  • Digital Inputs
    • Coaxial: RCA (IEC-60958 Type II)
    • Optical: Toslink (IEC-60958 Type II)
  • Composite Video
    • Input/Output Level: 1V/p-p
    • Impedance: 75 Ω
    • Frequency Response: 5 Hz - 10 MHz
  • Component Video
    • Input Level:
      • Y signal, 1Vp-p
      • Pb/Cb signal, 0.7Vp-p
      • Pr/Cr signal, 0.7Vp-p
  • Impedance
    • Y signal, 75 Ω
    • Pb/Cb signal, 75 Ω
    • Pr/Cr signal, 75 Ω
  • Frequency Response: 5 Hz - 60 MHz
  • HDMI: Version 1.4b (3D and ARC supported)
  • Power
    • Connection: IEC
    • Input Voltage: 100 - 120V / 220-240V
    • Consumption: 30W
    • Operating Temperature: 41° F - 113° F
    • Operating Humidity: 25 - 85%, non-condensing
  • Dimensions: 19.00"w x 13.66"d x 6.93"h (483 x 347 x 176mm)
  • Weight: 19.1 lbs (8.66kg)
