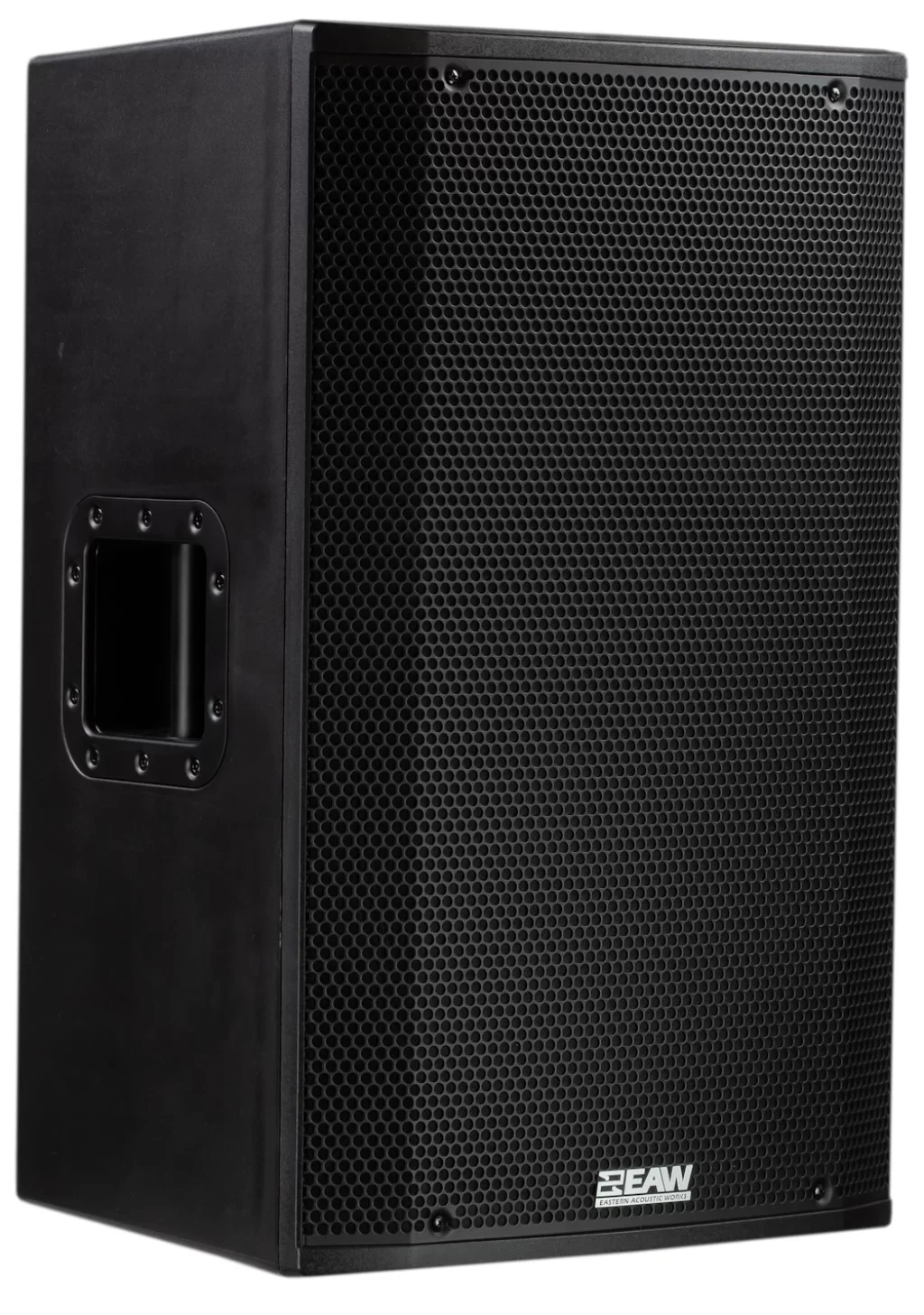

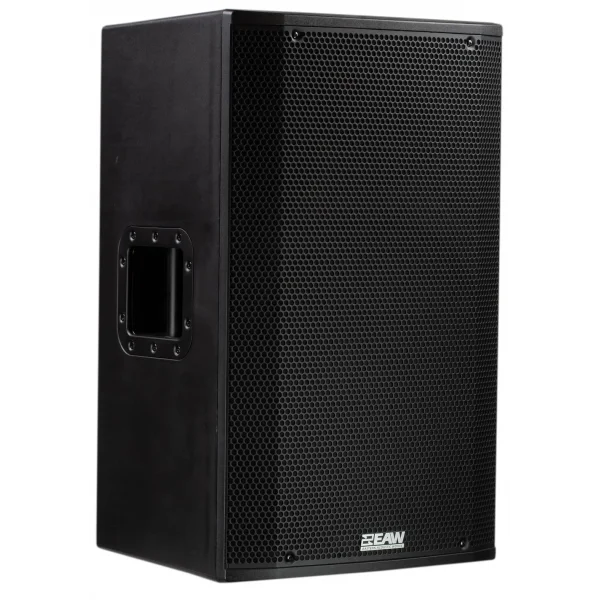

The EAW LA153 is a high-performance 2-way active speaker produced by Eastern Acoustic Works. This model is an ideal solution for professional sound applications with its versatile design, high sound pressure capacity, and wide frequency response. It delivers superior sound quality in stage applications, fixed installations, and live music events thanks to its powerful amplification and built-in DSP technologies.
General Features
- Model: EAW LA153
- Type: 2-way Active Speaker
- Applications:
- Live music performances
- Club and bar sound systems
- Fixed installations
- Can be used as a stage monitor or main speaker
Technical Details
Acoustic Performance
- Frequency Response: 42 Hz – 20 kHz
- Maximum SPL: 137 dB
- Dispersion Angle: 90° horizontal x 45° vertical
Amplification and DSP
- Amplifier Power: 1600W total
- LF (Low Frequency): 1200W
- HF (High Frequency): 400W
- Built-in DSP:
- EAW Focusing™ and DynO™ technologies optimize the system's acoustic performance.
Drivers
- Low Frequency (LF): 15-inch woofer
- High Frequency (HF): 1.4-inch compression driver
Connections
- Inputs: Electronic balanced XLR/TRS combo
- Outputs: Electronic balanced XLR loop (for daisy-chaining connections)
- Power Connection: IEC AC input
Physical Features
- Dimensions:
- Height: 720 mm
- Width: 460 mm
- Depth: 450 mm
- Weight: 28.5 kg
- Cabinet Material:
- Trapezoidal design
- Black durable paint finish
Advantages
- High Performance: Effective sound distribution in large areas with a 137 dB SPL capacity.
- Built-in DSP Technology: Advanced software solutions from EAW for optimizing acoustic quality.
- Durable Construction: Long-lasting material design suitable for challenging conditions.
- Flexible Usage: Design suitable for various mounting and installation options.
EAW LA153 offers a reliable solution for professional sound projects requiring high sound quality and durability in all applications.
