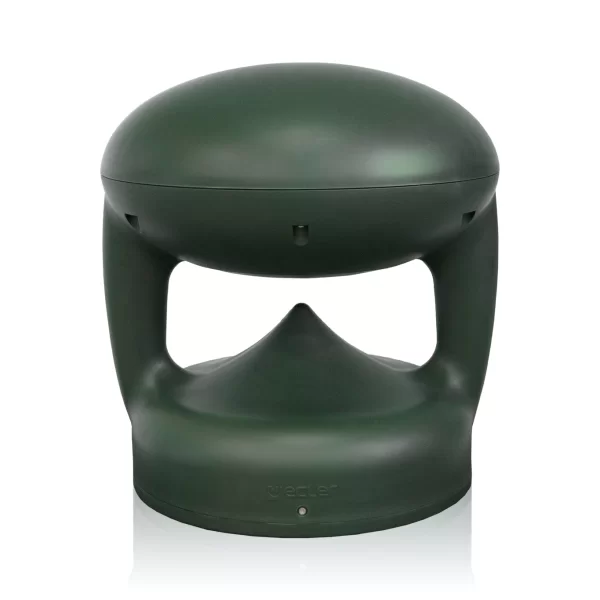

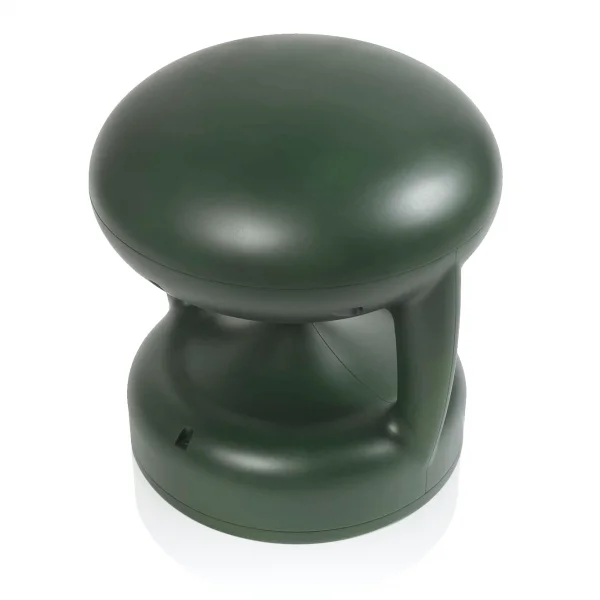

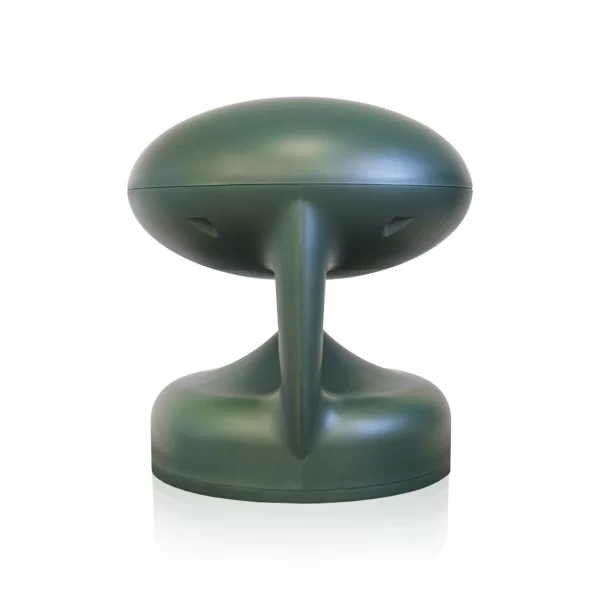

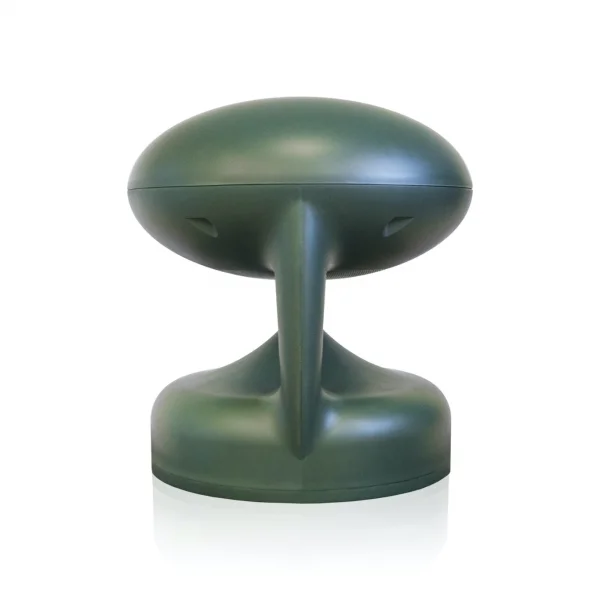

IG108 is an in-ground weatherproof loudspeaker (IP65) with an omni-directional horizontal dispersion pattern (360º). It is ideal for music and message applications in outdoor areas, where a reliable yet high quality sound system is required.
Features
IP65 outdoor rated loudspeaker
8 ohm and 70/100 V (7,5, 15, 30 or 60 W tap switch)

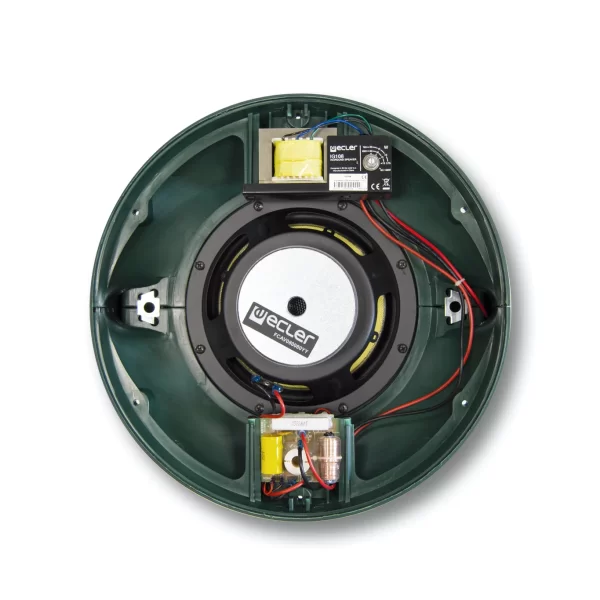

8” Kevlar woofer and 1” ACCW silk dome tweeter
Frequency response (-10 dB): 50 Hz - 23 kHz
Omni directional horizontal coverage pattern (a circular area with an average radius of 4 to 6 meters can be covered by one unit, in a standard application)
Available in green (RAL 6005)
System
Effective Freq. Range 50 Hz-23 kHz (-10dB)
Coverage angle 360°x229° (HxV)
Power handling 100 W RMS / 400 W Peak
Sensitivity 92 dB (1W/1m)
Maximum SPL 112 dB continuous / 118 dB peak
Power options
100V: 60W / 30W / 15W / 7,5W / 8Ω
70V: 30W / 15W / 7,5W / 3,75W / 8Ω
Recommended amplifier power 200 W RMS
Transducers Ways 2-ways
Low frequency driver 8" Kevlar woofer
High frecuency driver 1" ACCW silk dome tweeter
Nominal impedance 8Ω
Physical
Power type selector Tap switch

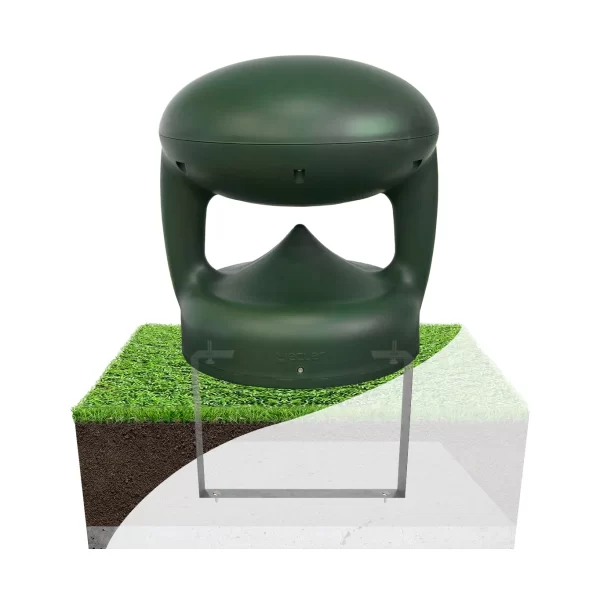

Installation options In-ground
Environmental IP65 rated
Mounting system Cabinet
Operating temperature Min: -40°C ; -40°F Max: 70°C ; 148°F
Operating humidity <85% HR
Storage temperature Min: -40°C ; -40°F Max: 70°C ; 148°F
Storage humidity <90% HR

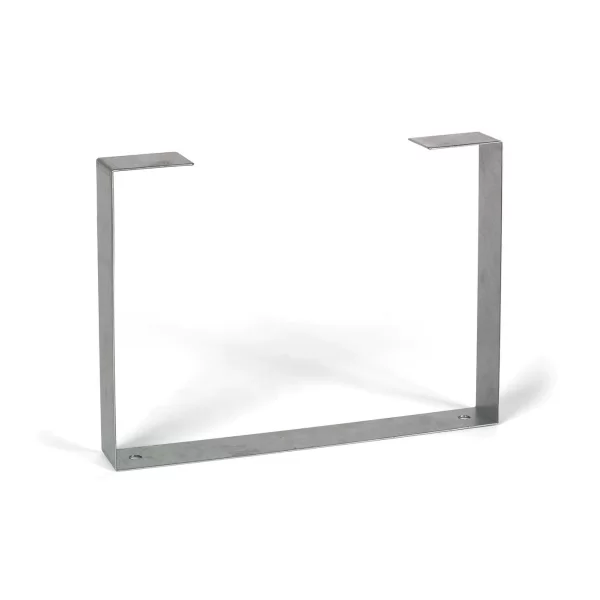

Included accessories Security ground bracket
Finished colour Green (RAL 6005)
Dimensions 360 x 392.5 mm / 14.17"x15.95" (ØxD)
Weight 8.5 kg
Shipping dimensions
420 x 470 x 420 mm / 16.54 x 18.5 x 16.54 in. (WxHxD)
