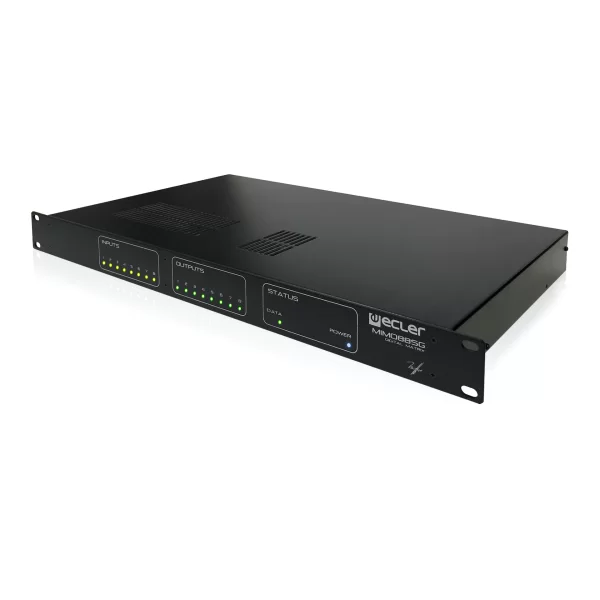

MIMO88SG (MIMO88 SINGLE) is an EclerNet digital audio device that keeps the heart and soul of the standard MIMO88, its main features and its audio quality, to become a simplified and cost-effective version of this acclaimed digital matrix.
- 8x8 digital matrix (not expandable)
- Fully programmable and controllable via EclerNet software
- UCP (User Control Panels) remote control system, compatible with WPNETTOUCH and third-partydevices, such as computers, tablets, smartphones, etc.
- TP-NET protocol compatible, for third-party control systems integration
- DSP processing: signal generator, delays, full parametric EQ filters at inputs and outputs,inputs noise gate, level, mute, phase, vu-meters, outputs compressor / limiter, paging and ducking(priority & overriding),virtual and physical paging stations management, presets save &recovery, scheduled events triggering, etc.
- FREQUENCY SHIFTER function to avoid acoustic feedback, available in 4 inputs
- WPNET4KV and WPNET8K compatible control panels (using specific retro-compatible Firmware).
SpecificationsDigital engineAudio converters- Sampling rate 48kHz
- Resolution 24bit AKM
- Latency <2.9ms
- Frequency response 5Hz to 24kHz (-3dB)
- Dynamic range AD:110dB, DA: 115dB
Analogue audio input ports - Number of input ports 8, Mic/Line
- Connection type Terminal block (symmetrical)
- Input sensitivity -50dBV to +10dBV in 0.5dB step
- Input impedanc Balanced, >4kΩ
- Max input level +27dBV = +30dBu
- THD+Noise @ 1kHz, 0dBV input (line) <0.004%
- THD+Noise @ 1kHz, -40dBV input (mic.) <0.008%
- CMRR 65dB typ.
- Phantom power +42VDC, 5mA max. software switched

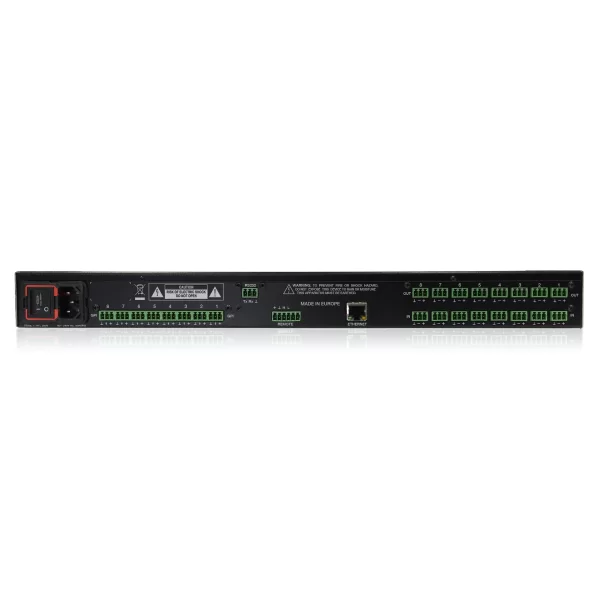

Analogue audio output ports - Number of output ports 8, Line
- Connection type Terminal block (symmetrical)
- Max output level +18dBV = +21dBu
- Crosstalk Better than 90dB (100dB typ.)
Connectivity
Ethernet Base-Tx 10/100Mb Auto X-Over CAT5 up to 100m.
Serial port RS-232
Programing and control- EclerNet manager (software) from v3.03r4 version, TPNET protocol, UCP control panels
- Remote control connections
- Digital remote controls
- Remote Bus: Over twisted pairs; up to 1km (see specific specs.)
- GPIs 8, from 0 to 10VDC or TTL level
Real-time clock- Retention time100 hours aprox. (ambient temperature dependant)
- Accuracy ±1 minute / month
Electrical- Secondary power supply
- +12VDC, 1.2A. max. (short circuit protected)
- AC mains requirement 90-264VAC @ 47-63Hz
- AC mains connector
- IEC mains socket connector
- Power consumption 45VA
Physical- Operating temperature Min: -10°C ; 14°F , Max: 40°C ; 104°F
- Operating humidity <85% HR
- Storage temperature Min: -10°C ; 14°F, Max: 40°C ; 104°F
- Storage humidity <90% HR
- Installation options 19" rack format (1RU)
- Optional accessories
- WPa series control panels, WPTOUCH, eMPAGE
- Dimensions 482,6 x 44 x 266,5 mm / 19" x 1.73" x 10.5"
- Weight 3.5 kg
- Shipping dimensions 590 x 70 x 380 mm / 23.23 x 2.76 x 14.96 in. (WxHxD)
