Amplifier Power | 1250 Watts (RMS) 2500 Watts (Program) |
Chassis Size | 381 mm (15") |
Color | Black, white |

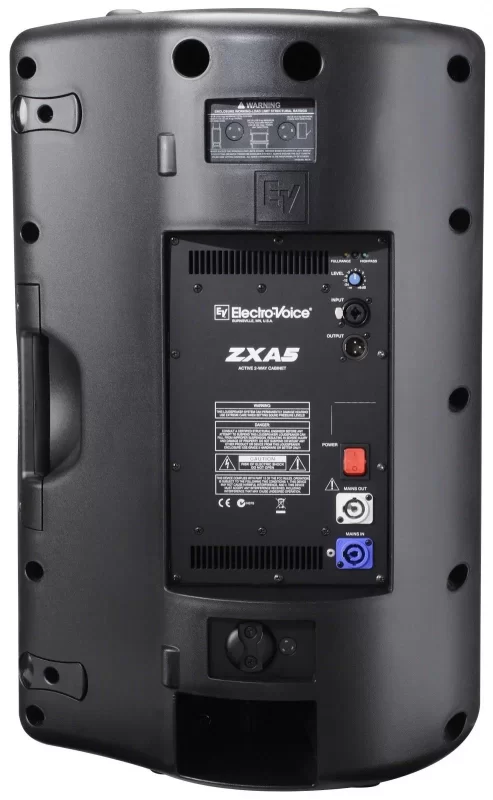

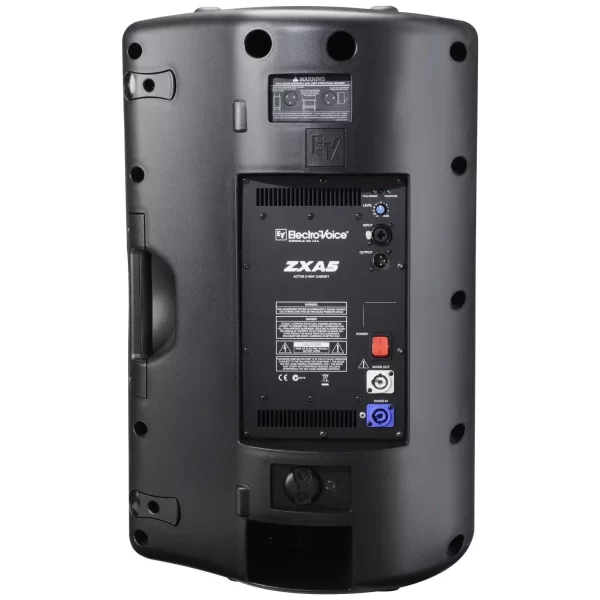

Input Connections | XLR |
Power Requirement | 120V: 95V - 132V, 50 - 60 Hz, 0.6A 230V:190V - 264V, 50 - 60 Hz, 0.4A |
Speaker Type | Full-range, Powered Monitors, Powered Monitors, Powered Speakers, Two-Way, Wedges |
Frequency Response (-3 dB) | 58 - 18000 Hz |
Frequency Response (-10 dB) | 50 - 20000 Hz |
Recommended High-Pass Frequency | 100 Hz User Selectable |
Max. SPL/1m (calc) | 133 dB Half Space |
Coverage (Nominal -6 dB) H | 90/60 ° |
Coverage (Nominal -6 dB) V | 50/60 ° |
LF Transducer | 15-inch DVX3150A |
HF Transducer | 2-inch ND2 |
Crossover Frequency | 1500 Hz |
Enclosure Material | Polypropylene |
Flying | Yes |
Outdoor | No |
Height | 692 mm (27.24") |
Width | 446 mm (17.56") |
Depth | 411 mm (16.18") |
Weight Net | 22.9 kg (50.49 lbs) |
