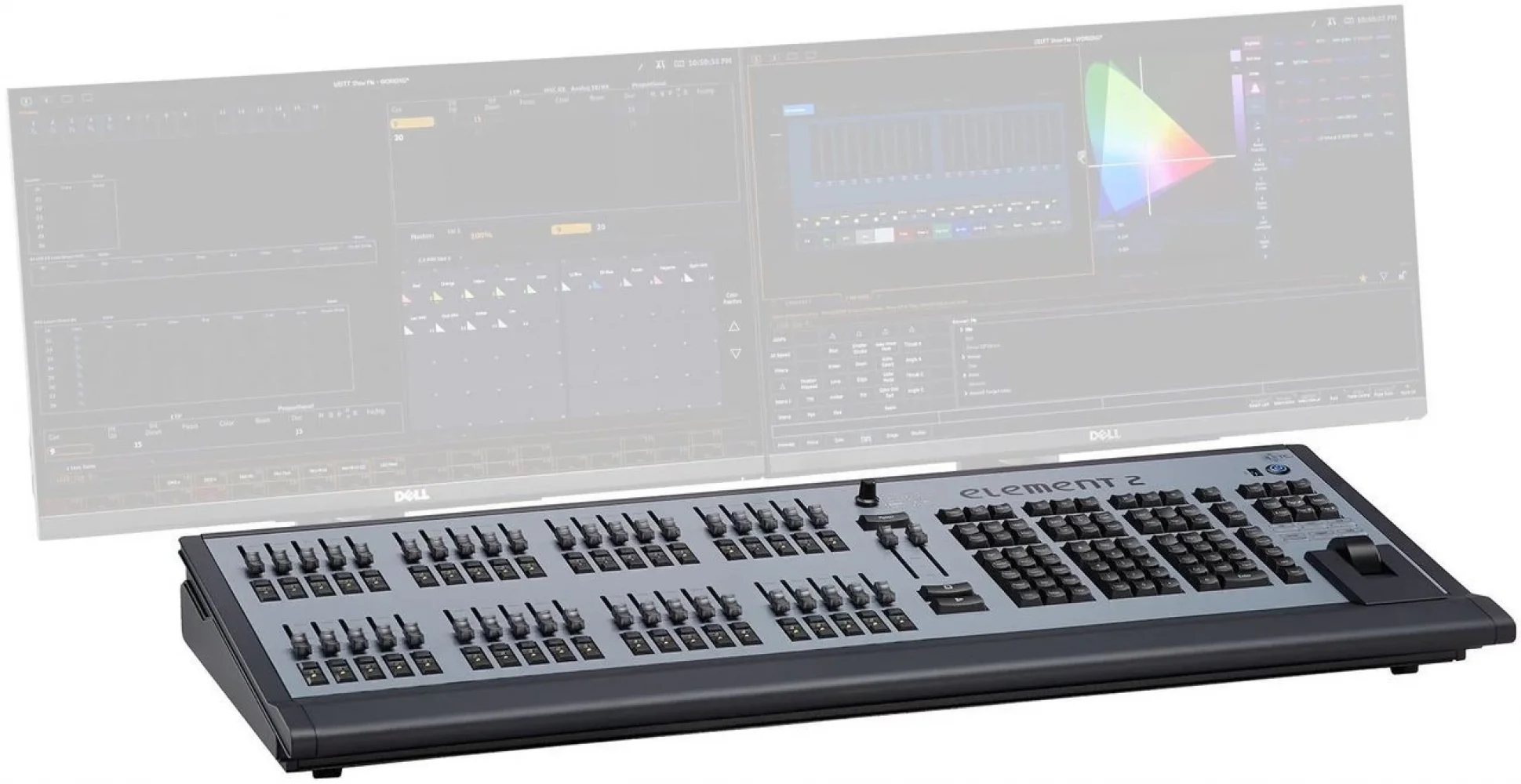

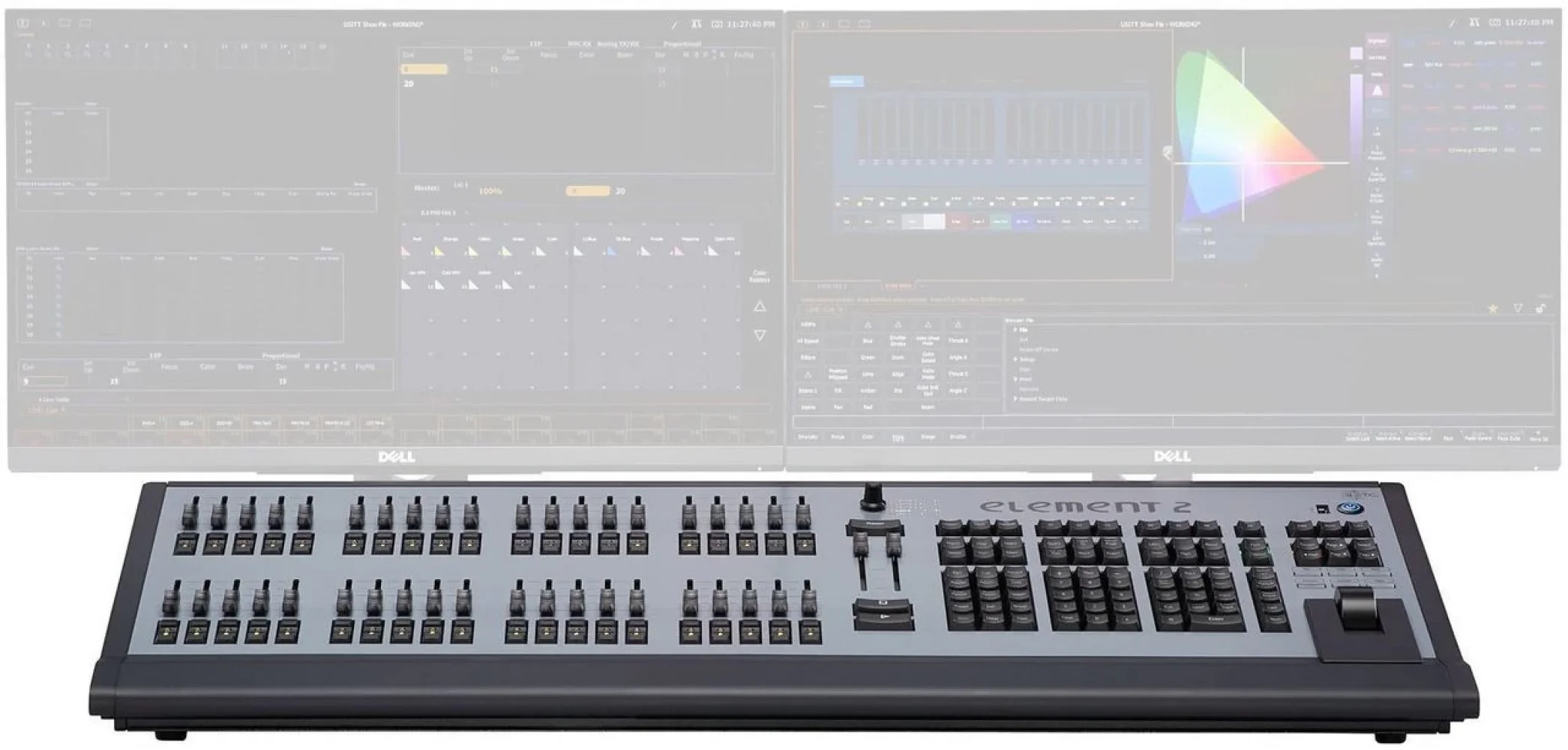

ETC Element 2 Lighting Control Console 1024 Channels

The Element 2 console adapts the award-winning Eos family control platform for venues with modest rigs and maximum hands-on fader control needs. Affordable and easy to use, Element 2 brings the fundamentals of lighting control to the forefront while allowing access to a wealth of advanced control features below the surface. Simply record cues and fade times into Element's cue list for basic playback, or use effects, palettes, cue parts, discrete timing and follow times to create intricate lighting looks and transitions.

Need a setup that can be run by students or volunteers? Customizable Magic Sheets let you create a simple topographical or abstract interface to quickly control your rig from a touchscreen monitor. Use the Element 2 console's pageable, LTP (Latest Takes Precedence) faders to directly control your channels, or flip a switch and use them to control submasters, IFCB palettes, presets, manual timing and global effects masters and more. Element 2 provides the same generous programming keypad as the larger desks in the Eos family, so you can move between consoles with ease.

Element 2 Console Features

• 2 DMX universes or 12 DMX universes with no co-processing
• Dedicated master playback fader pair
• 40 faders x 100 pages – Configurable between channel, submaster, palette/preset, timing, and effect master
• Supports two external high resolution monitors or touchscreens
• 4 DMX/RDM outputs
• 2 RJ45 outputs (sACN, ETCNet2, Net3, ArtNet, and Avab UDP)
• 5 USB Ports, plus Contact Closure and MIDI connections

Eos Family Features (Element 2 Specific)

• Show file compatibility with the entire Eos Family, from the Eos Ti down to the Element 2² and ETCnomad.
• Three user-definable workspaces per monitor, each with discrete split-screen controls, frame management, and snapshots.
• Custom-design your control interface using Magic Sheets, with topographical or abstract layouts. Full interaction with the command line allows command instructions - from the simplest and most immediate to the most complex - accessed from a mouse or single- or multi-touch displays.
• Configure and program a pixel-map layout, using integral or custom-designed content.
• Award-winning color controls, including six Color Pickers and a Gel Picker for color mixing.
• Client/server networking and synchronized backup with another Element, Element 2, or ETCnomad
• Client and Offline programming on PC³ and Mac³ via ETCnomad
• 99 discrete online users with partitioned control
• 32,768 Control Channels (Fixtures)⁴
• 10,000 Cues and 1 Cue List
• 999 Submasters
• 1,000 each of Presets, Palettes, Groups, Effects, Snapshots, Curves, and Color Paths
• 99,999 Macros

Technicial Specifications

• 1,024 or 6,144 Outputs
• 32,768 Control Channels (mapped to any number from 1 to 99,999)
• 100,000 Cues
• One Cue List
• 999 Submasters
• 100 Fader Pages
• 4 x 10,000 Palettes (Intensity, Focus, Color, Beam)
• 10,000 Presets (all palette)
• 10,000 Groups
• 10,000 Effects (relative, absolute or step)
• 99,999 Macros
• 10,000 Snapshots
• 10,000 Curves
• 10,000 Color Paths
• 99 discrete users
• Partitioned control
• Show import from Obsession, Express™, Expression®, Emphasis®, Congo®, Cobalt®, Grand MA 1, Grand MA 2, Safari and Strand 500/300 Series
• Augment3d 3D programming and visualization environment, with support for augmented reality features via connected phone or tablet app
• Magic Sheets suite for customized user programming and displays
• Virtual Media Server function for pixel-mapping effects, images, and animations
• Support for multiple languages, including English, German, Spanish, French, Italian, Japanese, Korean, Russian, and Chinese (Simplified and Traditional)

Hardware/Interfaces

• Supports two external display port monitors (1920x1080 minimum, 3840x2160 maximum), with optional single-touch or multi-touch screen control and DDC/IC support
• Forty 45mm standard faders, 100 10-fader pages for configurable faders, for channel, submaster and palette/preset, timing and effect rate/speed playback control

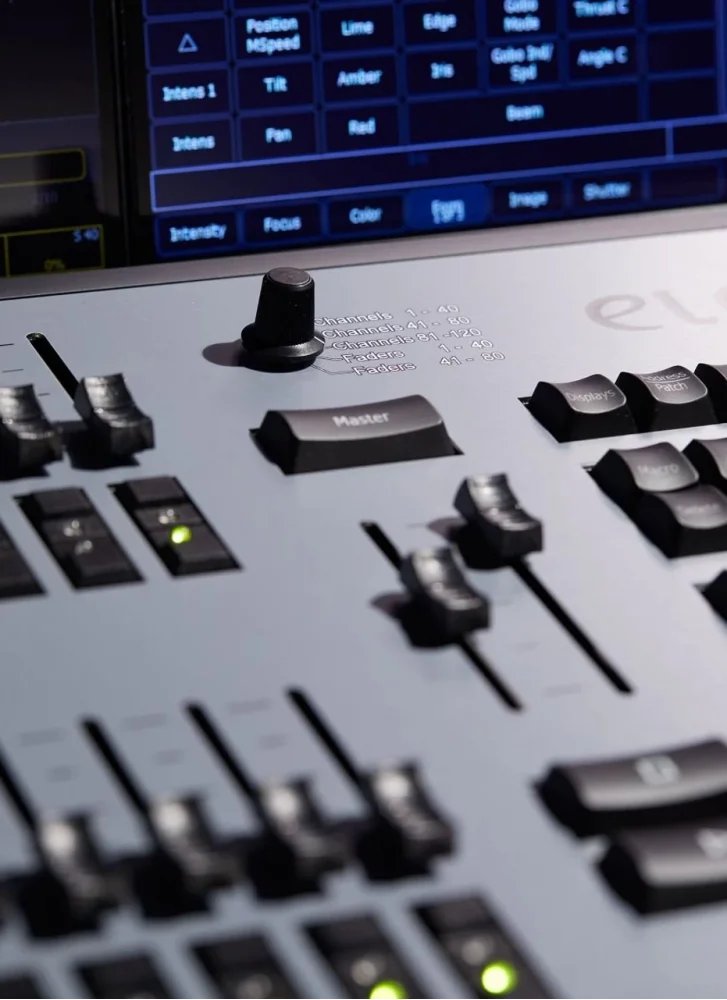

• Dedicated fader paging knob, with backlit selection labels
• Main Playback with two 45mm standard faders
• On-Demand moving light and LED virtual encoders on connected display monitor
• Dedicated high-resolution intensity level wheel

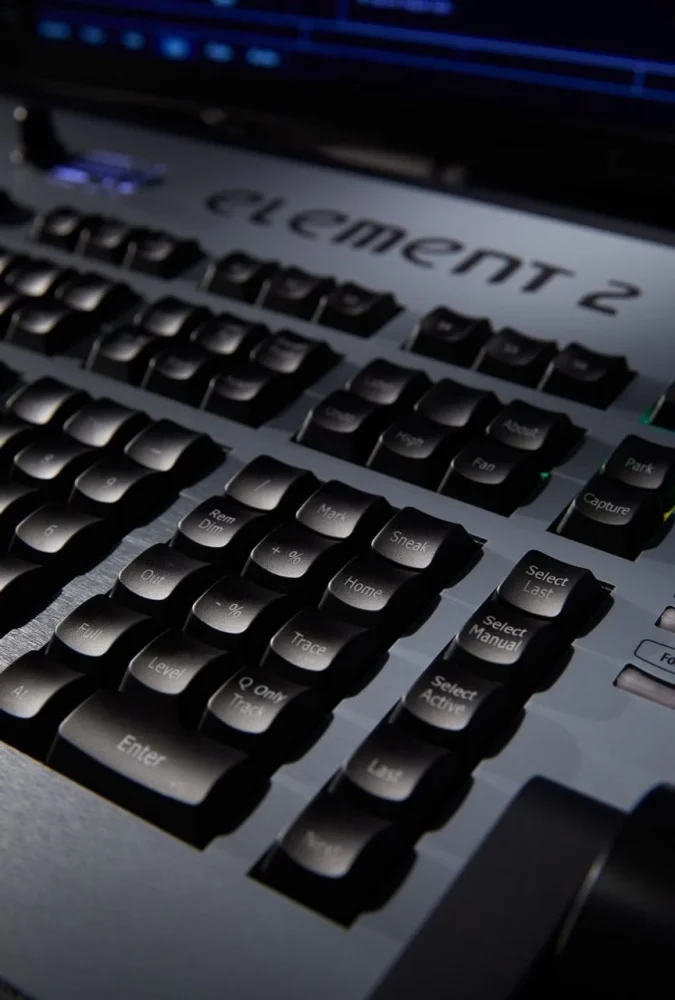

• Eos keypad
• Included USB keyboard
• Solid-state hard drive
• IEC power input (100-240 VAC at 50/60Hz), fused mains power switch, locking regionalized power cable included
• Two individually configurable Gigabit Ethernet ports, RJ45 connectors
• One 802.11ac WiFi Ethernet adapter (to be enabled with future software)
• Bluetooth 5.1 for connecting input accessories (to be enabled with future software)
• sACN and Art-Net network output protocols
• Four DMX-512 / RDM 5-pin XLR ports
• Contact closure triggers via D-Sub connector
• USB 3.1 ports, for flash drives, pointing devices, keyboards (5 USB-A ports, 2 USB-C ports)
• One Littlite XLR port
• One Kensington lock port
• Multiple MIDI and/or SMPTE timecode inputs, MIDI In and Out, Analog/Serial Inputs, OSC transmit/receive, UDP transmit/receive through network interface or Response Gateways

Physical

Element 2 Dimensions*

Element 2 Weights*

*Weight and dimensions typical

Ordering Information

Element 2

All models are available without wireless radios (WiFi and Bluetooth). Please contact ETC for ordering information.
* Add -US for Edison, -EU for Schuko/UK13A
† Initial upgrade sold in some markets as an alternative to 4331A1012

Element 2 Accessories

* Initial upgrade sold in some markets as an alternative to 4380A1134
† Add -US for Edison, -EU for Schuko/UK13A, -AZ for Australasian Type I

Shipping

ships with:

• One three-button scroll mouse and mousepad
• Alpha-numeric keyboard
• Locking regionalized IEC power cord
• Two active display port to DVI adapters
• Dust cover
• Augment3d AR target kit
