Features

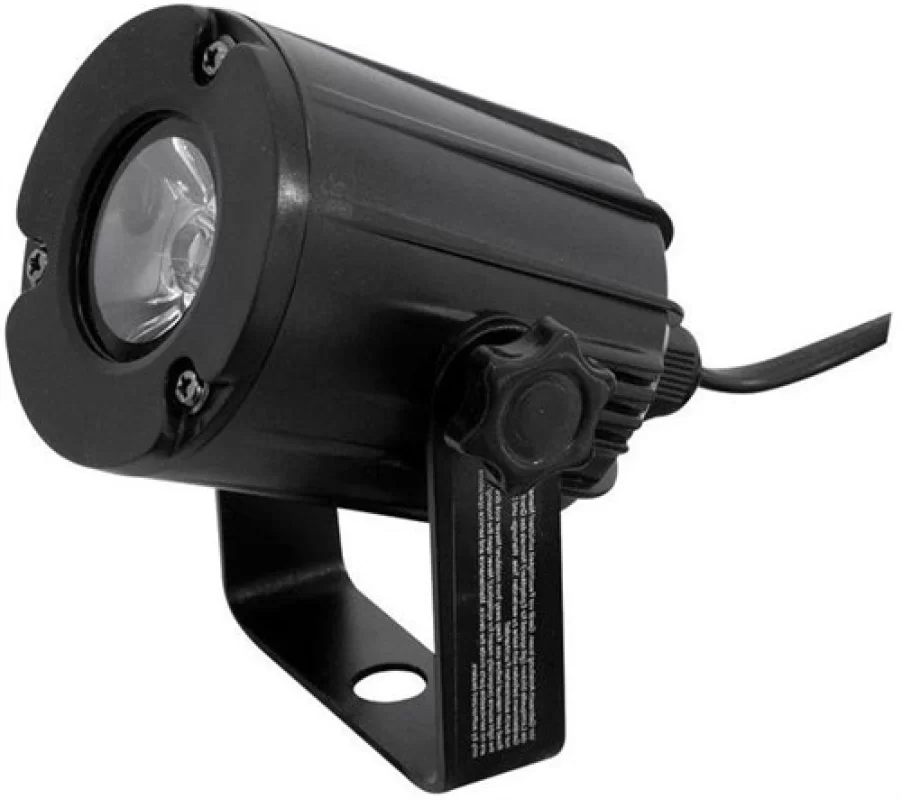

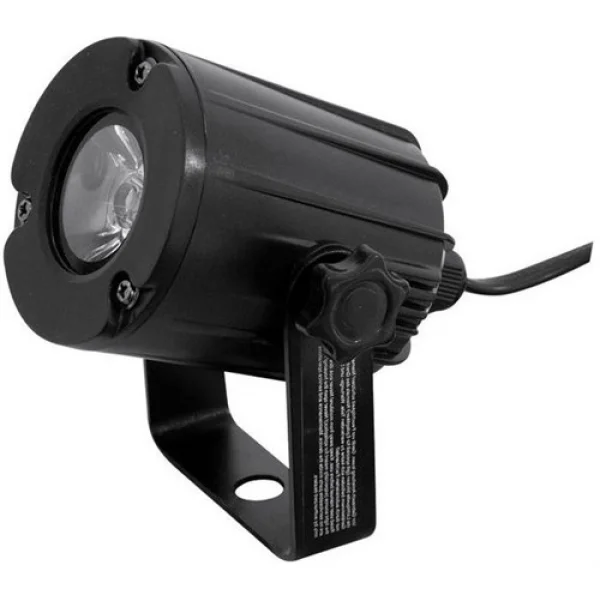

Narrow beam pinspot with 3 W cold white (CW) LED
- For illuminating e.g. mirror balls, entrance or counter areas or as basic illumination
- 1 powerful LED 3 W high-power cold white (CW)
- The device is cooled by passive convection cooling
- Control via plug and play
- With a beam angle of 6°
- With Mounting bracket
- Various versions available
- For application areas such as: Clubs/dancing school; Wedding/gala/events; Party room; restaurants, bars and hotels
- Silent operation
- Application possibility: Suspended; on stand
Package contents
- 1 x spotlight, 1 x user manual
Technical specifications| Power supply: | 230 V AC, 50 Hz |
| Power consumption: | 5 W |
| IP classification: | IP20 |
| Protection class: | Protection class II |
| Power connection: | Fixed power supply cord with Euro plug |
| Cable length: | Approx. 0,9 m |
| Lamp type: | LED lamp |
| LED type: | 1 x 3 W high-power cold white (CW) |
| Cooling: | Passive convection cooling |
| Control: | Plug and play |
| Beam angle: | 6° |
| Beam angle (1/2 peak): | 6° |
| Color temperature: | 6000K |
| Housing color: | Black |
| Attachment system: | Mounting bracket |
| Material: | Plastic |
| Dimensions: | Width: 9 cm
Depth: 10 cm
Height: 10 cm |
| Weight: | 230 g |
| Noise classification: | Class 0 (no noise at all) |
| Mounting bracket |
| Diameter mounting holes: | 1 x Ø10mm |
| Material: | Metal, 2 mm |
| Legal specifications |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
Packaging units| PU | EAN | Weight | Dimensions |
|---|
| 1 | 4026397656466 | 0,26 kg | 13cm x 8,5cm x 8,5cm |
| 20 | 4026397656473 | 5,70 kg | 45cm x 20cm x 28cm |
