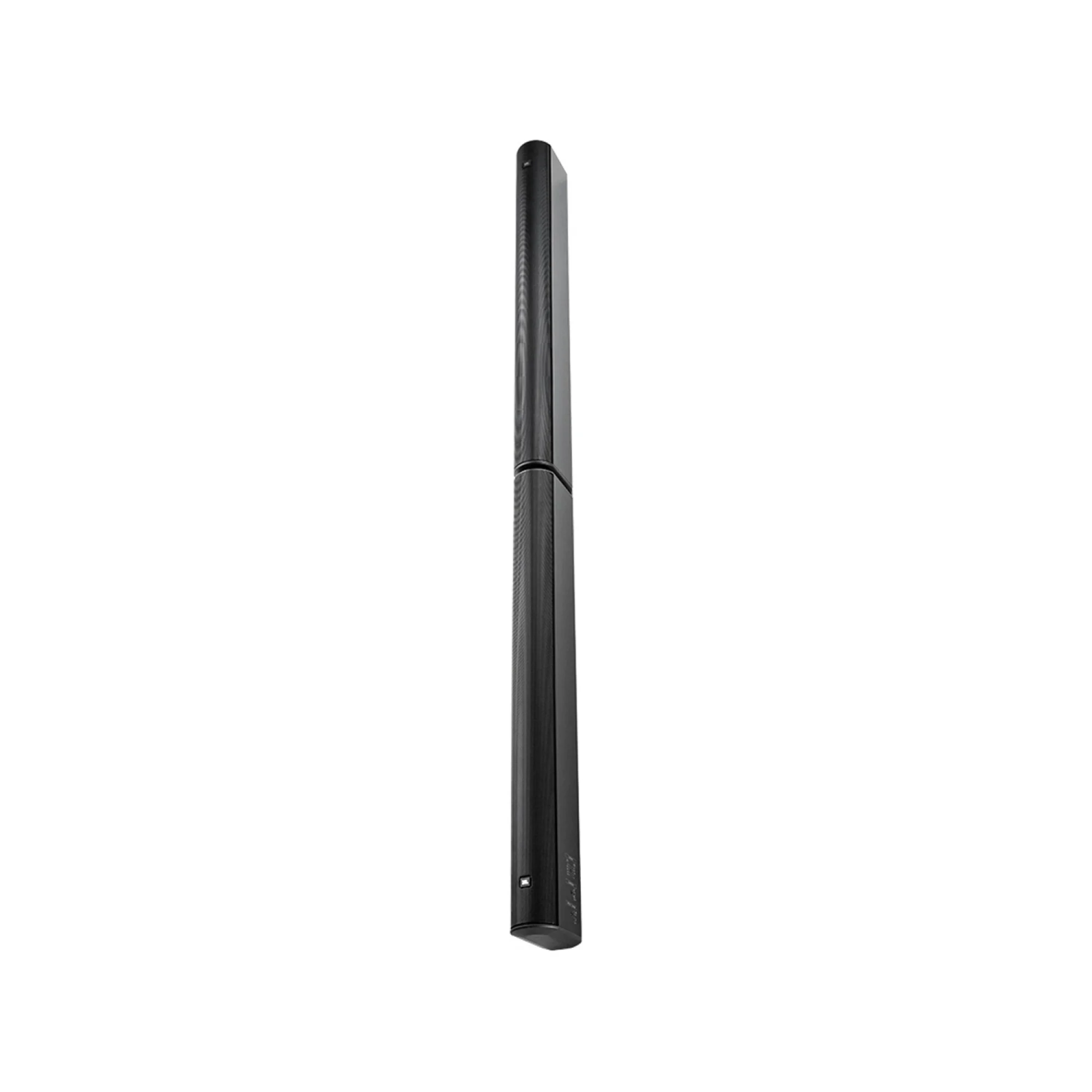

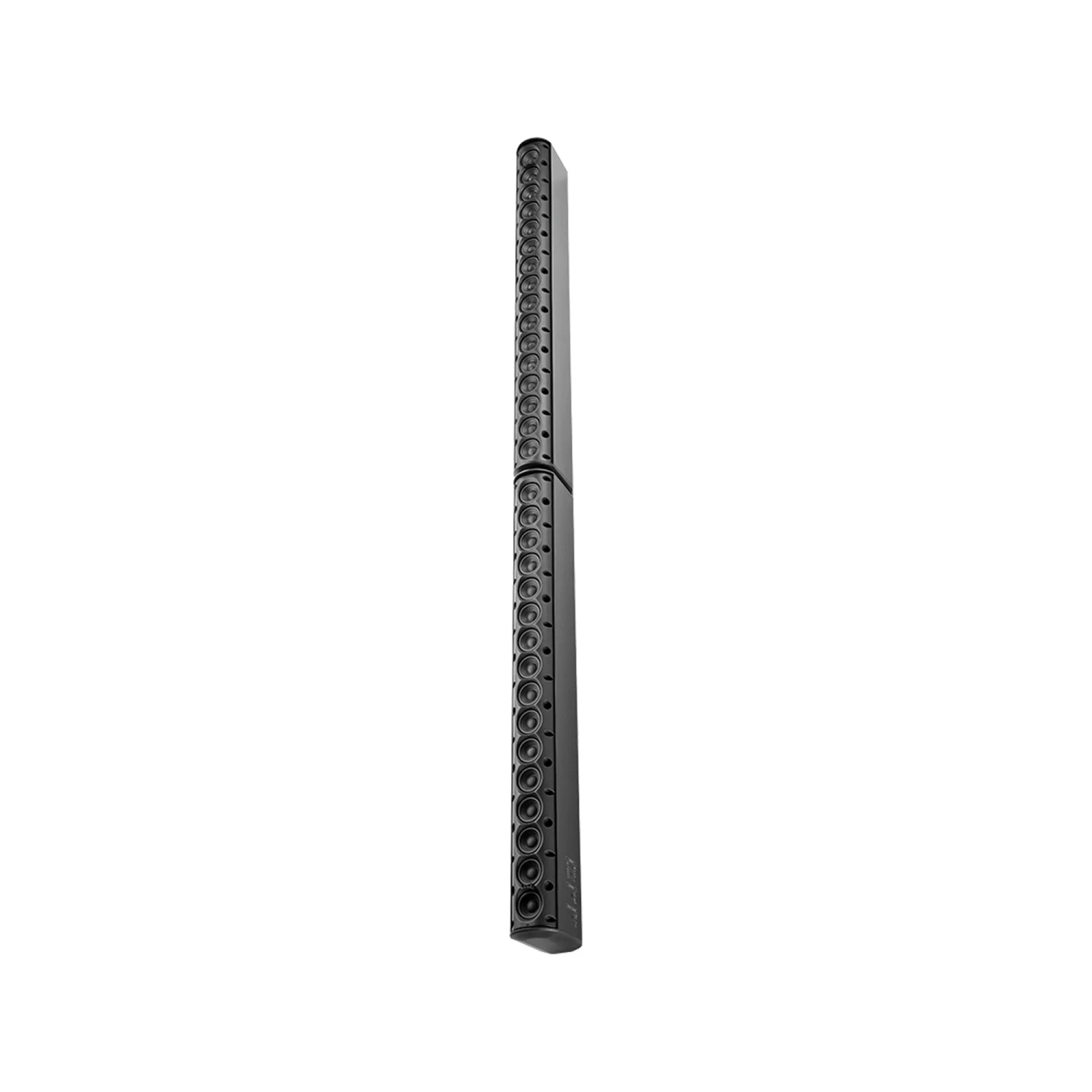

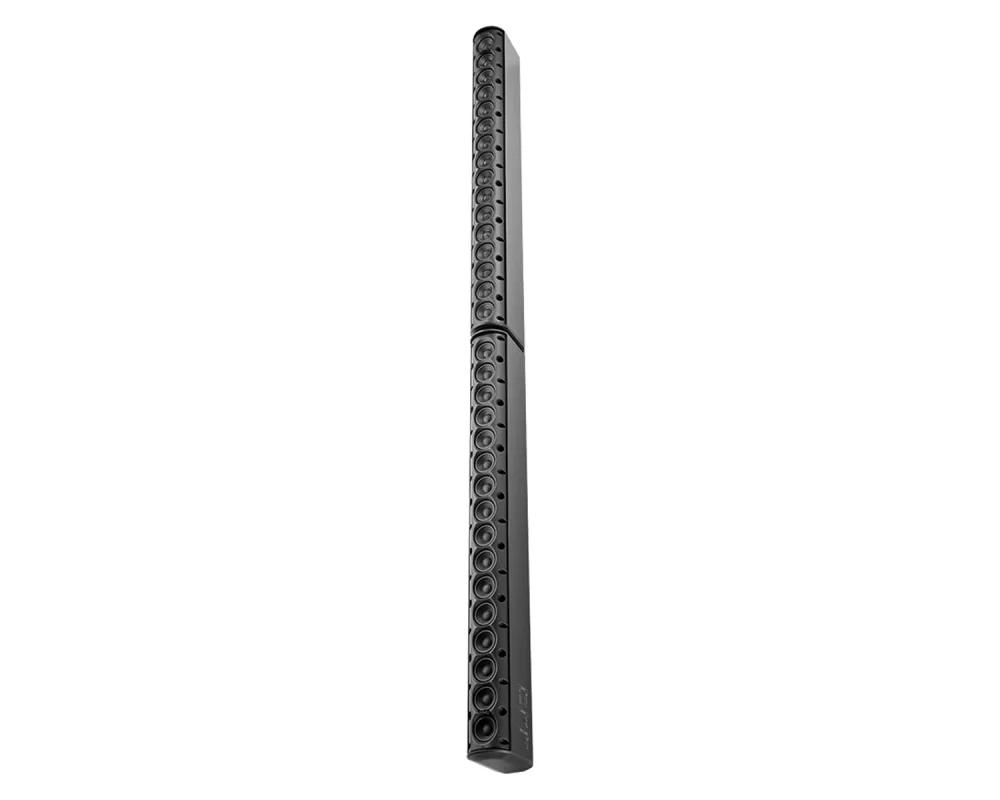

200 cm Tall Constant Beamwidth Technology Line Array Column Speaker
With Thirty-Two 50 mm (2 in) Drivers
Represents a breakthrough in pattern control consistency
Swivel (pan)/tilt wall bracket included
Built-in 70V/100V transformers, plus direct capability
Available in black or white - this is the black version
Patented Constant Beamwidth Technology™ provides true wide-band constant directivity coverage up to the highest frequencies and reduces out-of-coverage lobing.
200 cm (6.6 in) height extends pattern control to include lower frequencies.
Vertical pattern coverage switchable between 30° and 15° for medium or long-throw coverage.
Asymmetrical Progressive-Gradient vertical coverage setting directs more sound toward the far area of the listening space, making front to back sound levels more consistent. Progressive-Gradient extent is adjustable.
Narrow width of 98.5 mm (3.8 in) fits visually into a wide variety of applications.
Built-in 70V/100V transformers, plus direct capability.
Product Specifications
General
Components: Thirty-two 50 mm (2 in) Full-Range Drivers
Frequency Range (-10 dB): 80 Hz – 20 kHz
Frequency Response (±3 dB): 130 Hz – 18 kHz (narrow coverage, music mode setting)
Coverage - Vertical
Narrow Mode: 15° (500 Hz – 16 kHz, +15°/-2° [<60° down to 220 Hz, <90° down to 140 Hz])
Broad Mode: 30° (400 Hz – 12 kHz, +15°/-8°, [<60° down to 220 Hz, < 90° down to 140 Hz])
Asymmetrical Progressive-Gradient Mode: (Top speaker module set at “Narrow” and bottom speaker module at “Broad”, for “J-type” coverage, sending higher sound levels toward the far area of the listening space): 22.°(+7° from aiming axis up; -15° from aiming axis down, 300 Hz – 12 kHz, +15°/-8°, [<60° down to 220 Hz, <90° down to 140 Hz])
8Ω per half (top and bottom) for 4 ohms total (in thru mode).
Min-Z for system = 2.9Ω.
Hookup:
Ensure identical polarity of hookup – for proper functioning, the two loudspeaker modules (top and bottom) must be hooked up in same polarity.
Parallel hookup at the two sets of back panel input terminals is recommended.
Power Capacity (thru setting):
650W (2600W peak), 2 hrs
400W (1600W peak) 100 hrs
Max SPL - Narrow:
(speech mode): 123 dB cont ave (129 dB peak)
(music mode): 120 dB cont ave (126 dB peak)
Max SPL - Broad:
(speech mode): 121 dB cont ave (127 dB peak)
(music mode): 118 dB cont ave (124 dB peak)
Max SPL - Asymmetrical Progressive-Gradient Mode (on-axis):
(speech mode): 122 dB cont ave (128 dB peak)
(music mode): 119 dB cont ave (125 dB peak)
70V/100V Transformer Type: Set individually per speaker module (top and bottom): 120W, 60W, 30W (15W at 70V only), and direct 8Ω, via switch. Total (with top & bottom set to same): 240W, 120W, 60W (30W at 70V only) and direct 4Ω. Max. insertion loss less than 1 dB at any tap.
Connectors: Two (one for top half and one for bottom half), screw-down terminal strip, zinc-plated copper base, nickel plated metal screws/washers. Accepts up to 9 mm outside 4 mm inside open lug (#6, #8 or #10 lug), or bare wire (up to 12 AWC/2.5 mm2)
Outdoor Capability: IP-55 rated, per IEC529, when installed with optional MTC-PC2 panel cover. UV, moisture and 200-hr ASTM G85 acid-air/salt-spray resistant.

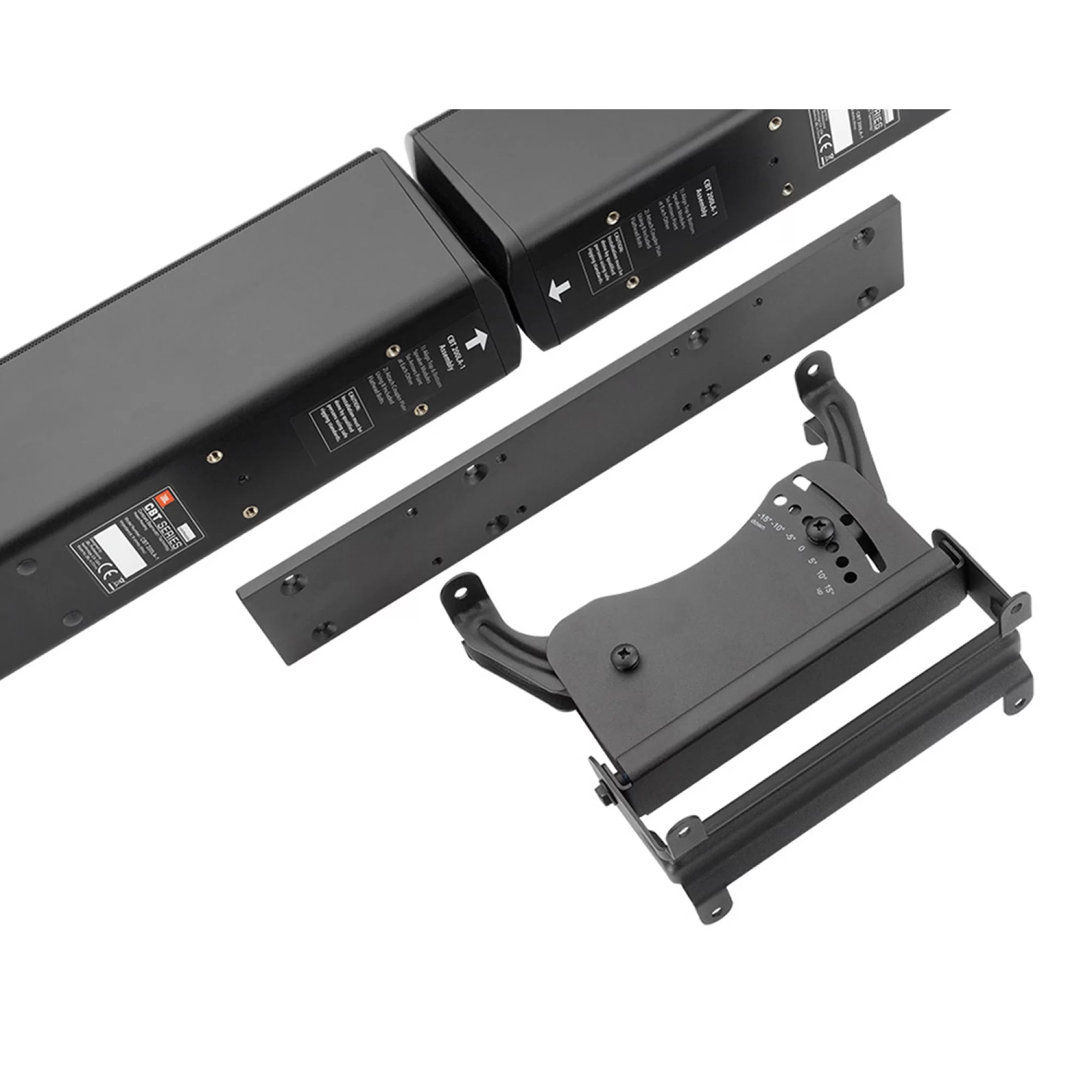

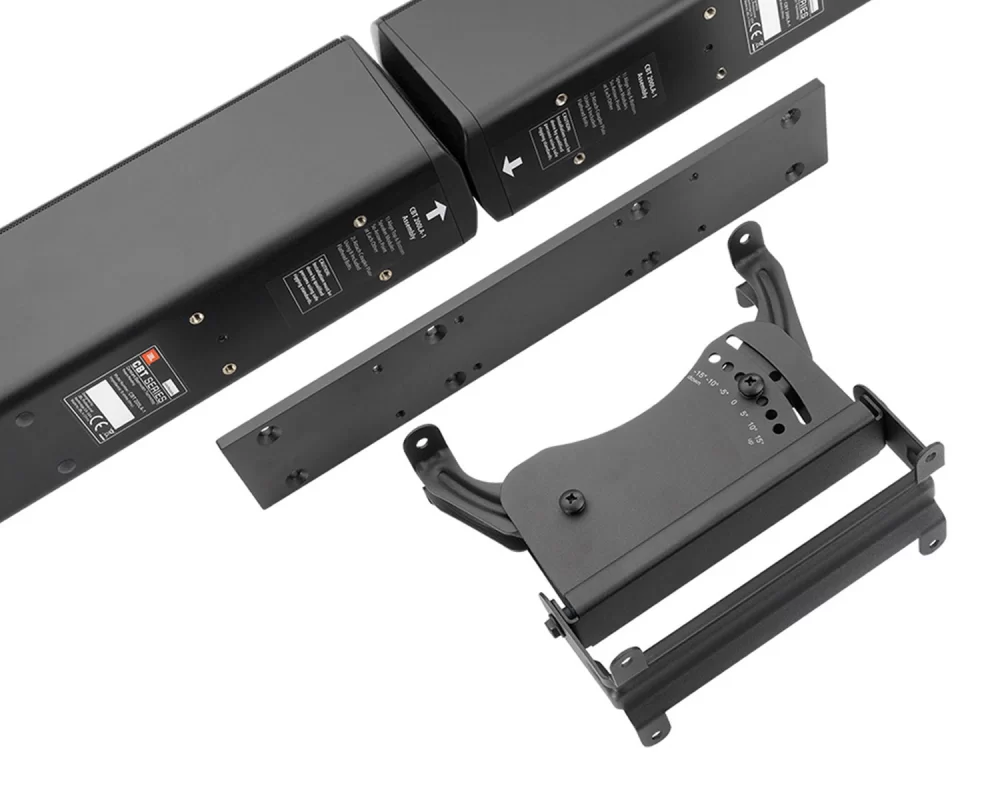

Configuration: Two pieces (top and bottom half), each 100 cm tall, connected together via Coupler Plate. Top/bottom orientation of each piece must be observed.
Insert Points: 28 M6 insert points on back panel (36 total with 8 center points being utilized by the Coupler Plate).
Mounting: Included swivel (pan) / tilt wall bracket (must be mounted to threaded points on Coupler Plate) provides continuously variable ±80° left-right swivel aiming (at up to ±5° up/down tilt), continuously adjustable ±10° up/down tilt, as well as 5° fixed increment tilt angles to ±10°. Twenty-eight available threaded mounting points (M6 diameter x M1 thread pitch x 17 mm deep) located on back panel. Threaded mounting points can be utilized for suspension. Compatible with OmniMount 30.0 brackets
