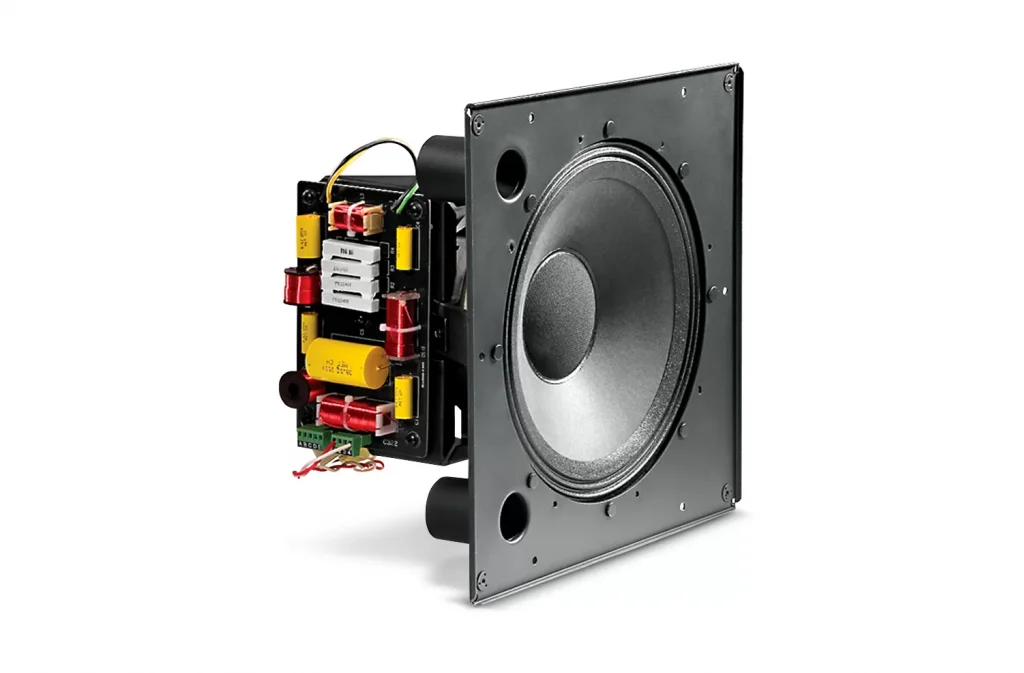

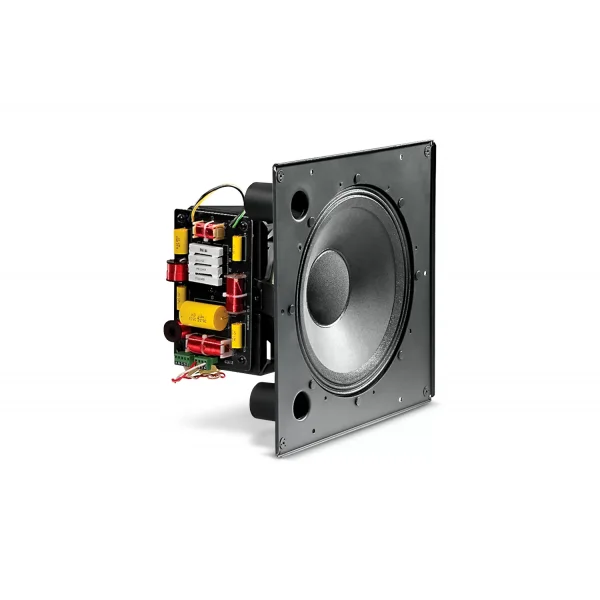

JBL Control-322C 12" 2 yollu koaksiyel hoparlör
JBL Contorl 322C Features:
- Consistent 90° broadband pattern control
- Components:
- Kevlar-reinforced 300 mm (12") woofer with 75 mm (3") voice-coil cone.
- Medium-format compression driver.
- Extraordinary clarity for speech and vocals with extended frequency response for music.
- Power handling of 400 Watts with high sensitivity provides high SPL capability.
- Advanced high-slope crossover network for constant coverage and smooth, natural midrange.
- Clean, contemporary grille and optional backbox available.
JBL Control 322C Specifications:
- Frequency Range (-10 dB): 32 Hz – 20 kHz
- Long-Term System Power Rating:
- 400 W (1600 W peak),2 hrs
- 250 W (1000 W peak),100 hrs
- Sensitivity (2.83V@ 1m):
- 95 dB measured half-space
- 100 dB computed for competitive comparison
- Frequency Response (±3 dB): 48 Hz – 19 kHz
- Coverage Pattern: 90° conical, broadband (Avg. 1k - 16kHz)
- Directivity Factor (Q): 9 (1k - 16kHz)
- Directivity Index (DI): 9.5dB (1k - 16kHz)
- Crossover Network: 1.4 kHz, 3rd order (18 dB/oct) high-pass plus conjugate to HF, 2nd order low-pass to LF
- Nominal Impedance: 8 ohms
- Dimensions: 14.4" H x 14.4" W x 8.8" D (366 x 366 x 223 mm)
