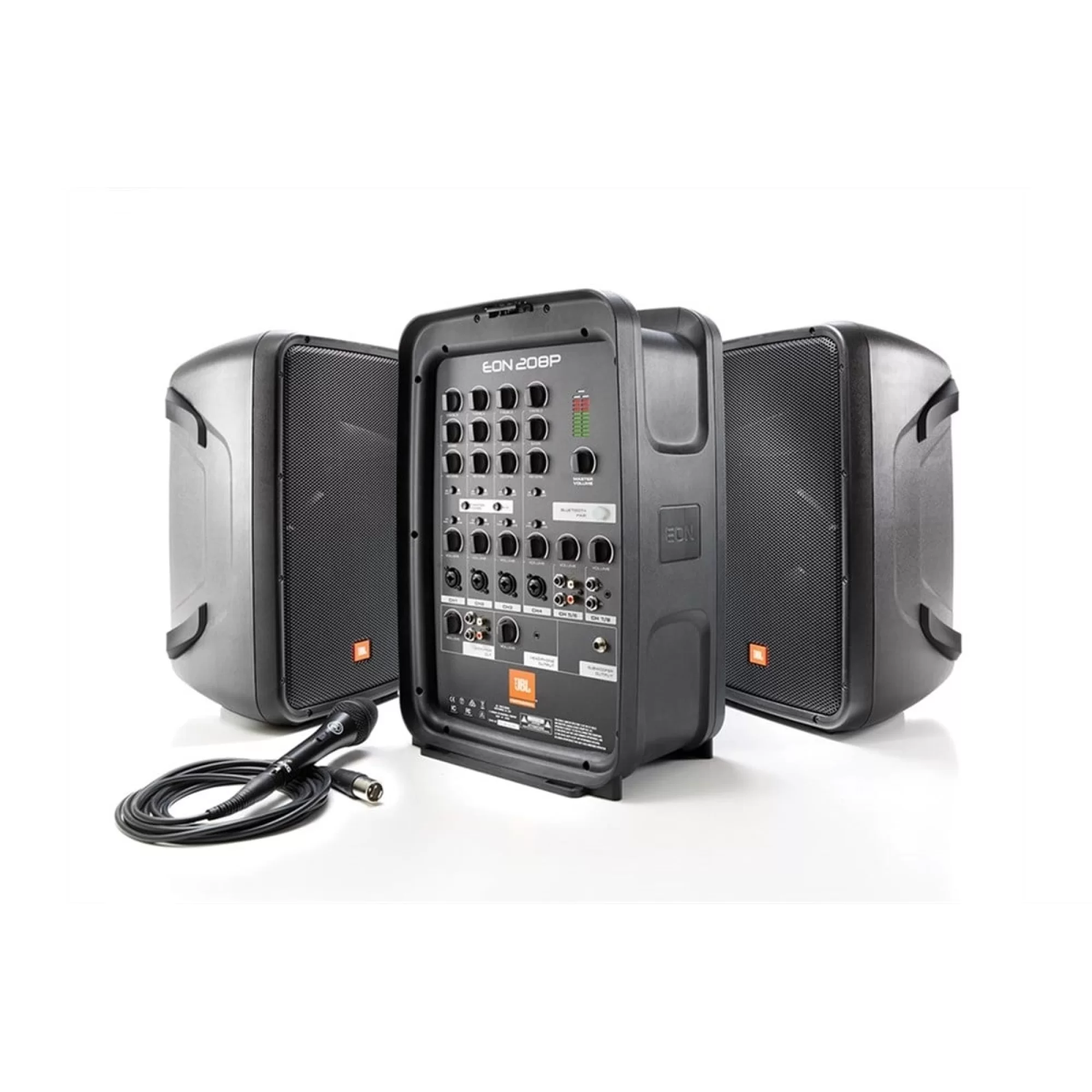

| System Type | Portable 2-way full-range loudspeakers with powered mixer |
| Maximum SPL Output | 121 dB peak |
| Frequency Range (-10 dB) | 60 Hz - 20 kHz |
| Frequency Response (+/-3 dB) | 70 Hz - 18 kHz |
| AC Input | 100-120 V, 220-240 V 50/60 Hz |
| Amp Design | Class D |
| System Power Rating | 300 W (2x 150 W stereo) |
| Output Connector | 2 x 1/4" TS (unbalanced) amplifier outputs |
| Channels | 1-4: XLR/1/4" jack combo connectors 5-6: one pair of 1/4" balanced TRS jacks (stereo),and one pair of RCA jacks (stereo) 7-8: one pair of 1/4" balanced TRS jacks (stereo),and a 3.5mm stereo jack |
| Phantom Power | CH1 and CH2 have phantom power control and share the same selection switch |
| Hi-Z Selection | CH3 has a Hi-Z selection switch used for guitar signal input |
| Mixer Output Connectors | Monitor Out: one pair of RCA jacks (stereo),and one pair of 1/4" balanced TRS jacks (stereo) Headphone Out: 3.5mm stereo jack Subwoofer Out: 1/4" balanced TRS jack |
| Treble/Bass EQ | Per-channel high- and low-shelf filters; +/- 12dB cut and boost |
| System Limiter | On-board DSP limiting |
| LF Driver | 1x JBL 8" (203mm) woofer |
| HF Driver | 1x 1" Neodymuim black aluminum dome tweeter |
| Coverage Pattern | 100° horizontal x 60° vertical |
| Crossover Frequency | 2 kHz |
| Crossover Type | 2-way passive network, 2nd order filters (12dB cutoff per octave) |
| Enclosure | Polypropylene |
| Suspension/Mounting | 36 mm pole socket |
| Handles | One on top |
| Speaker Grille | Powder-coated perforated steel |
| Shipping Package（HxWxD） | 22.6" (575 mm) x 30.5" (775 mm) x 15.7" (400 mm) |
| Net Weight | 38.8 lbs (17.6 kg) |
