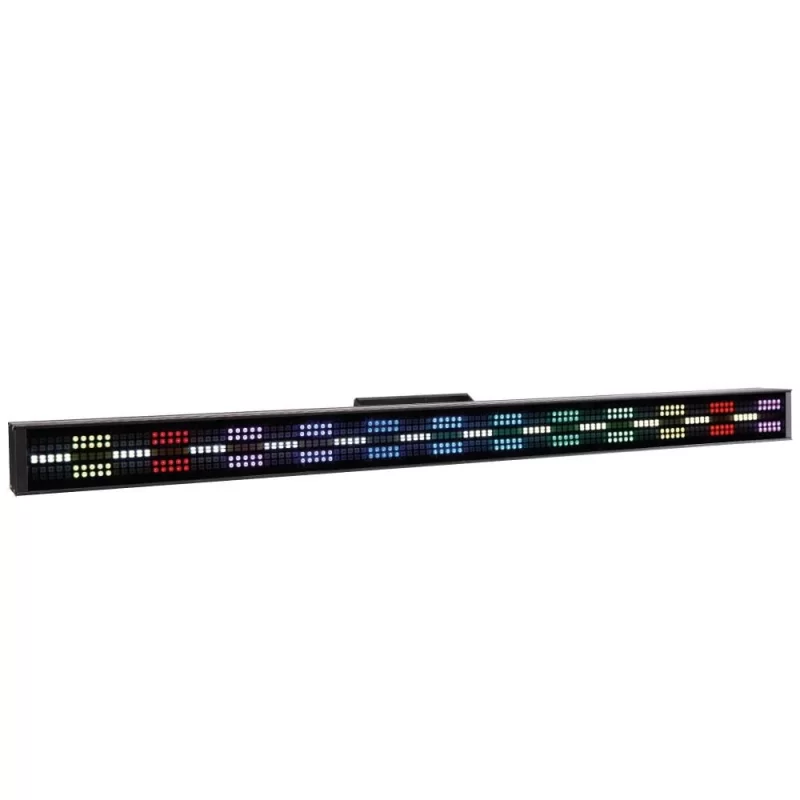

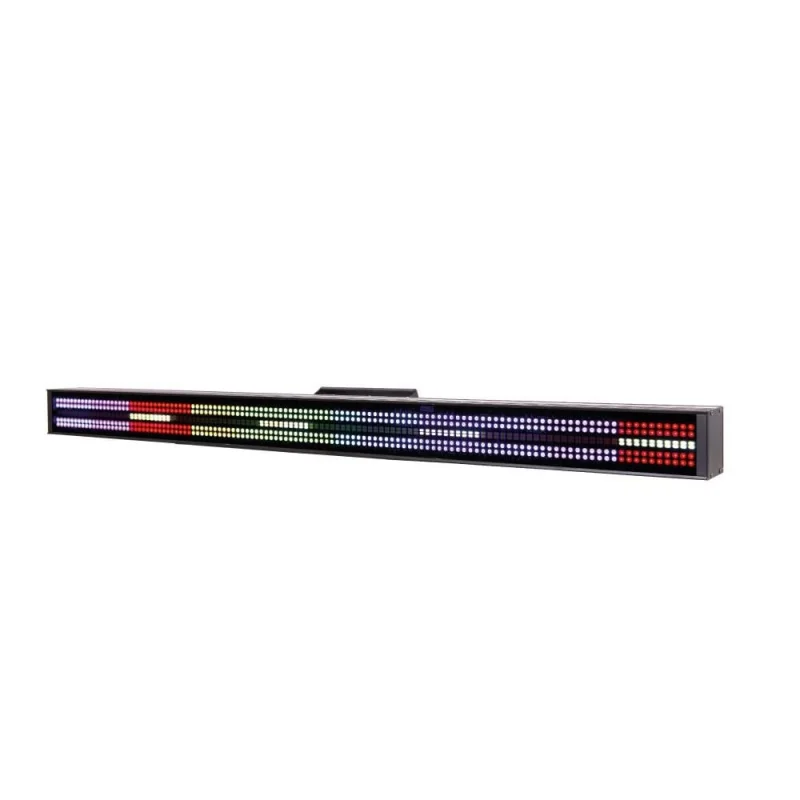

LOTUS ST-100 Pixel Led Bar Spot

price for Piece
Fast Shipping

LOTUS ST-100 Pixel Led Bar Spot

ST-100, an advanced series of static LED Pixel mapping bars designed for versatile lighting effects and artistic set decoration.
These are hybrid rods that combine two complementary effects in one fixture. The first is powered by a system of 480 RGB pixel LEDs that offer a backlight very similar in appearance to that of a high-resolution LED wall. This LED array can be controlled in 24 groups to provide high quality motion graphics.
The second effect is created by a central line of 240 extremely powerful white LEDs for an overwhelming strobe effect, capable of reproducing the behavior of the most famous flash fixtures on the market. This effect can also be controlled via 24 different areas offering unmatched versatility.
All graphical content can be managed through Advanced Layer Management, a special feature of Lotus LED bars, where you can choose to use different effect levels simultaneously and freely express your creativity.
The ST-100 includes a large number of built-in effects, so it can be used not only in advanced mode, but also in simple mode when a media server is not available or installation requires a quick solution.
The ST-100 can be easily mechanically connected to multiple units and then operated as a single complete fixture from the control software. It is extremely easy to use and user friendly.
Lotus also offers a wide variety of easy-to-apply accessory filters. These can shape the light beam with a frost effect or increase the readability of the pixels with a "neutral density" filter, which is especially useful for television applications and really improves camera performance.
The ST-100 is both stylish and lightweight, and is designed with a slim body to better suit many applications. From TV studios to tours where the need for pixel mapping light sets is increasingly in demand and appreciated. ST-100's "hybrid" nature is perfect for this need and provides two-in-one versatility. This is a truly distinctive product in any lighting kit, at a truly competitive price.

Light Source

  • 480 Pcs SMD 5050 3 in 1

  • Led Colors :  RGB
  • Led Segments  :  24 '' 4x5 ''  Strobe Led Tube
  • Led Count White :  240 Pcs SMD5730 0,5W
  • Led Colors White : Cold White
  • Led Segments White : 24 '' 10 pcs ''
  • Source life expectancy : 50.000 hours

Optics

  • Light Angle : 120° (±20)
  • Lens Type : 120° (±20)

Dimmer / Strobe
  • Strobe / Shutter Speed
  • Strobe at variable speeds - 1 - 30 Hz, electronic
Dimmer
  • 32bit 0~100% linear dimming
Effect
  • Static Mode : Selection of static colour
  • Manuel Mode : Manuel Adjustment of Color
  • Auto Mode : YES

Control Modes

  • 4 Channels 16 Channels 168 Channels

  • Display: LCD Display
  • Protocol : DMX512 ‘’ Built-in Program, DMX, Master Slave ‘’
  • Cooling : Forced Air With Fan

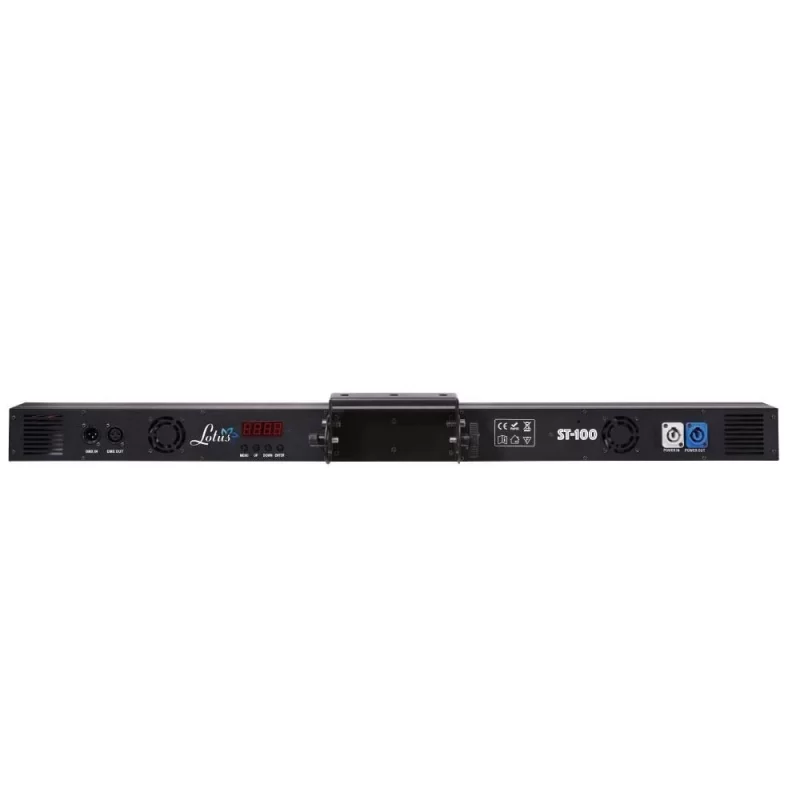

Connectors

  • Signal connection : Male / Female Connector ‘’ 3 pin or 5 Pin
  • Power Connection : PowerCon / TrueCon

Mains voltage

  • 100V-240V 50/60Hz
  • Power (Watt @ 230V) 300W
Working temperature
  • -30 ℃ ~ +50 ℃

Physical

  • Color: Black
  • Protection rating
  • IP 20
  • Net Weight kg.
  • 3,2kg.
  • Gross Weight with Box kg.
  • 4 in 1 Box : 16kg.
  • Gross Weight with Fly Case Weight kg.
  • 4 in 1 Fly Case : 41kg.
  • Dimension L x d x h '' Products ''
  • 1.000mm x 150mm x 100mm
  • Dimension Box L x d x h
  • 1.060mm x 310mm x 400mm
  • Fly Case Size L x d x h
  • 1150mm x 300mm x 390mm '' 4 in 1 ''
  • Professional Clamp : Optional
