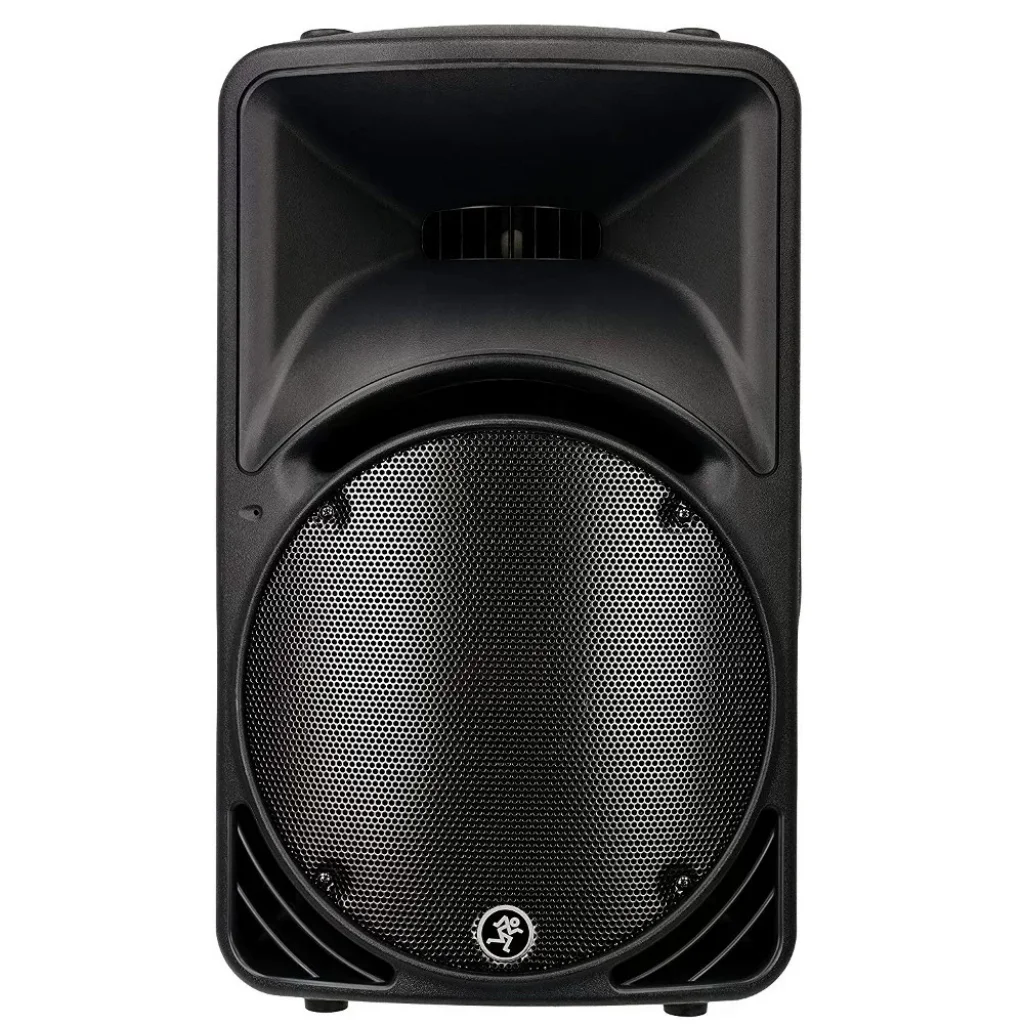

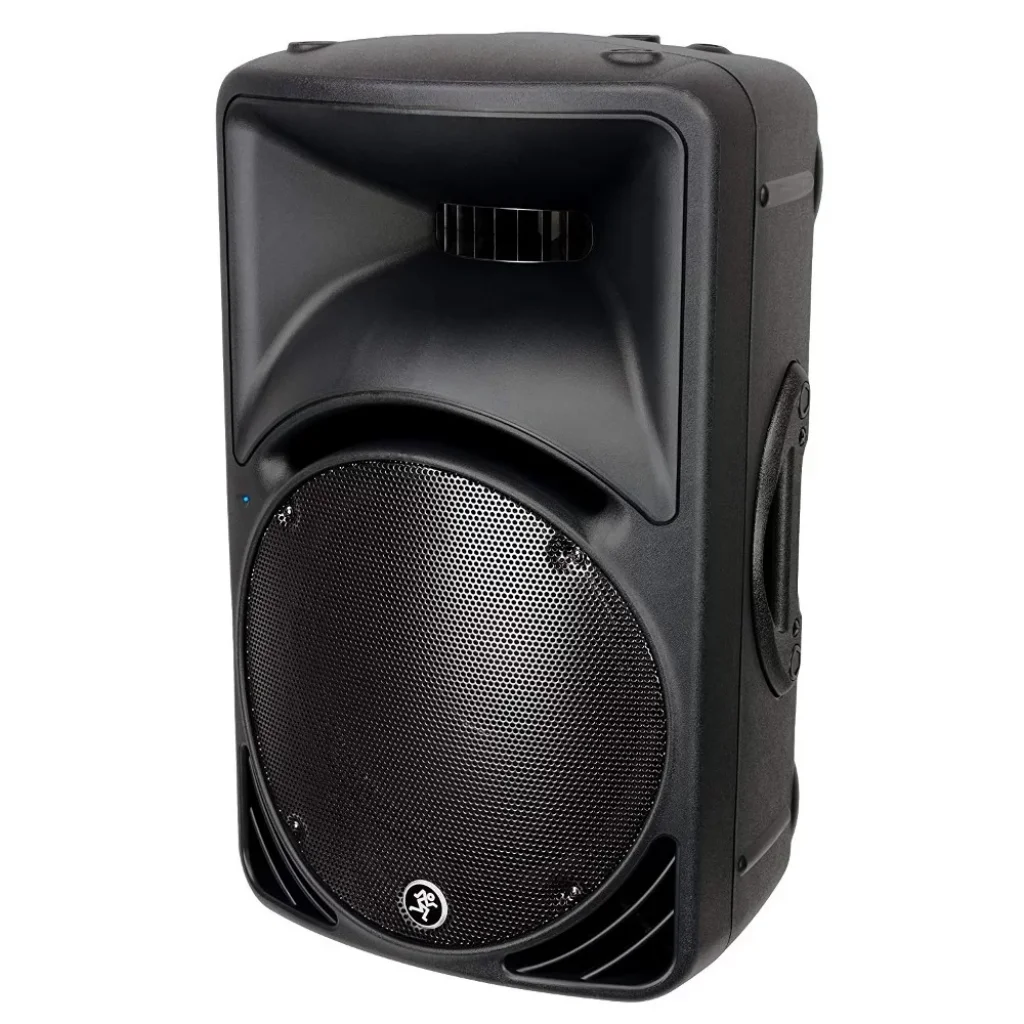

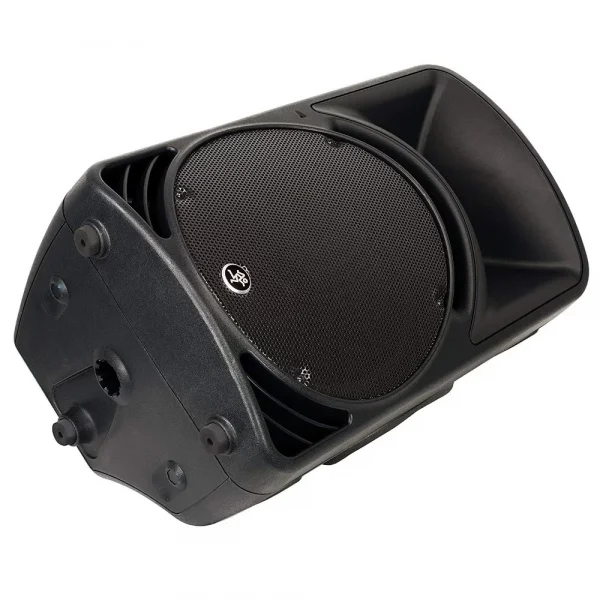

Mackie C300Z 12" Passive Speaker
The Mackie C300Z is a mid-priced 2-way speaker with a 12" woofer and a 1.75" compression driver housed in a wide-dispersion constant directivity horn, with a 300 Watt average power handling capacity.
- Portable Passive loudspeaker with 1.75" HF compression driver and 12" LF transducer
- 750W peak power handling
- HF compression driver mounted on multi-celled aperture, with constant directivity horn for wide 90° x 45° dispersion angle
- Accurate reproduction of upper mid-range and high frequencies, tuned Low Impedance Compensated Crossover(LICC) for matching driver beamwidth patterns
| Active or Passive | Passive |
| Frequency Response | 55 Hz - 18 kHz(-3 dB) |
| Power Capacity | RMS: 300 Watts
Music Program: 500 Watts
Peak: 750 Watts |
| Maximum Sound Pressure Level (SPL) | 123 dB Long-term @ 1m |
| Nominal Sensitivity | 98 dB, 1W/1m(Woofer)
106 db, 1W/1m(Horn) |
| Impedance | 8 Ohms |
| Crossover | 24 db/Octave, 1.8 kHz |
| Low Frequency Driver | 12" with 3" Voice Coil |
| High Frequency Driver | 1.75" Titanium Tweeter housed in 12 x 7" Horn |
| Enclosure Material | Polypropylene with Grey textured finish and perforated, weather-resistant metal grille |

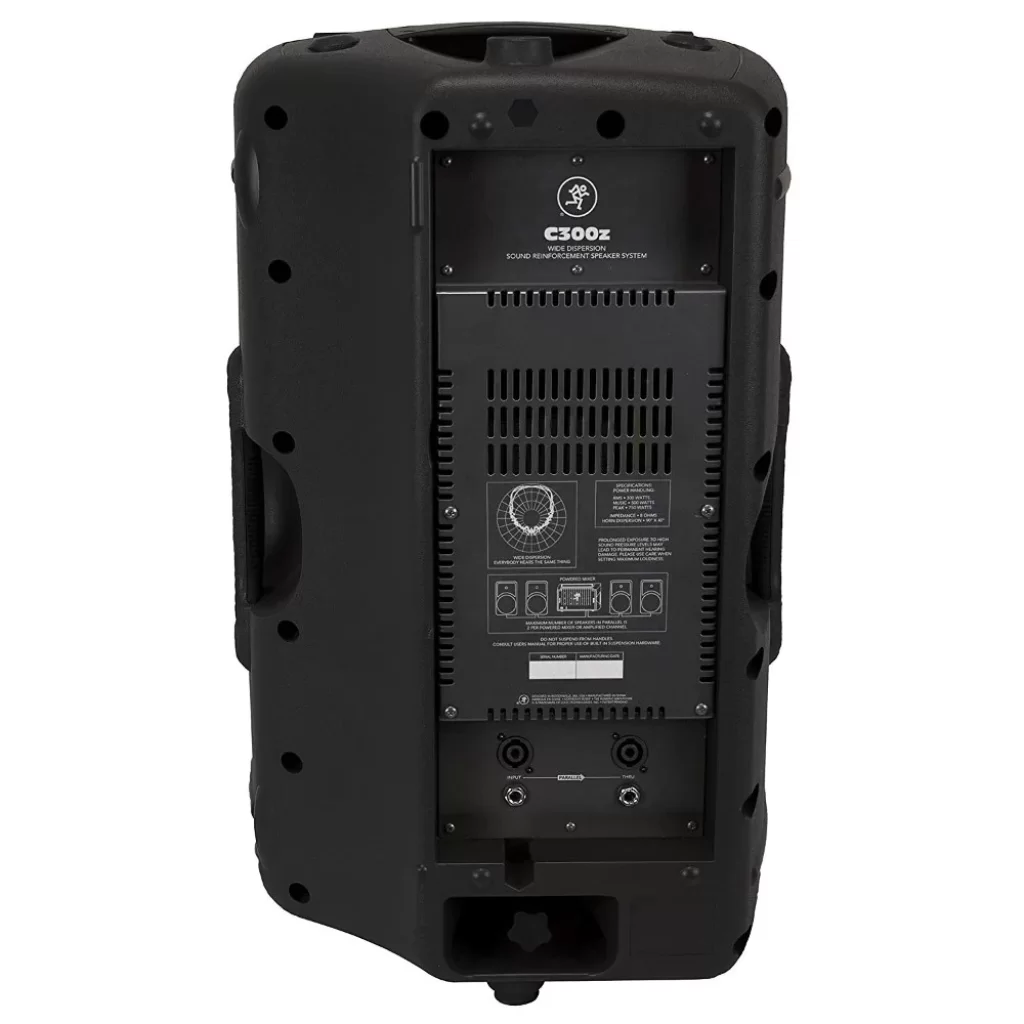

| Input Connections | 2 x Speakon NL4
2 x 1/4" TS Phone(Input and Thru) |
| Dimensions | 26 x 15.4 x 14.8" (660 x 390 x 376mm) |
| Weight | 43 lb (19.5 kg) |
