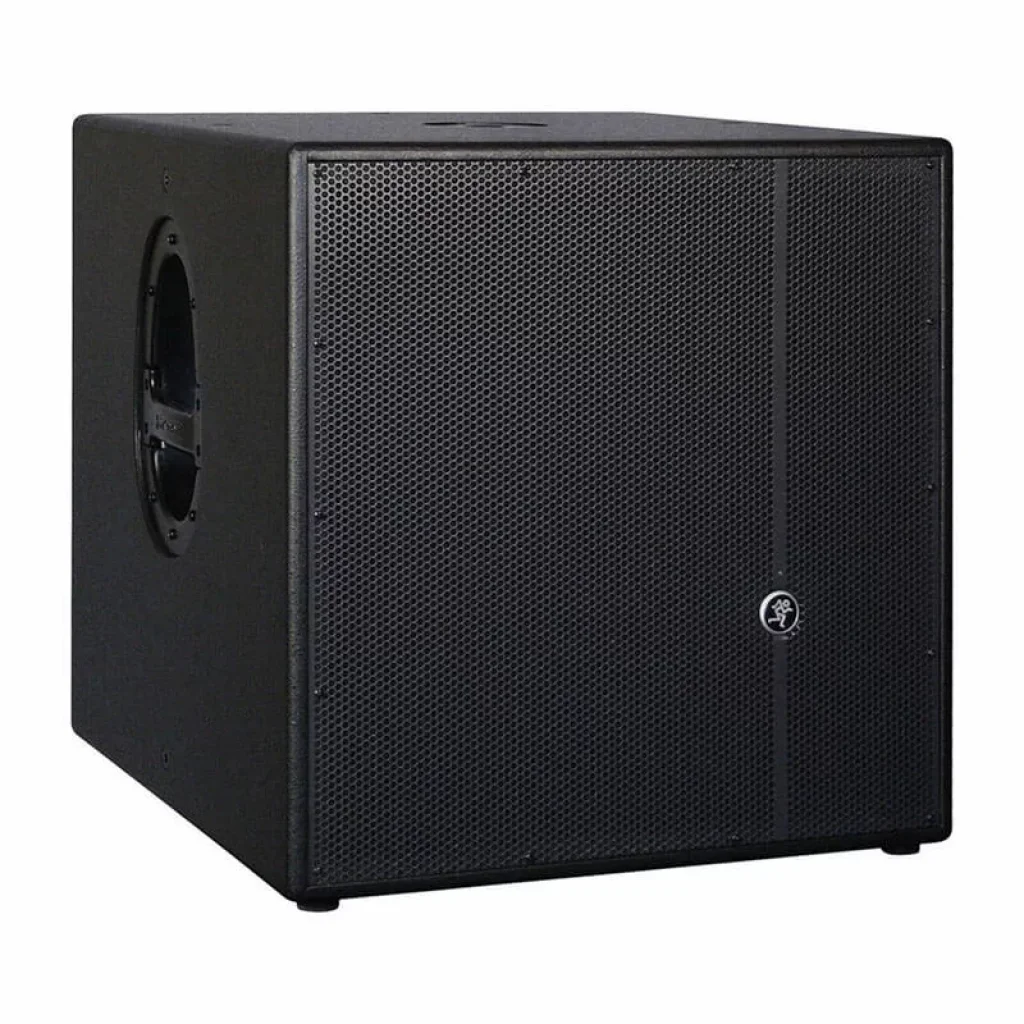

Mackie HD1801 18" Powered Subwoofer
The HD1801 from Mackie is a powered subwoofer that delivers powerful bass from a lightweight and compact design. An ideal companion to the HD-series 2-way loudspeakers, the sub has a ported bass-reflex birch cabinet to provide tight, punchy low frequency reinforcement. The cabinet houses a high-power 18" woofer that was designed by EAW to deliver bass frequencies as low as 35Hz.
The internal Class-D amplifier provides a peak power of 1600W for an incredibly strong performance with low distortion. The efficient amplifier design results in fast recovery and high SPL levels. Active electronics include a symmetrical Linkwitz-Riley crossover, precision tuning filters for accurate bass, plus phase alignment to work perfectly with full-range loudspeakers. The sub has dual XLR inputs, plus full-range and high-pass XLR outputs for mono or stereo applications.
- 1600W of ultra-efficient Class-D Fast Recovery™ amplification
- » 800W RMS / 1600W peak power
- » 133 dB SPL max output (peak @ 1m)
- » 35 Hz to 145 Hz operating range
- 18” high-output woofer with 4” voice coil
- Active electronics provide complete system optimization
- » Symmetrical Linkwitz-Riley crossover (100Hz, 24dB/octave)
- » Precision tuning filters for ultra-accurate bass reproduction
- » Phase alignment to perfectly complement Mackie full-range HD loudspeakers
- Ported, direct-radiating design for maximum punch and low-frequency extension
- Designed and tuned by Eastern Acoustic Works (EAW)
- Dual XLR inputs, full-range and high-pass outputs for mono or stereo setups
- Level control and polarity invert switch with LED indicator
- Signal/limit and thermal LED indicators
- Integrated protection and limiting circuitry
- Rugged all-wood cabinet (15mm birch plywood)
- Pole mount receptacle for mounting full range speaker
- 12 integrated M10 flypoints
- Optional Caster Kit
(ACC-CK100) - Compact and lightweight (106 lbs / 48.1 kg)
Active or Passive | Active |
Frequency Response | 35-145Hz (-10dB)
44-95Hz (-3dB) |
Amplifier | 800W RMS, 1600W Peak, Class-D |
Maximum Sound Pressure Level (SPL) | 129dB Measured
133dB Calculated |
Total Harmonic Distortion (THD) | < 0.03% |
Input Impedance | 20 kOhms |
Crossover | 100Hz, 24dB/Oct Symmetrical Linkwitz-Riley |
Low Frequency Driver | 15" (381mm) Paper Diaphragm Woofer with Ferrite Magnet and 3" Voice Coil |
Enclosure Material | 15mm Birch Plywood with Black Paint Finish, Powder-Coated Steel Grille, and 2 Integrated Handles |
Connectors | 2 x XLR Inputs
1 x Full-Range XLR Output
1 x High-Pass XLR Output
1 x Power Input |
Mounting | 1 x Standard Pole Socket
12 x M10 Fly Points |
Power | 100-240VAC, 50/60Hz |
Dimensions (HxWxD) | 23 x 23 x 25.8" (584 x 584 x 655mm) |
Weight | 106 lbs (48.2kg) |
