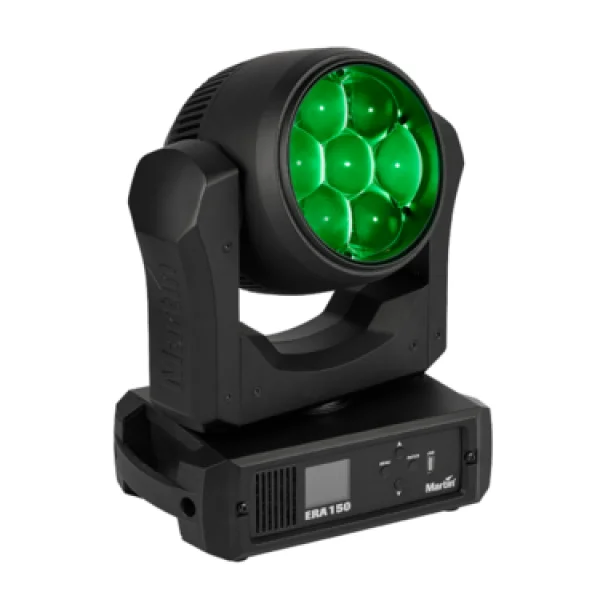

Martin ERA150 Led Moving Head Wash 7x40W RGBW Zoom

FEATURES

• Light engine: LED 7 x 40W RGBW
• Full-gamut color calibration
• CTC control: 1,800–10,000 K
• High output: 3,900 lumens
• High intensity 373,000 cd
• Zoom: 4.2 - 58˚
• Low-noise cooling system
• High-speed pan/tilt & zoom
• Weight 7.3 kg (16.1 lbs.)
• Dimensions: 276 x 176 x 356 mm (10.9 x 7.0 x 14.1 in.)

SPECIFICATIONS

• PHYSICALLength: 276 mm (10.9 in.)Width: 176 mm (7.0 in.)Height: 356 mm (14.1 in.)Weight: 7.3 kg (16.1 lbs.)
  DYNAMIC EFFECTSColor mixing: RGBWColor presets: 48 color presets, virtual color wheel effectsColor temperature control: Variable 1,800 - 10,000 KElectronic dimming: 0 - 100%, four dimming curve optionsStrobe and pulse effects: Variable speed and action, random strobeElectronic shutter effect: Instant open and blackoutZoom: Motorized, 4.2 - 58°Pan: 540°Tilt: 260°
  CONTROL AND PROGRAMMINGControl options: DMX, RDMDMX channels: 1816-bit fine control: Dimming, RGB, zoom, pan and tiltLED color management modes: Raw, extended and calibratedDMX address setting: Control panel with LCD displayDMX compliance: USITT DMX512-ARDM compliance: ANSI/ESTA E1.20Fixture software update: USB memory device or over DMX link
  OPTICSLight source: 7 x 40 W RGBW Osram LEDsMinimum LED lifetime: 50,000 hours (to >70% luminous output)*Beam angle (half-peak): 4.2° - 38.7°Field angle (one-tenth peak): 5.1° - 58.6°Cutoff angle (3%): 5.7° - 69.6°Binning: Tight color and flux binningCalibration: Full Gamut Color Calibration
  *Figure obtained under manufacturers test conditions
  PHOTOMETRIC DATA

  * All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient.

  CONSTRUCTIONHousing: High-impact flame-retardant thermoplasticColor: BlackProtection rating: IP 20
  INSTALLATIONMounting points: 2 x quarter‐turn fastener receptacles, 106.5 mmLocation: Indoor use only, must be fastened to surface or structureOrientation: AnyMinimum distance to combustible materials: 0.5 m (1.7 ft.)Minimum distance to illuminated surfaces: 1 m (3.3 ft.)Minimum clearance around fan and air vents: 0.5 m (1.7 ft.)
  CONNECTIONSAC power input/output: Neutrik PowerCON TRUE1 TOPDMX and RDM data in/out: Neutrik 5-pin locking XLR
  ELECTRICALAC power: 100-240 VAC (nominal), 50/60 HzTypical power consumption: 315 WTypical half-cycle RMS inrush current at 240 VAC: 8.7 APower supply unit: Auto-ranging electronic switch mode
  *Per IEC 60898/UL489/CSA C22.2 No. 5Recommended Miniature Circuit Breaker: Type D*
• MAXIMUM POWER AND CURRENT100-120 V, 60 Hz : 3.8 A, 340 W, Power factor 0.993220-240 V, 50 Hz: 1.5 A, 340 W, Power factor 0.966
  *Measurements made at nominal voltage with all LEDs at full intensity.
  Allow for a deviation of +/- 10%.

  THERMALCooling: Forced air (temperature regulated, low noise)Maximum ambient temperature (Ta max.): 40° C (104° F)Minimum ambient temperature (Ta min.): -10° C (14° F)Total heat dissipation (calculated): 1195 BTU/hr.
  *Calculated, +/- 10%, at full intensity, full white

  ACOUSTIC DATASound Pressure Level (LpA) @ 1 m (default regulated fan mode, full output): 37.0 dB(A)
  ENVIRONMENTALRoHS: CompliantREACH: CompliantWEEE: CompliantProposition 65: Compliant
  APPROVALSGlobal CB Certification/IECEE: IEC 60598-2-17 (IEC 60598-1)EU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493EU EMC: EN 55015; EN 55032; EN 55035; EN 61000-3-2, EN 61000-3-3, EN 61547US safety: UL 1573US EMC: FCC Part 15 Class BCanadian safety: CSA C22.2 No. 166Canadian EMC: ICES-003 Class B, ICES-005 Class BAustralia/NZ: RCMUnited Kingdom: UKCA
  INCLUDED ITEMSSafety and Installation ManualMartin Omega bracket for rigging clamp attachment : P/N 91602001
  RELATED ITEMSMartin Companion Cable (for firmware update over DMX): P/N 91616091Martin Companion Software (for firmware update over DMX): Free download from www.martin.com
  ACCESSORIES

  Power Input Cables
  Power Input Cable, H07RN-F, 2.5 mm2, bare ends to TRUE1 NAC3FX-W TOP (female), 1.5 m (4.9 ft.) P/N 91611797
  Power Input Cable, H07RN-F, 2.5 mm2, bare ends to TRUE1 NAC3FX-W TOP (female), 5 m (16.4 ft.) P/N 91611786
  Power Input Cable, SJOOW, 12 AWG, bare ends to TRUE1 NAC3FX-W TOP (female), 1.5 m (4.9 ft.) P/N 91610173
  Power Input Cable, SJOOW, 12 AWG, bare ends to TRUE1 NAC3FX-W TOP (female), 5 m (16.4 ft.) P/N 91610174

  Power Linking Cables
  Power relay cable, H07RN-F, 2.5 mm², TRUE1 to TRUE1, 0.45 m (1.5 ft.): P/N 91611784
  Power relay cable, H07RN-F, 2.5 mm2, TRUE1 to TRUE1, 1.2 m (3.9 ft.): P/N 91611785
  Power relay cable, H07RN-F, 2.5 mm2, TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91611796
  Power relay cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 0.45 m (1.5 ft.): P/N 91610170
  Power relay cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 1.2 m (3.9 ft.): P/N 91610171
  Power relay cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91610172

  Power Connectors
  Power Connector, Cable Mount, Neutrik TRUE1 NAC3FX-W (female): P/N 91611789HU
  Power Connector, Cable Mount, Neutrik TRUE1 NAC3MX-W (male): P/N 91611788HU

  Installation Hardware
  G-clamp (suspension with fixture hanging vertically downwards only): P/N 91602003
  Quick Trigger Clamp (suspension with fixture hanging vertically downwards only): P/N 91602007
  Half-coupler Clamp: P/N 91602005
  Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006
  Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007

  ORDERING INFORMATIONERA 150 Wash in cardboard box: P/N MAR-90290000
