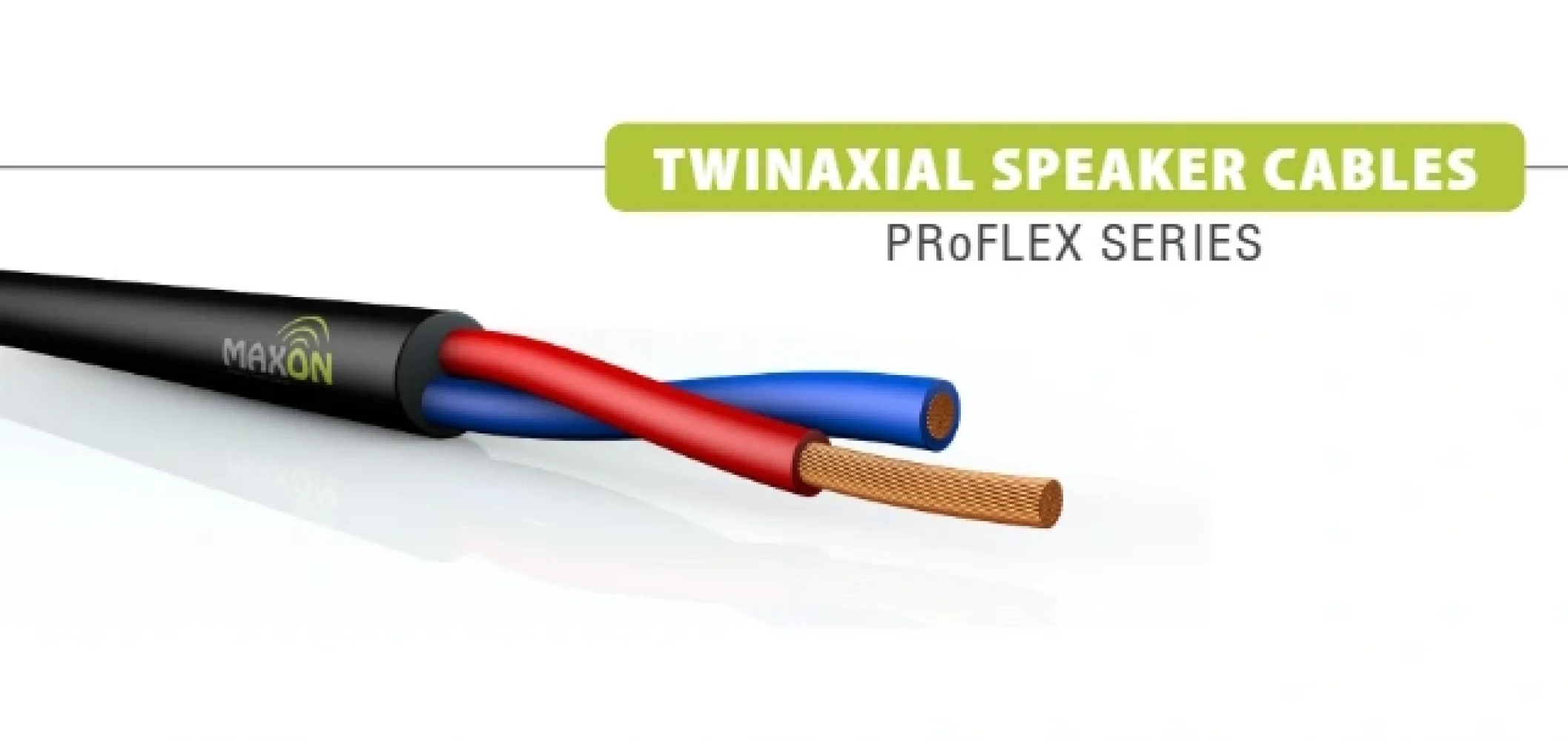

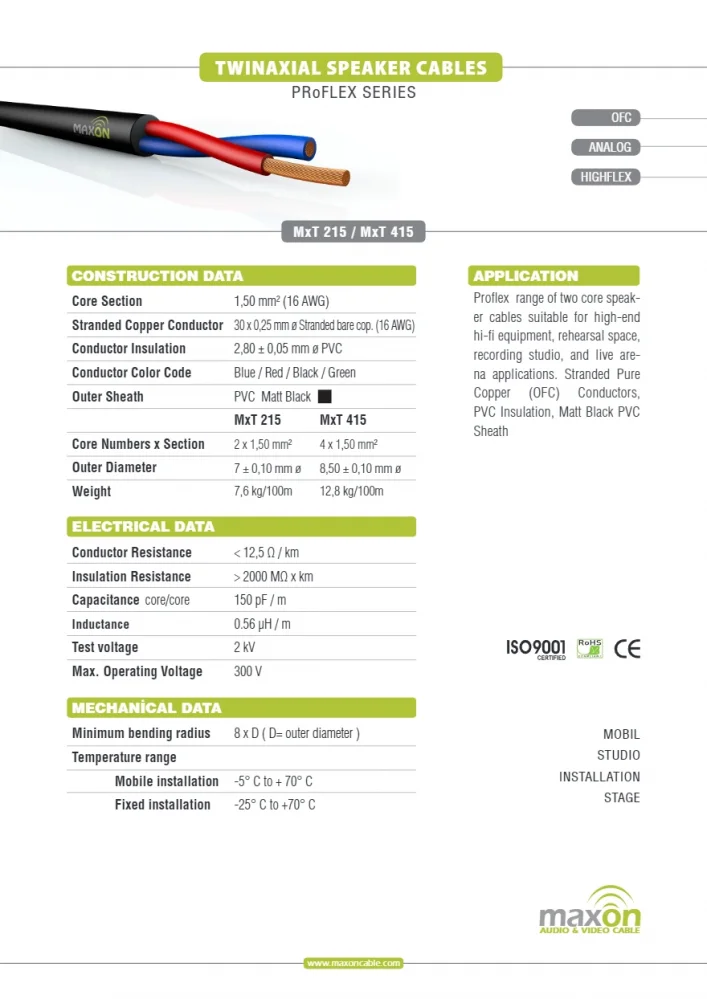

TWINAXIAL SPEAKER CABLESProFLEX SERIES
OFCANALOGHIGHFLEX
MxT 215 / MxT 415
CONSTRUCTION DATA
Core Section: 1,50 mm² (16 AWG)
Stranded Copper Conductor: 30 x 0,25 mm Stranded bare cop. (16 AWG)
Conductor Insulation: 2,80 ± 0,05 mm ø PVC
Conductor Color Code: Blue / Red / Black / Green
Outer Sheath: PVC Matt Black
MxT 215
Core Numbers x Section: 2 x 1,50 mm²
Outer Diameter: 7 ± 0,10 mm ø
Weight: 7,6 kg/100m
MxT 415
Core Numbers x Section: 4 x 1,50 mm²
Outer Diameter: 8,50 ± 0,10 mm ø
Weight: 12,8 kg/100m
ELECTRICAL DATA
Conductor Resistance: < 12,5 Ω / km
Insulation Resistance: > 2000 MΩ x km
Capacitance core/core: 150 pF / m
Inductance: 0,56 μH / m
Test voltage: 2 kV
Max. Operating Voltage: 300 V
MECHANICAL DATA
Minimum bending radius: 8 x D (D = outer diameter)
Temperature range:
Mobile installation: -5° C to +70° C
Fixed installation: -25° C to +70° C
APPLICATION Proflex range of two core speaker cables suitable for high-end hi-fi equipment, rehearsal space, recording studio, and live area applications. Stranded Pure Copper (OFC) Conductors, PVC Insulation, Matt Black PVC Sheath
ISO9001 CERTIFIEDRoHS COMPLIANTCE
MOBILSTUDIOINSTALLATIONSTAGE
