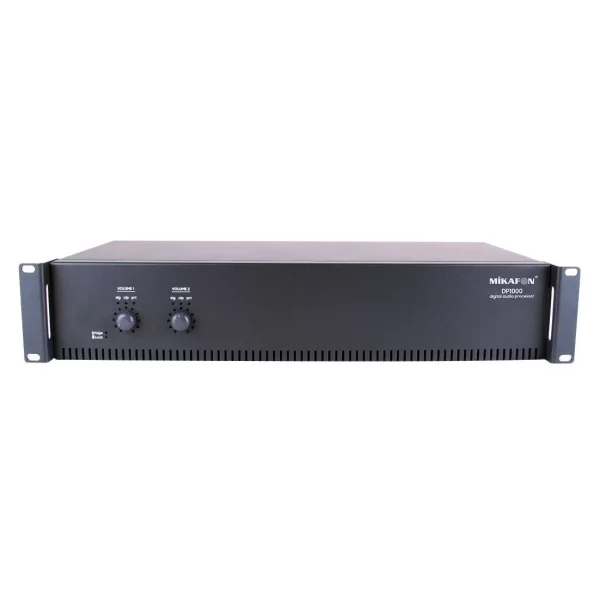

The Mikafon DP1000 is a D-class power amplifier with built-in DSP and matrix feature. It has a user-friendly interface that can be connected via TCP-IP. Unlike other devices on the market, it allows the adjustment of output voltages for each channel. This feature enables its use in a wide range of applications such as cafes, clubs, airports, stadiums, and public spaces.
The DP series, which consists of DP200, DP500, and DP1000 devices, have the same operating principle. This user manual is divided into two classes: DP200 and DP500&DP1000.
General Features
- DSP
- Matrix
- D-class
- Individual sound adjustment for each channel
- Stereo bridge mode
- Easy-to-use MAS interface
Technical Specifications
- Frequency Response: ±0.1dB, 4Ω @20Hz-20kHz
- Total Harmonic Distortion: 0.05% @20Hz-20kHz
- Signal-to-Noise Ratio: >15V/μs
- External Input: Ethernet 1/10-100 Mb
- Input Sensitivity - Impedance: 20kΩ Balanced, 10kΩ Unbalanced
- Protections: Soft Start, Over Temp, Over Load, DC Out
- Dimensions (WxDxH):
- Without handle: 425x200x88 mm
- With handle: 480x200x88 mm
- Weight: 4 kg
- Output Power (Capacity) RMS 1kHz, 0.1% THD:
- Nominal: Stereo 2x500W or Bridge 1x1000W
- Max Power: Stereo 2x1000W or Bridge 1x2000W
- Additional Output/Voltage-Impedance:
- Mono: 2x 25V (1.25Ω), 35V (2.45Ω), 50V (5.0Ω), Bridge 1x 50V (2.5Ω), 70V (4.9Ω), 100V (10Ω)
