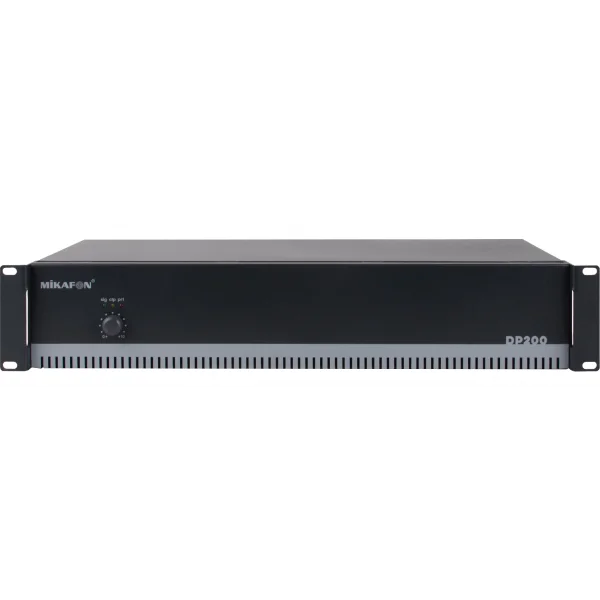

Mikafon DP200 is a D-class power amplifier with DSP and matrix features. It can be connected via TCP-IP and has an easy-to-use interface. Unlike other devices on the market, it allows adjusting output voltages for each channel. Thanks to this feature, it is suitable for a wide range of applications such as cafes, clubs, airports, stadiums, and public areas. The functions of the devices in the DP series; DP200, DP500, and DP1000 operate on the same principle. This user manual is divided into two classes: DP200 and DP500&DP1000.
General Features
- DSP
- Matrix
- D-class
- Sound adjustment for each channel
- Stereo bridge mode
- Easy-to-use MAS interface
Technical Specifications
- Frequency Response: ±0.1dB, 4Ω @20Hz-20kHz
- Total Harmonic Distortion: 0.05% @20Hz-20kHz
- Signal-to-Noise Ratio: >15V/μs
- External Input: Ethernet 1/10-100 Mb
- Input Sensitivity - Impedance: 20kΩ Balanced, 10kΩ Unbalanced
- Protections: Soft Start, Over Temp, Over Load, DC Out
- Dimensions (WxDxH):
- Without handle: 425x200x88 mm
- With handle: 480x200x88 mm
- Weight: 4 kg
- Output Power (Capacity) RMS 1kHz, 0.1% THD:
- Nominal: 200W
- Max Power: 400W
- Extra Output/Voltage-Impedance:
- Mono: 1x 50V (12.5Ω),70V (25Ω),100V (50Ω)
