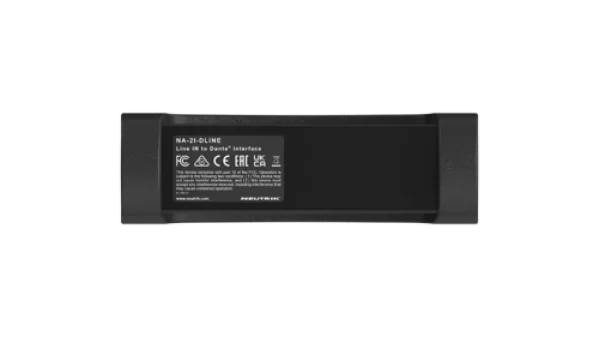

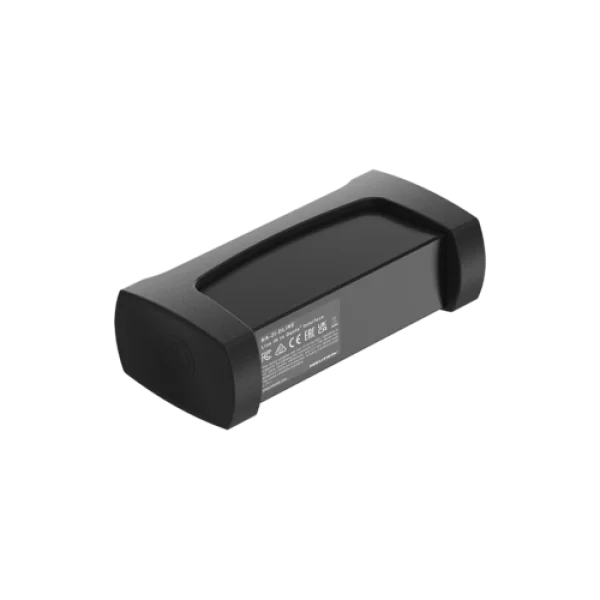

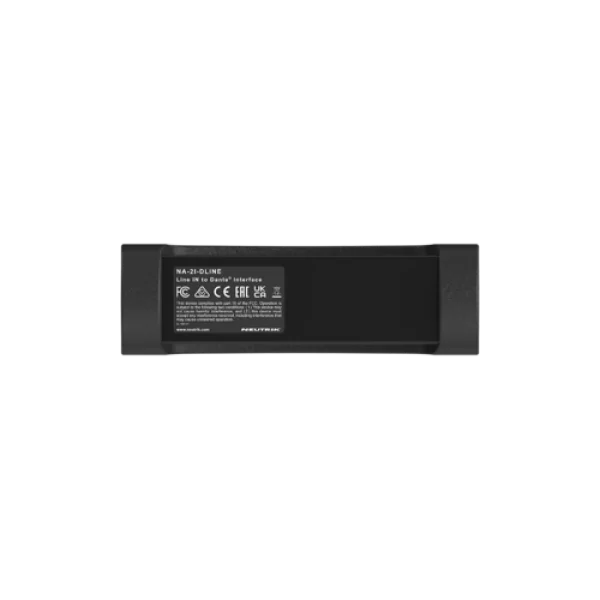

Neutrik NA-2I-DLINE is a Dante-Analog converter used to integrate analog audio signals into the digital Dante network. This device receives signals from analog audio sources and transmits them digitally via the Dante network. Its compact, sturdy construction and high-quality connection options make it ideal for various professional audio applications.
Product Description:

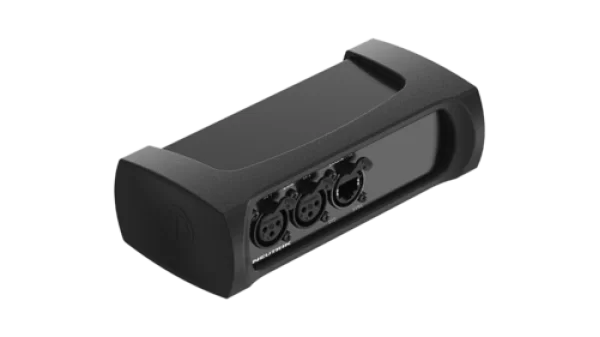

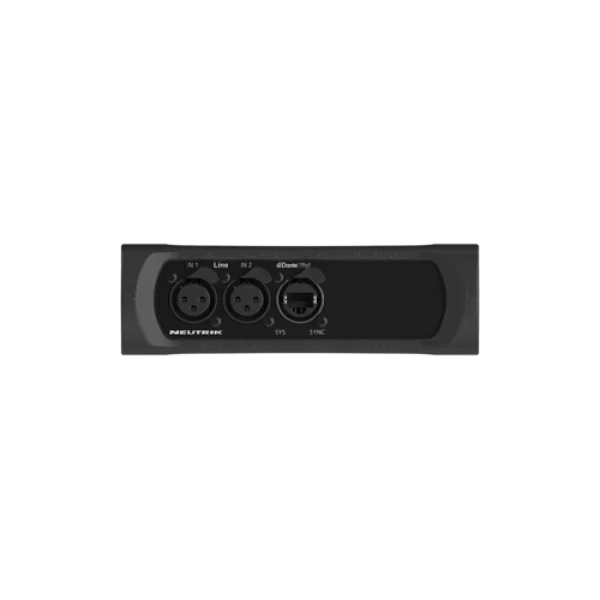

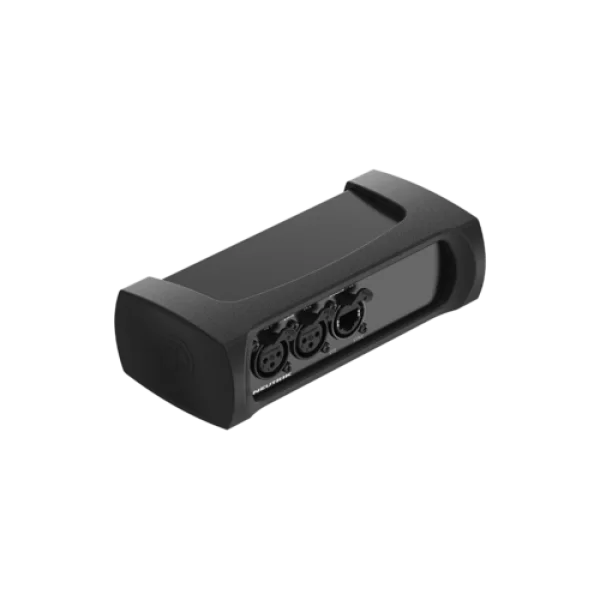

The Neutrik NA-2I-DLINE is an interface that converts two analog audio inputs to the Dante network. This device transfers signals from microphones, mixing consoles, or other analog audio devices to the Dante network. Its compact design provides portable and durable use. With lockable XLR inputs and RJ45 EtherCON connection, it offers reliable and robust performance.
Technical Specifications:
- Conversion: Analog → Dante (digital)
- Inputs:
- 2 x XLR 3P balanced analog inputs
- Dante Protocol:
- 1 x Dante port (EtherCON RJ45)
- Transmission of digital audio signals via the Dante network
- Power Supply: Operates with Power over Ethernet (PoE)
- Maximum Audio Resolution: Supports up to 24-bit / 96 kHz
- Dynamic Range: 100 dB
- Output Level: Maximum +24 dBu
- Input Impedance: 20 kOhm
- Protection: Sturdy metal casing, lockable XLR inputs
- Dimensions: Compact and portable design
- Weight: Approximately 0.4 kg
