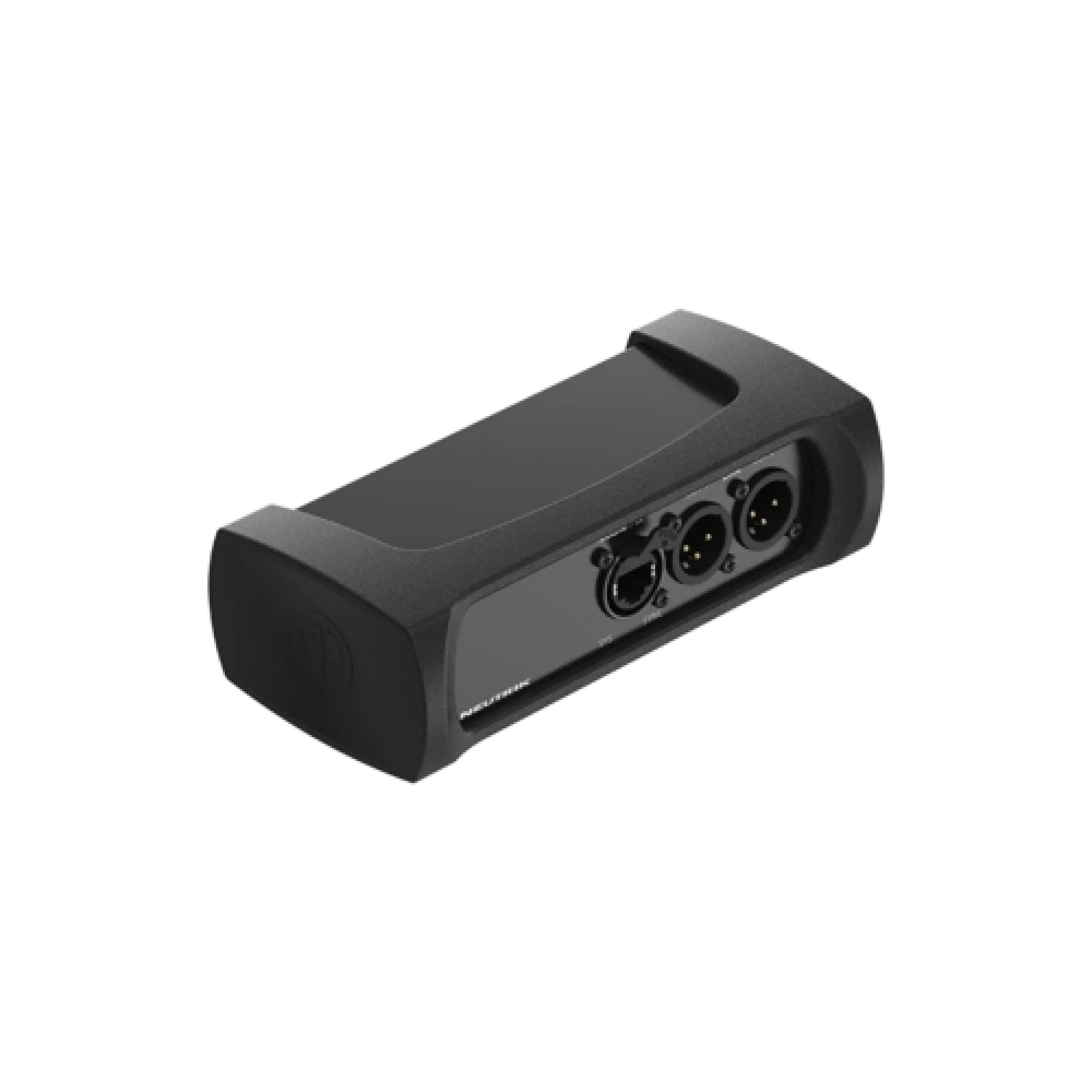

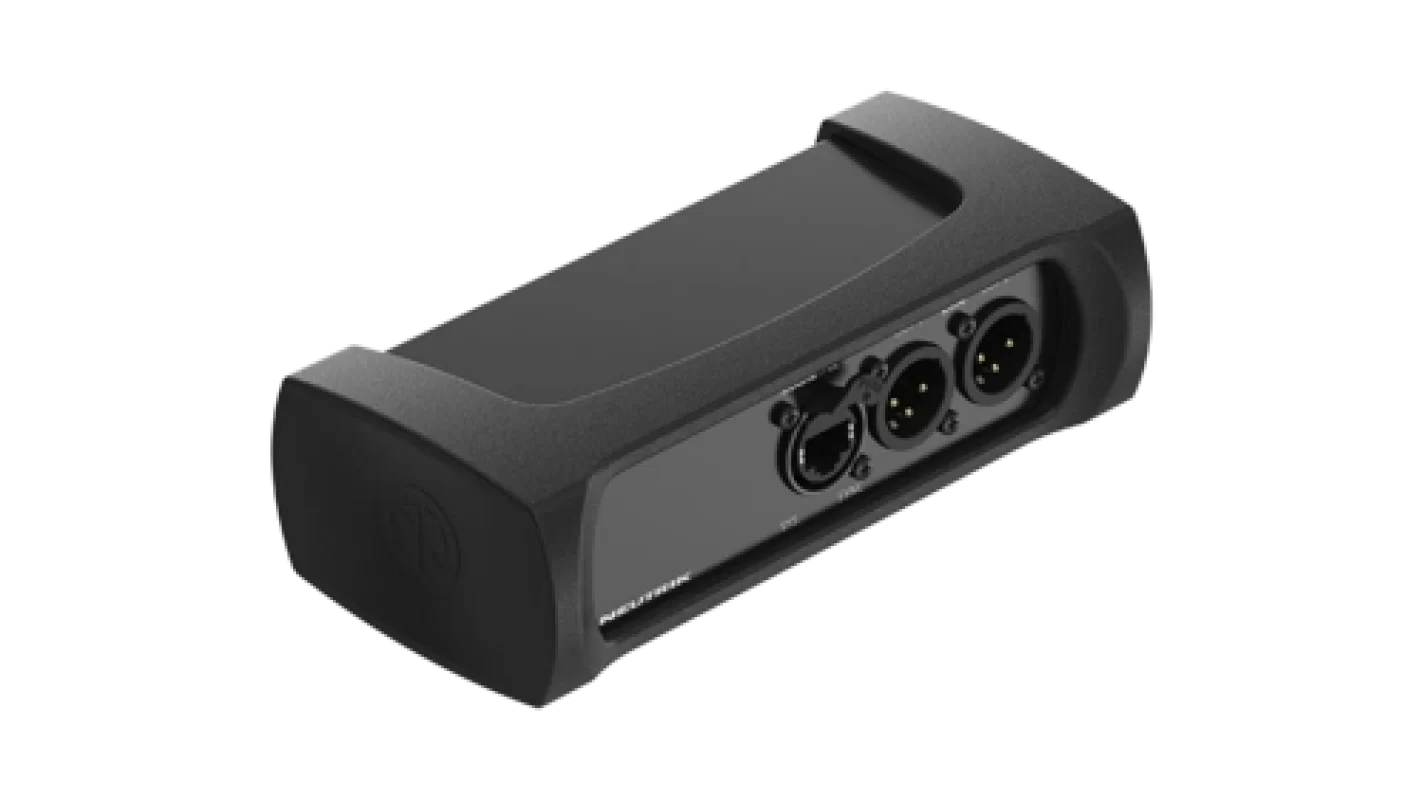

Neutrik NA-2O-DLINE | Line 2 out Dante Interface

Neutrik NA-2O-DLINE is a Dante-Analog converter that allows you to add two analog outputs to digital audio networks using the Dante protocol. This compact interface receives digital audio signals over the Dante network and converts them to two balanced analog XLR outputs. It is manufactured to industrial standards, providing a reliable solution for studio, live performances, and corporate audio systems.

Product Description:

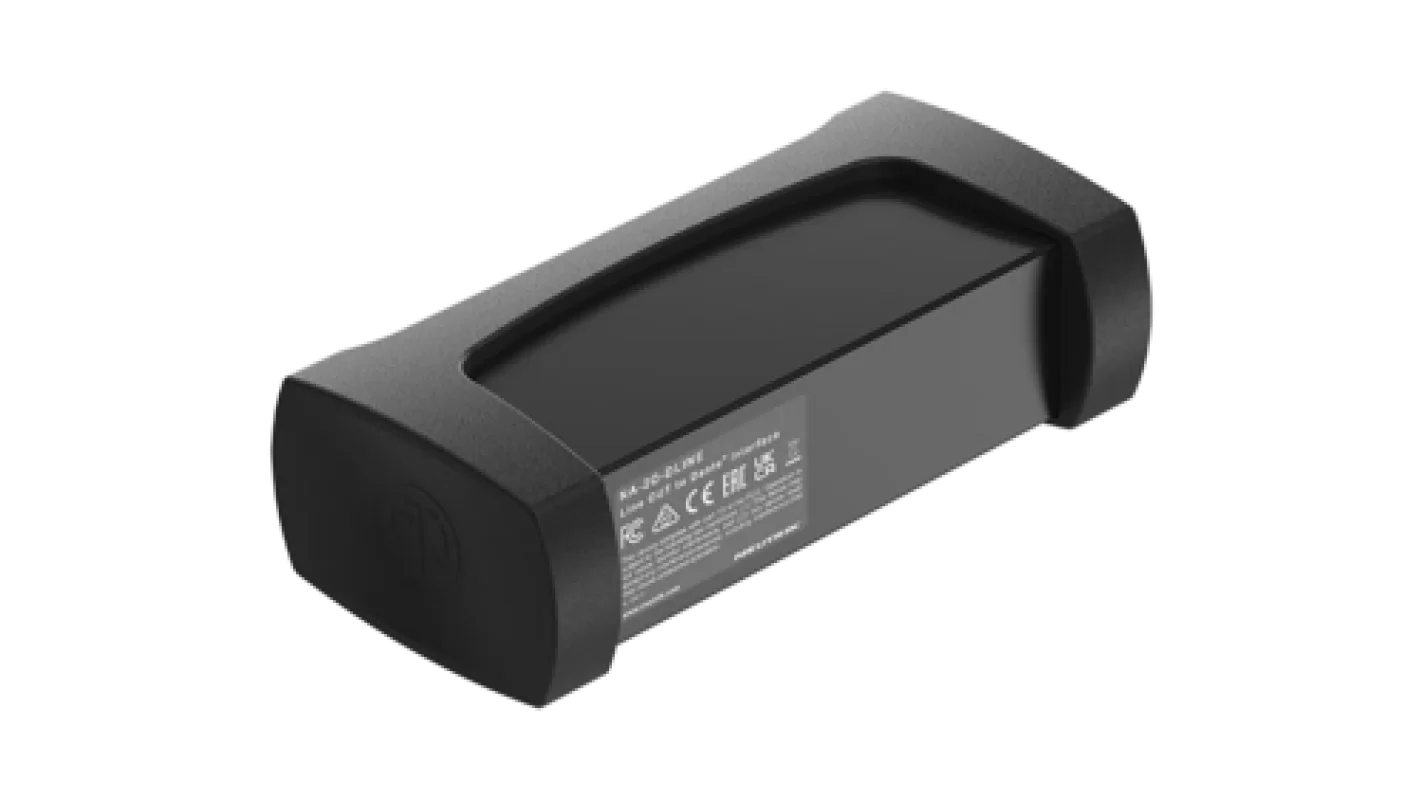

The Neutrik NA-2O-DLINE is designed to convert digital audio signals on the Dante network and provide two independent analog outputs. Its sturdy metal body and locking XLR outputs offer secure and durable use. Additionally, it can operate without the need for an external power source with Power over Ethernet (PoE) support.

Technical Specifications:

• Conversion: Dante (digital) → Analog
• Outputs:

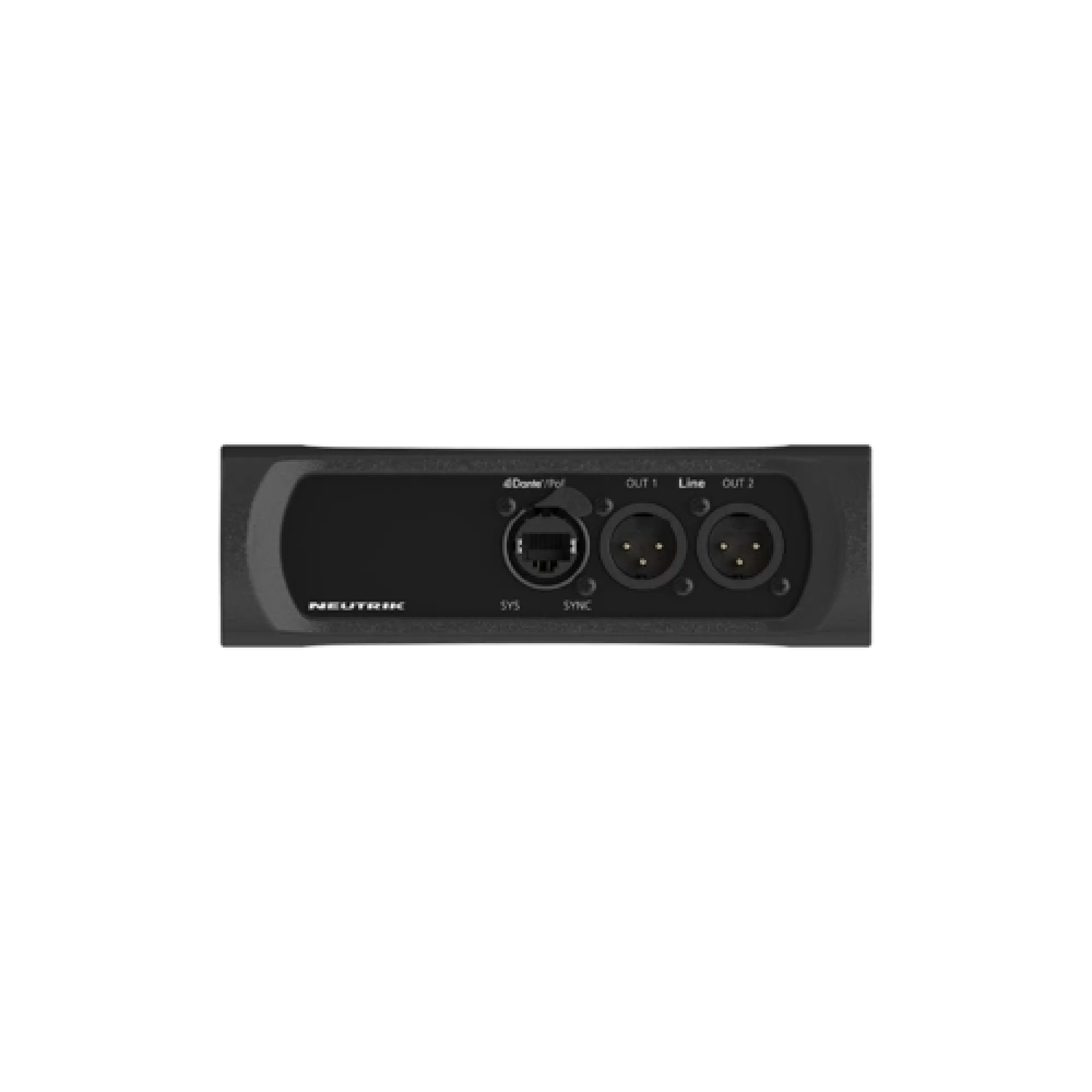

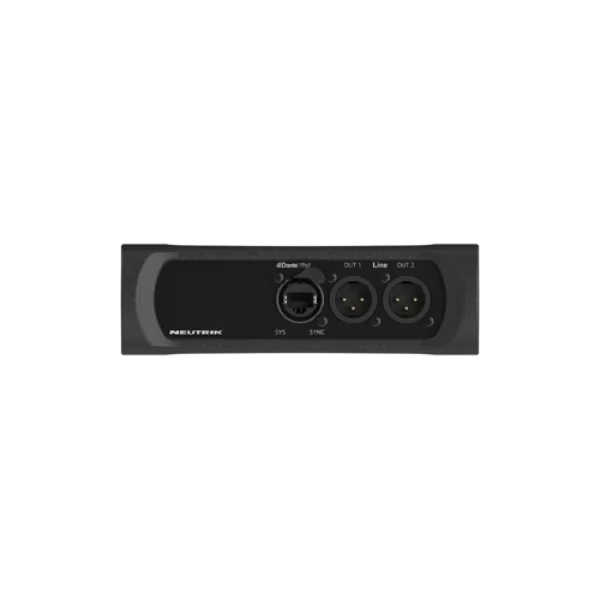

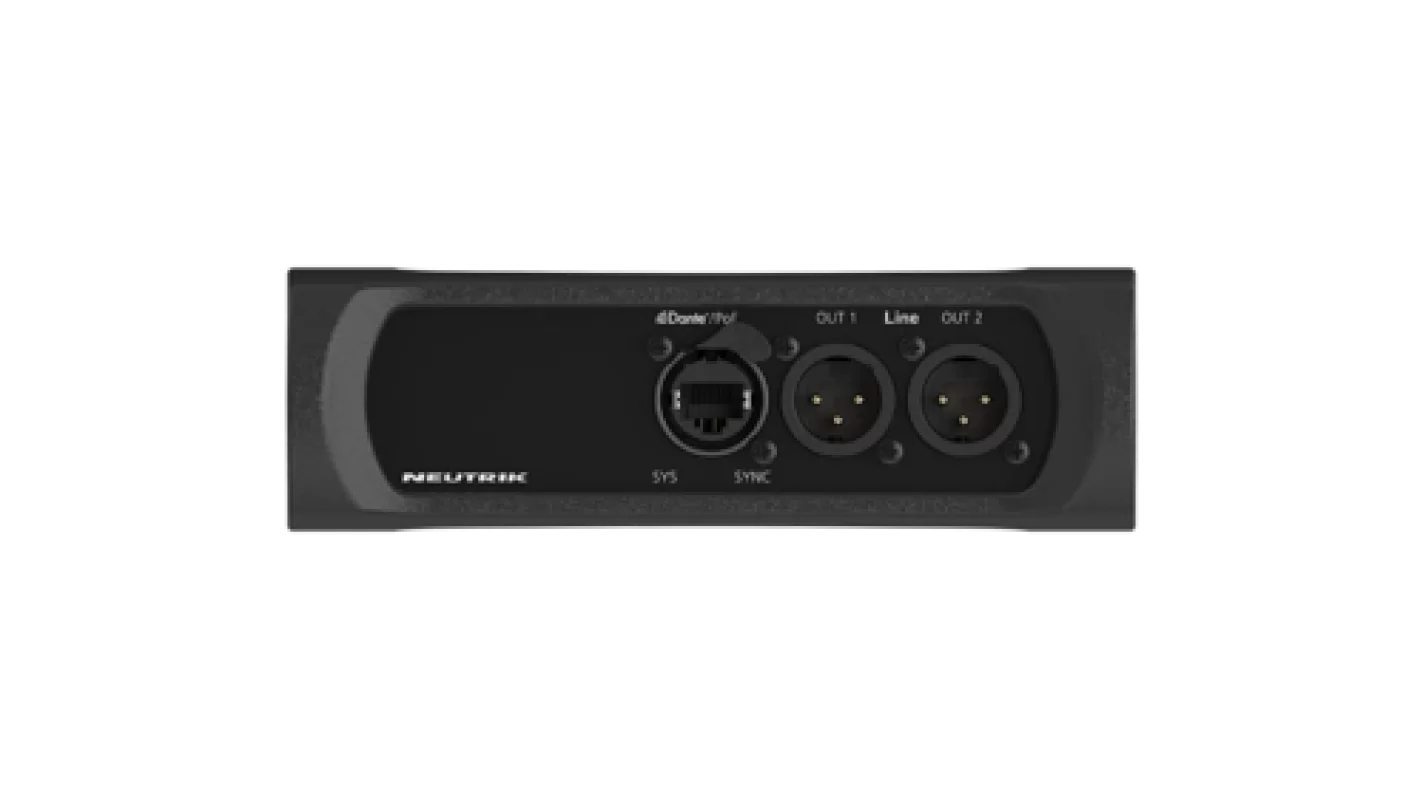

  • 2 x XLR 3P balanced analog output
• Dante Protocol:
  • 1 x Dante port (EtherCON RJ45)
  • Transmission and conversion of audio signals over the Dante network
• Power Supply: Operates with Power over Ethernet (PoE)
• Maximum Audio Resolution: Supports up to 24-bit / 96 kHz
• Maximum Output Level: +24 dBu
• Dynamic Range: 100 dB
• Input Impedance: 20 kOhm
• Protection: Sturdy metal body, locking mechanism on XLR outputs
• Dimensions: Compact design, portable
• Weight: Approximately 0.4 kg
