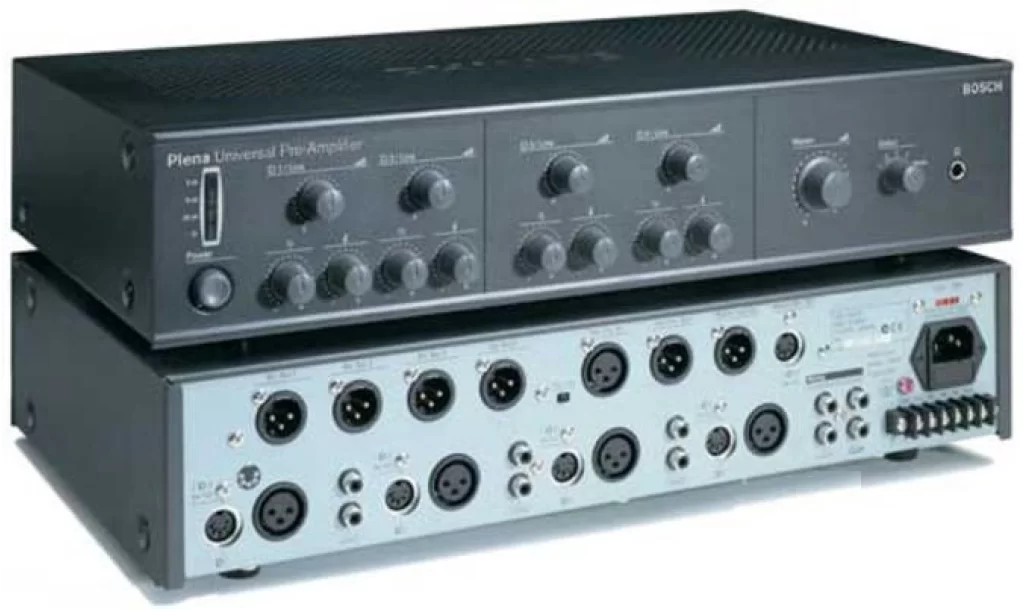

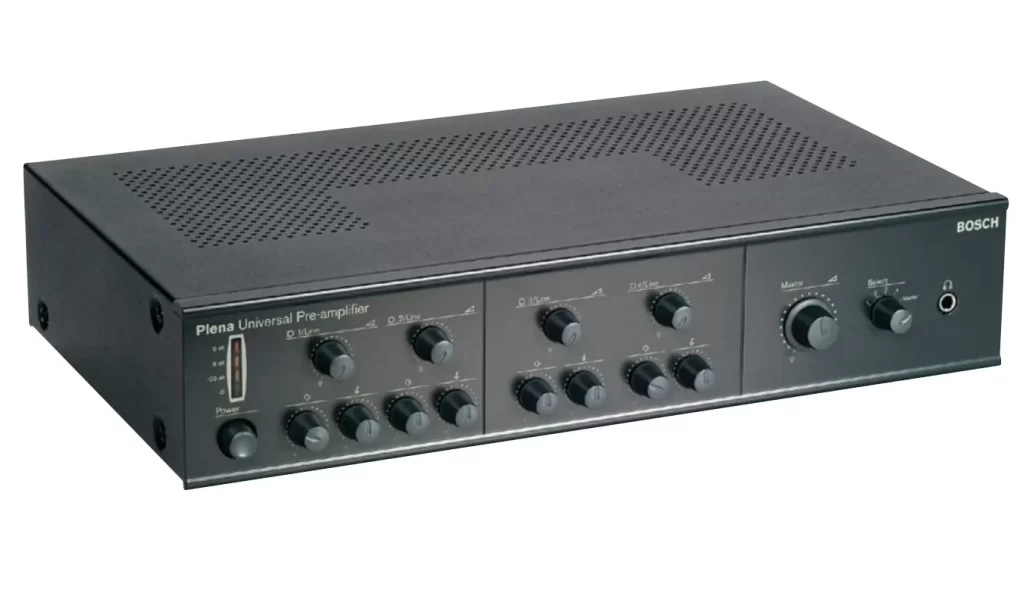

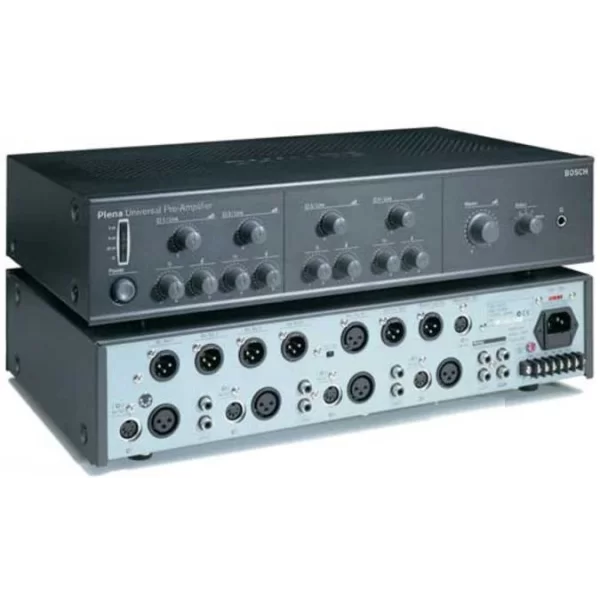

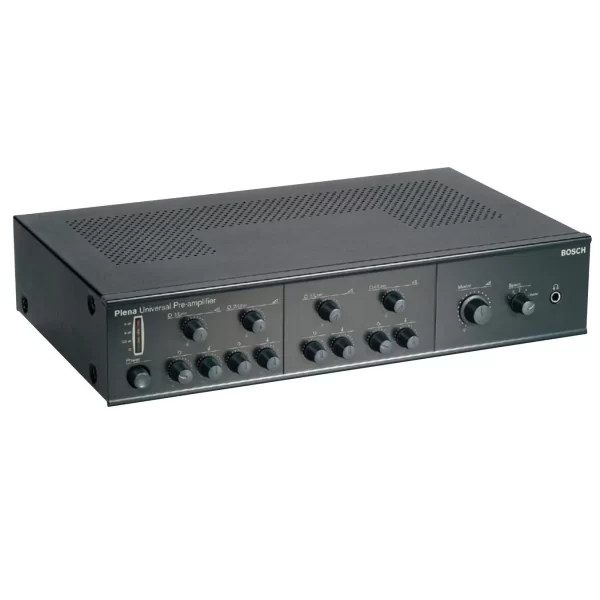

6 microphone/line inputs, plus 3 music source inputs
100 V, telephone and a call station input with priority & VOX
2 zones and 2-channel operation
Voice-activated emergency override
2-tone chime built in, 7 more chimes optional with call station
Outputs for line out, music-only out, and insert point
24 V backup input with built in 24 V charger
Separate tone controls for microphones and music sources
On/off switch
Power on LED
LED VU meter for master output (LEDs for -18, -12 -6, -3, 0 dB)
Master volume knob
Six volume knobs for microphone inputs
Knob for treble level
Knob for bass level
Headphone socket
Two zone selector buttons
Background music button
Back
Dip switches
Chime level
Ducking level
Tel/100 V volume control
Mains power supply
Voltage 115 - 230 VAC ±10%,
50/60 Hz
Power consumption 24 VA
Battery power supply
Voltage 24 VDC ±15%
Current 1 A
Power consumption (maximum) 1 A
Performance
Frequency response 50 Hz to 20 kHz (+0/-3 dB)
Distortion <0.1% @ rated output power,
1 kHz
Low Control Max -12/+12 dB (frequency is
setting dependent)
Hi Control Max -12/+12 dB (frequency is
setting dependent)
RJ-45 input 2 x
Call station input For PLE-2CS(MM)
Wall panel input For PLE-WP3S2Z
Mic/line input 6 x
Input 1 (Push-to-talk contact with ducking
functionality)
5-pin Euro style, balanced,
phantom
3-pin XLR, balanced, phantom
Input 2-6 (VOX with ducking functionality
on input 2)
3-pin XLR, balanced, phantom
Sensitivity 1 mV (mic); 1 V (line)
Impedance >1 kohm (mic); >5 kohm (line)
Dynamic range 100 dB
S/N (flat at max volume) >63 dB (mic)
>70 dB (line)
S/N (flat at min volume/muted) >75 dB
CMRR (mic) >40 dB (50 Hz to 20 kHz)
Speech filter -3 dB @ 315 Hz, high-pass,
6 dB/oct
Phantom power supply 16 V via 1.2 kohm (mic)
Mic/line input 6 x
Speech filter -3 dB @ 315 Hz, high-pass,
6 dB/oct
VOX (input 1 & 2) attack time 150 ms; release
time 2 s
Music inputs 3 x
Connector Cinch, stereo converted to
mono
Sensitivity 300 mV
Impedance 22 kohm
S/N (flat at max volume) >70 dB
S/N (flat at min volume/muted) >75 dB
Headroom >25 dB
Emergency / telephone 1 x
Connector 7-pin Euro style pluggable
screw terminal
Sensitivity telephone input 1 V – 10 V adjustable
Sensitivity emergency input 100 V adjustable
Impedance >10 kohm
S/N (flat at max volume) >65 dB
VOX Threshold 50 mV; attack time
150 ms; release time 2 s
Insert 1 x
Connector Cinch
Nominal level 1 V
Impedance >10 kohm
Zone/Master/Music output 3 x
Connector 3-pin XLR, balanced
Nominal level 1 V
Impedance <100 ohm
Mechanical
Dimensions (H x W x D) 100 x 430 x 270 mm
(19" wide, 2U high)
Mounting Stand-alone, 19" rack
Color Charcoal
Weight Approx. 4.5 kg
Environmental
Operating temperature -10 ºC to +55 ºC
Storage temperature -40 ºC to +70 ºC
Relative humidity <95%
