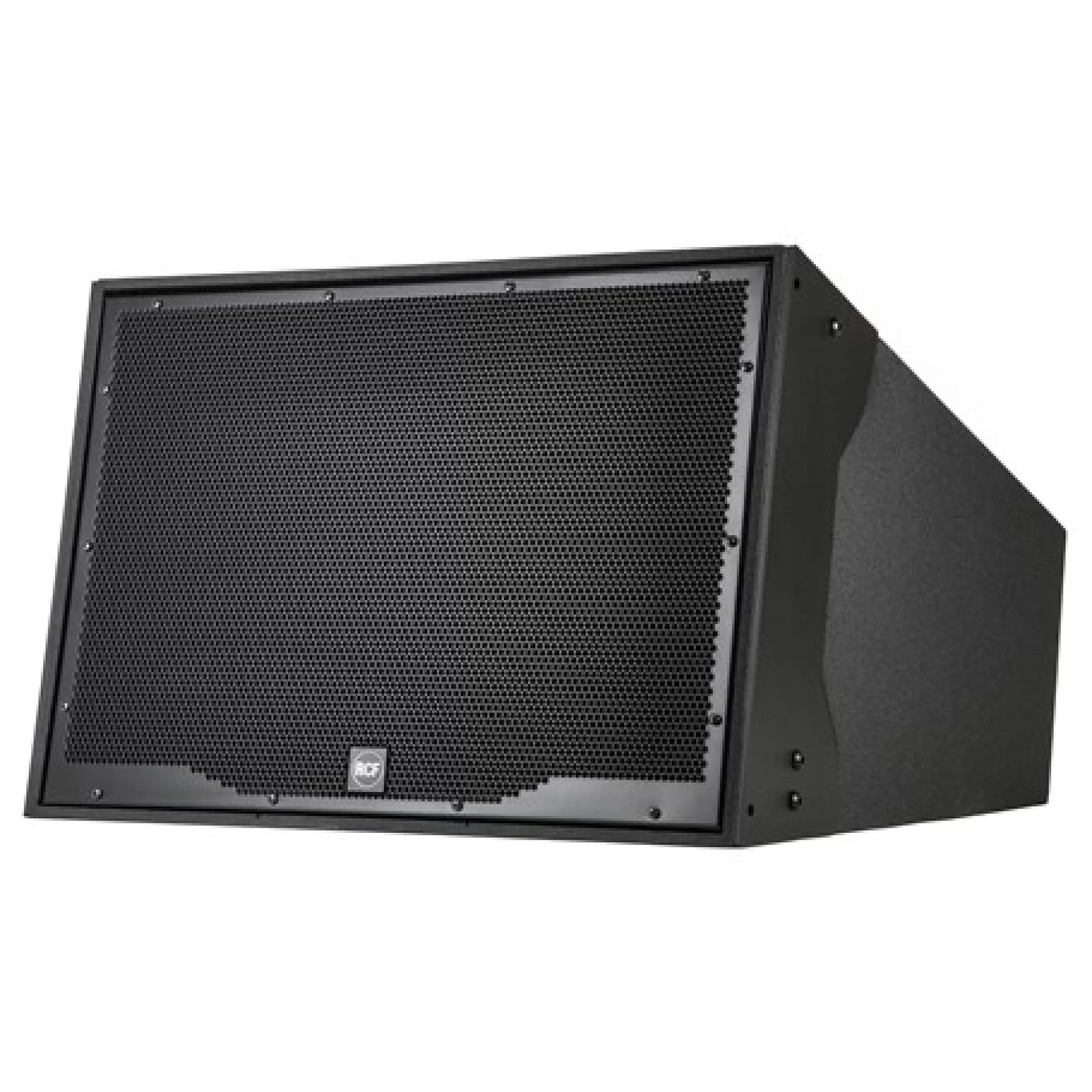

RCF HL 2290 IP55 horn loaded two way array system. 2x12" Woofer+4" CD, 22,5°x90

price for Piece
ORDER WITH WHATSAPP
Fast Shipping

RCF HL 2290 IP55 horn loaded two way array system. 2x12" Woofer+4" CD, 22,5°x90

  • 2 x 12" RCF Precision woofers with 3.5" voice coil
  • RCF Precision 4.0" voice coli compression driver, titanium dome
  • Horn loading on RCF waveguide
  • 141 dB Max SPL
  • System Power rating 1500 Watt RMS (1350 Watt LF, 150 Watt HF)
  • Safe and solid variable array mechanics
  • Baltic Birch Plywood enclosure with internal structural metal bracings
The HL 2290 is a horn loaded two-way full range array system that incorporates a 2 x 12” woofer and a 2.0” exit 4.0” voice coil titanium compression driver for mid distance and long throw applications. The system is very compact and provides very high output and accurate voice and sound reproduction. The system is equipped with the latest generation of RCF precision transducers. The system has a vertical dispersion of 22.5° and is ideally used in point source configuration for mid distance applications or can be clustered with narrower angles for long throw applications. The loudspeaker enclosure shape is trapezoidal and offers a 22.5° coupling angle each side. Connections to the amplifier are made through a watertight Amphenol multi-pole connector. The grille is in custom perforated steel, epoxy coated, with open-cell fibres and water repellent woven fabric backing. The cabinet is constructed of multi-ply Baltic birch marine plywood and finished in a very resistant, textured, polyurea black paint.

PART NUMBER:

  • 13000405
    HL 2290
    EAN 8024530011604
SPECIFICATIONS
Acoustical specifications

FREQUENCY RESPONSE (-10DB):
60 Hz ÷ 20000 Hz

FREQUENCY RESPONSE:
80 Hz ÷ 20000 Hz

MAX SPL @ 1M:
141 dB

HORIZONTAL COVERAGE ANGLE:
90°

VERTICAL COVERAGE ANGLE:
23°

DIRECTIVITY INDEX Q:
16

SYSTEM SENSITIVITY:
113 dB
Power section

NOMINAL IMPEDANCE (OHM):
8 ohm

POWER HANDLING:
1500 W RMS

PEAK POWER HANDLING:
6000 W PEAK

RECOMMENDED AMPLIFIER:
3000 W

CROSSOVER FREQUENCIES:
600 Hz
Transducers

COMPRESSION DRIVER:
1 x 1.4 neo, 4.0 v.c

NOMINAL IMPEDANCE (OHM):
8 ohm

INPUT POWER RATING:
150 W AES, 300 W PROGRAM POWER

SENSITIVITY (DB, 1W @ 1M):
113 dB, 1W @ 1m

WOOFER:
2 x 12 , 3.5 v.c

NOMINAL IMPEDANCE (OHM):
8 ohm

INPUT POWER RATING:
1350 W AES, 2700 W PROGRAM POWER

SENSITIVITY (DB, 1W @ 1M):
104 dB, 1W @ 1m
Input/Output section

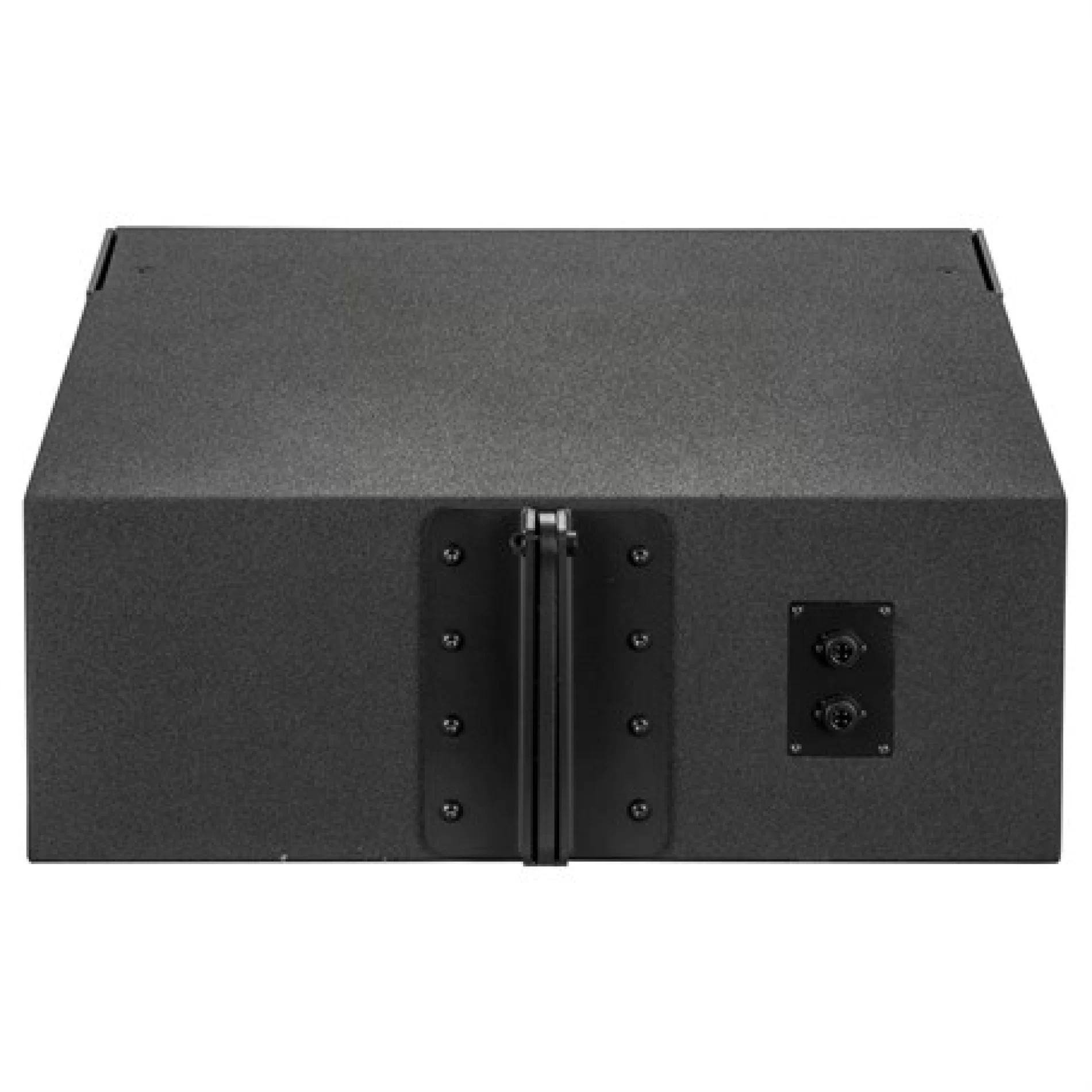

INPUT CONNECTORS:
Amphenol eco/mat IP 67

OUTPUT CONNECTORS:
Amphenol eco/mat IP 67
Standard compliance

CE MARKING:
Yes
Physical specifications

COLOR:
Black

HARDWARE:
Side and rear array rigging point

GRILLE:
Steel

CABINET/CASE MATERIAL:
Baltic birch plywood
Size

WIDTH:
771 mm / 30.35 inches

DEPTH:
635 mm / 25 inches

HEIGHT:
530 mm / 20.87 inches

WEIGHT:
69 kg / 152.12 lbs
Shipping informations

PACKAGE WEIGHT:
70.5 kg / 155.43 lbs

PACKAGE DEPTH:
619 mm / 24.37 inches

PACKAGE WIDTH:
859 mm / 33.82 inches

PACKAGE HEIGHT:
799 mm / 31.46 inches
