RCF TT 22-A II: High Output Active Speaker 131-db 12"+ 1100W

RCF TT 22-A II: Aktif Kabin Hoparlör 131-db 12"+ 1100W

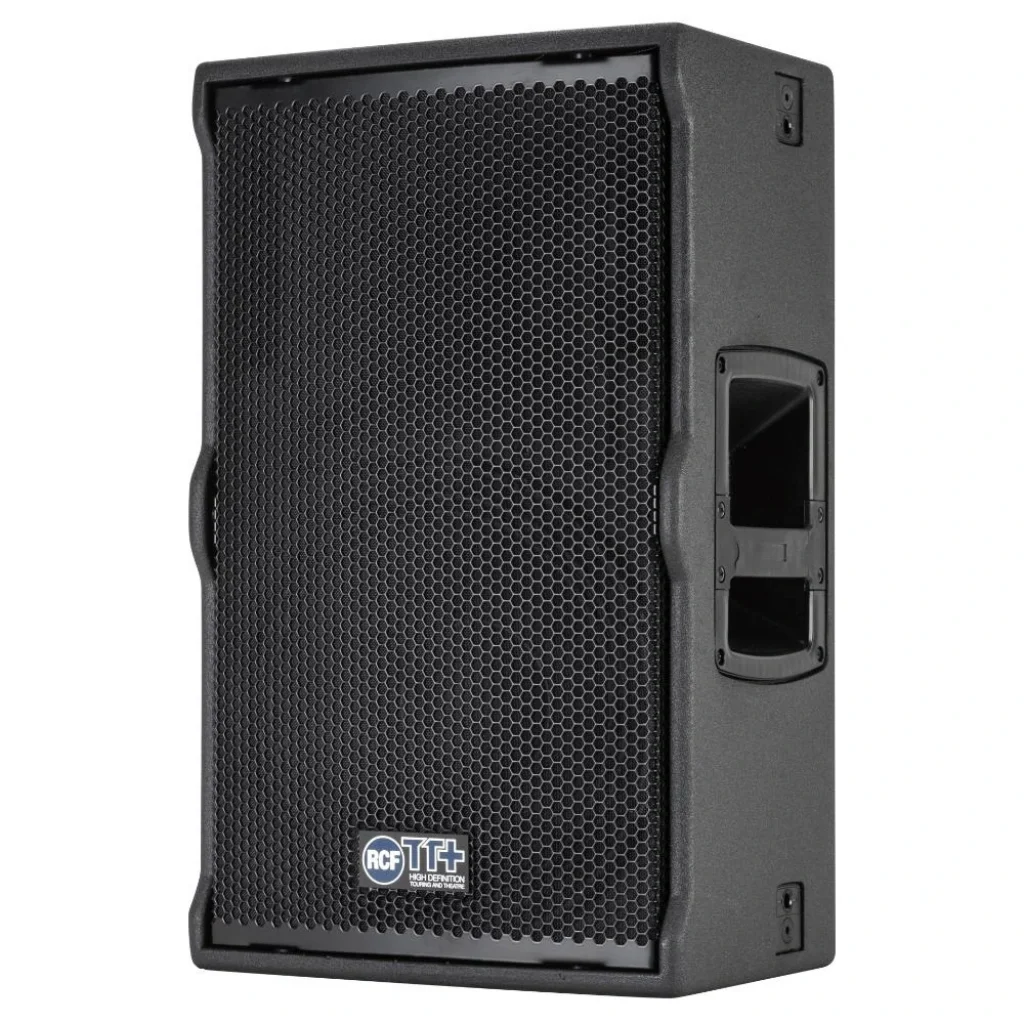

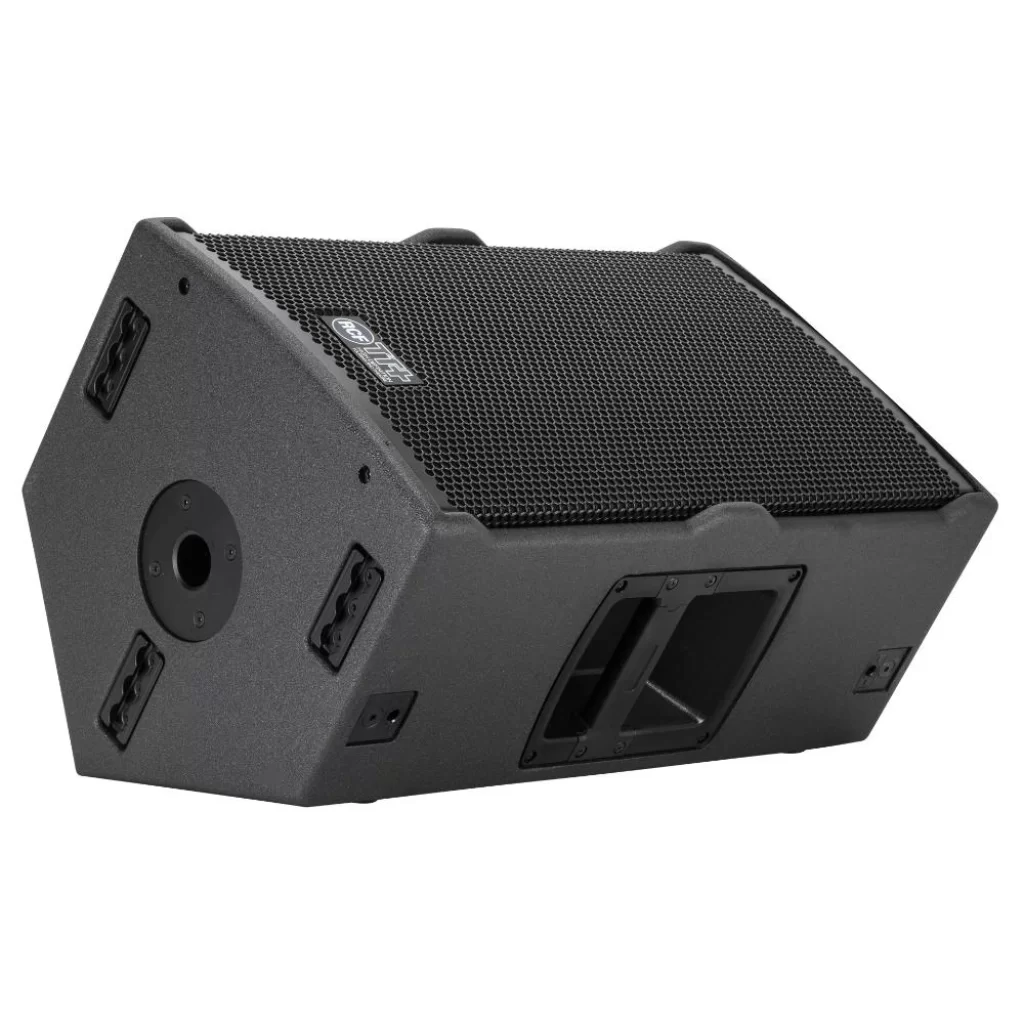

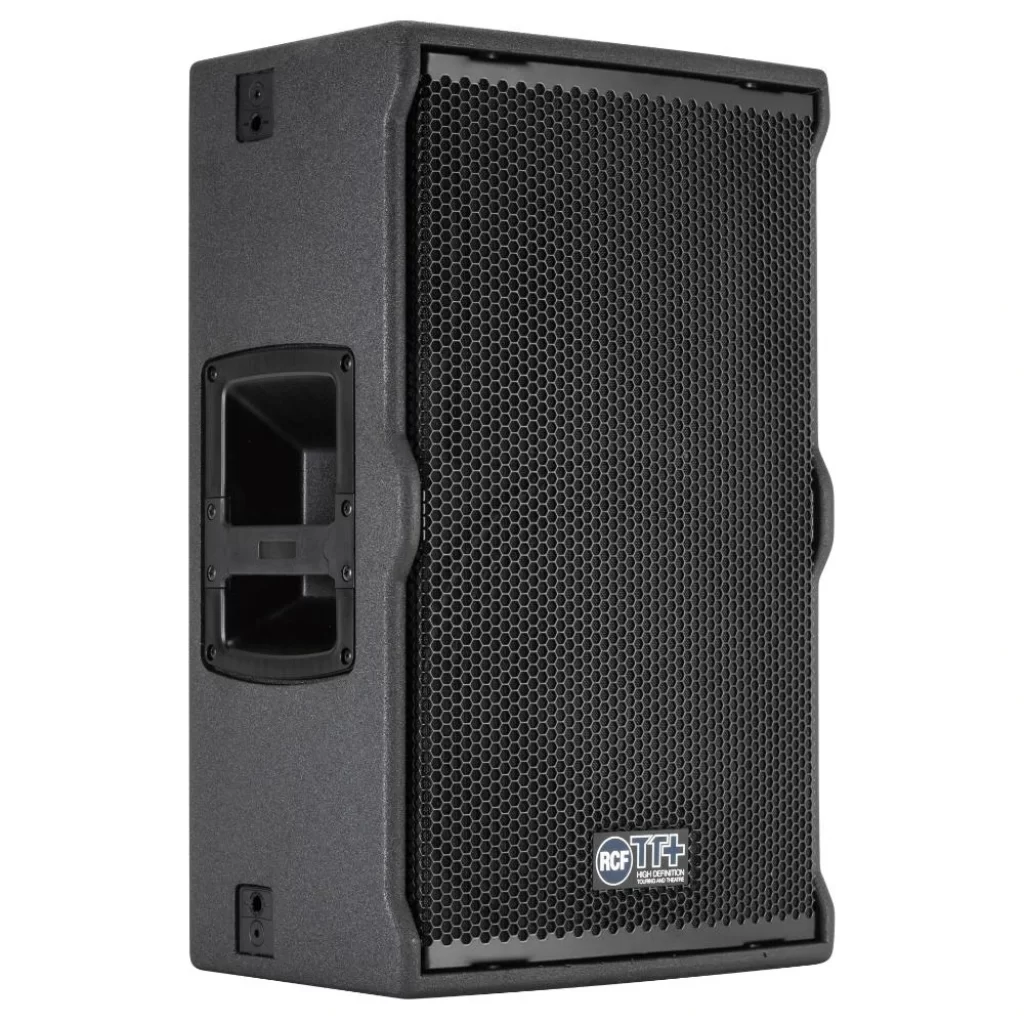

TT22-A II is a 2-way active system featuring a 12” neodymium woofer, 86 mm voice coil in a bass reflex configuration and a 1.4” exit, 75 mm voice coil neo compression driver. An extremely careful acoustic design plus the highest quality transducers and a powerful amplifier make the TT22-A II speaker system the perfect solution from live sound situations to playback and monitoring. The amplifier section features 1100 watt power – 800 watt low frequency, 300 watt high frequency. The cabinet is made of marine Baltic birch plywood and features high-resistance polyurea coating. The cabinets has 2 side handles, 6 x fly-track rigging points, quick lock pin receptacles and a steel pole mount.

Features

• 1100 W Class D Amplifier
• 90 x 60 constant directivity coverage angle
• 12" neo woofer, 3.5" mm voice coil
• 1.5 " neo c. driver, 3.0" mm voice coil
• DSP Processing
• Onboard RDNet Control
• Multifunctional cabinet
• Very high output

• Frequency Response -3 dB:50 Hz ÷ 20000 Hz
• Max SPL:131 dB
• Horizontal coverage angle:90°
• Vertical coverage angle:60°
• Compression Driver:1.5" neo, 3.0" voice coil
• Woofer:12" neo, 3.5" voice coil

• Input signal:Bal/unbal

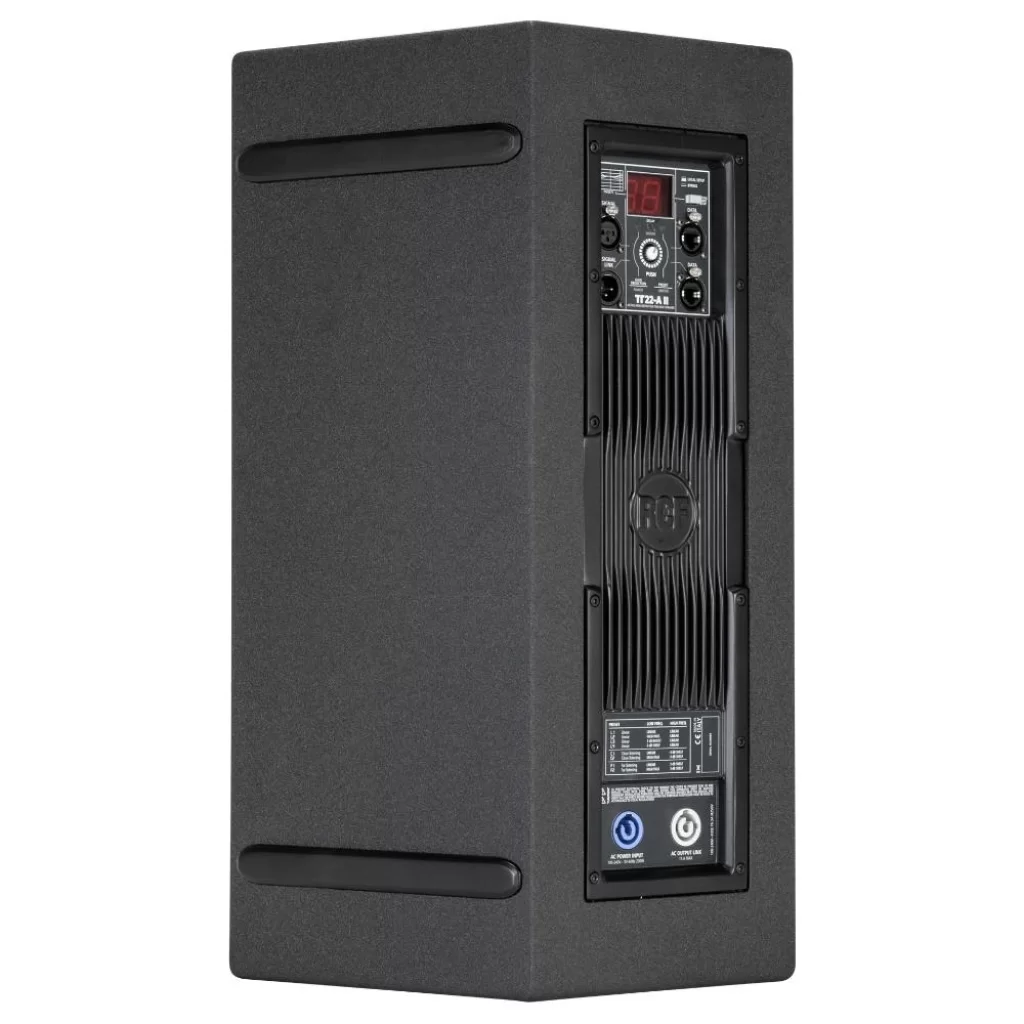

• Input connectors:XLR, RDNet onboard
• Output connectors:XLR, RDNet onboard
• Input sensitivity:-2 dBu / + 4 dBu

• Crossover frequencies:800 Hz
• Protections:Thermal, HF
• Limiter:Fast limiter, dynamic
• Controls:proces., 8 sel. presets

• Total power:1100 W RMS
•    High frequencies:300 W RMS
•    Low frequencies:800 W RMS
• Cooling:Convection
• Connections:Powercon in/out

• Cabinet Material:Baltic birch

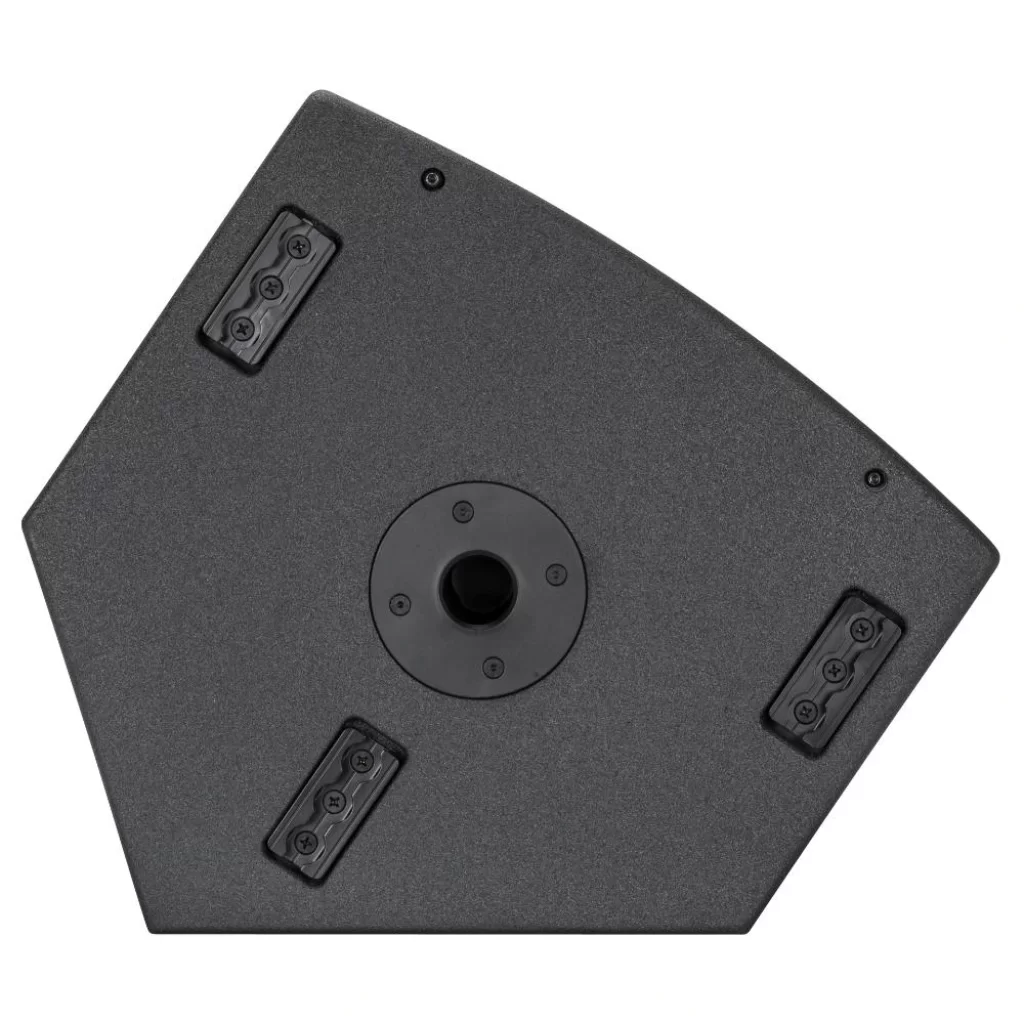

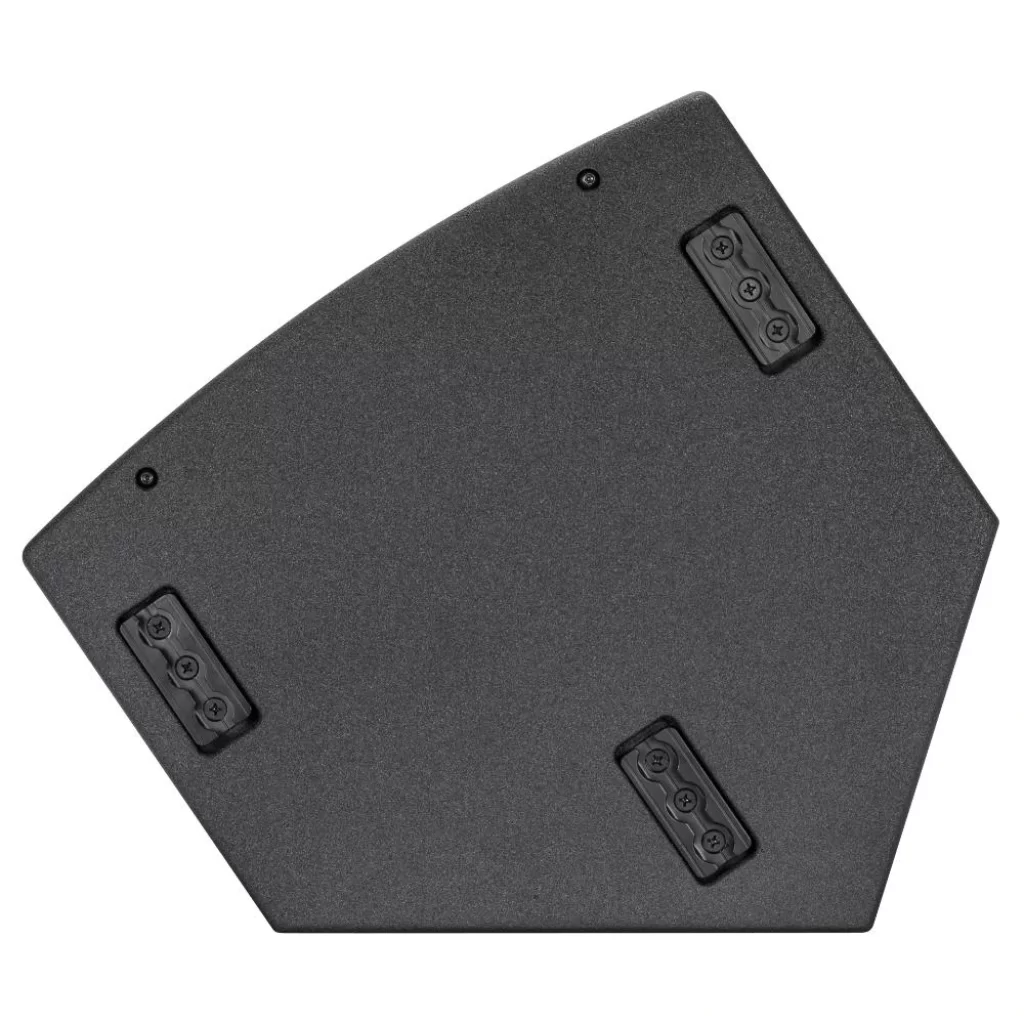

• Hardware:6 x fly tracks, quick lock, pole mount
• Handles:2 on side
• Pole Mount/Cap:Yes
• Colour:Black

• Height:600 / 23.62 mm/inch
• Width:365 / 14.37 mm/inch
• Depth:379 / 14.92 mm/inch
• Net Weight:23.3 / 51.36 kg/lbs

• Shipping weight:25.5/56.21 kg/lbs
