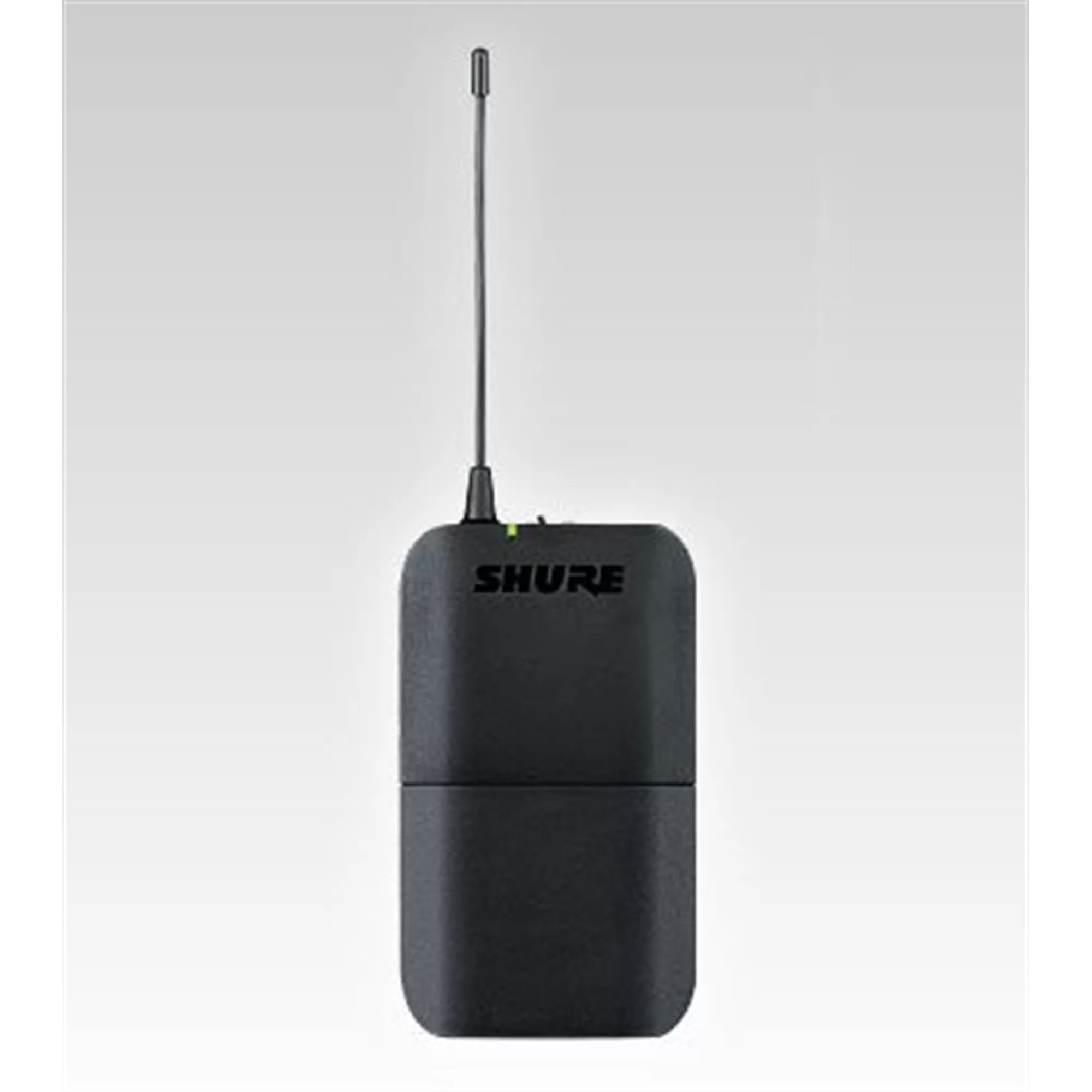

Shure BLX1
The BLX1 Bodypack Transmitter from Shure is designed for use with Shure s BLX wireless systems. It is set to the H8 frequency band and operates between 518 and 542 MHz. It has a TQG input and can be used with Shure lavalier, headset, earset and instrument microphones. With the optional WA302 adapter cable, the BLX1 can be used as a transmitter for guitar. The unit has a top panel mounted on/off switch as well as volume control for quick access while speaking or performing. The BLX1 is powered by the two included AA batteries for up to 14 hours.
- For Use with BLX Wireless Systems
- For Lavalier, Headset, Instrument Mics
- For Guitar Cables
- TQG Connection
- 14 Hours Battery Life
- Includes 2x AA Batteries
Frekans
- H8 - 518 / 542 Mhz
- J10 - 584 / 608 Mhz
- K12 - 614 / 638 Mhz
- M15 - 662 / 686 Mhz
BLX1 Bodypack Transmitter
Audio Input | Gain: -16 dBV (Maximum), 10 dBV (Minimum |
Gain Adjustment Range | 26 dB |
Input Impedance | 1 MΩ |
RF Output | 10 mW, Typical |
Housing | Molded ABS |
Power Requirement | 2x LR6 AA Batteries, 1.5 V Alkaline |
Battery Life | Up to 14 Hours |
Dimensions (H x W x D) | 4.3 x 2.5 x 0.8" (110 x 64 x 21 mm) |
Weight | 2.6 oz (75 g) |
