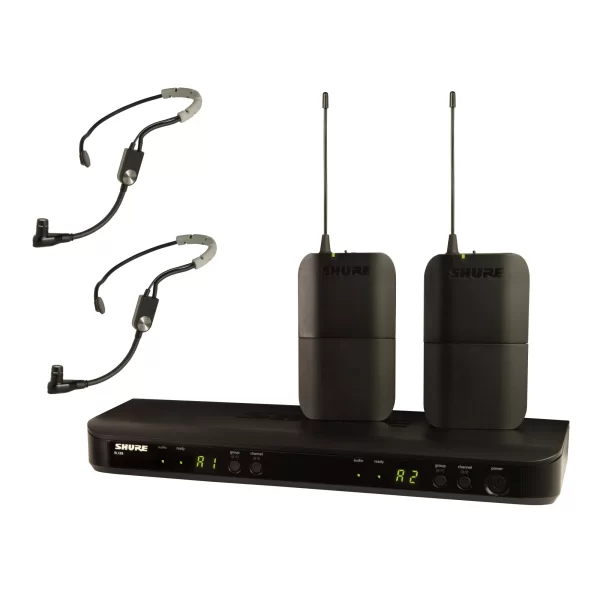

Shure BLX188E/SM35 T11 Wireless System COMBO
Box Contents
- 2x SM35-TQG Headset
- 2x BLX1 Beltpack Transmitter
- BLX88E Dual Receiver
- PS24E Power Adapter

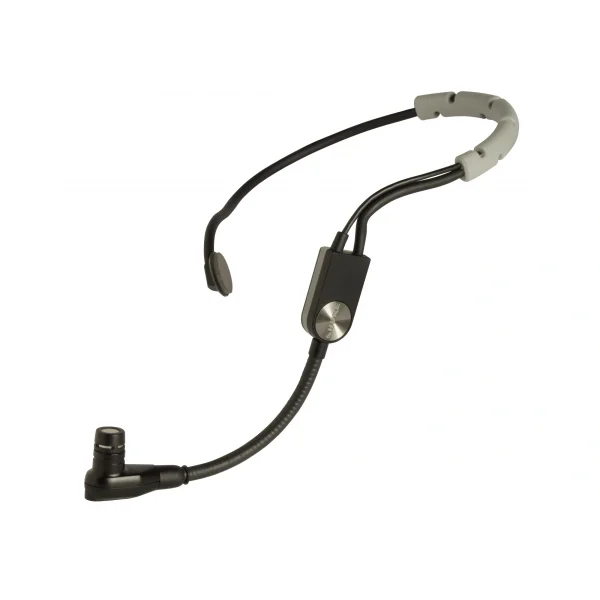

SM35-TQG Headset
- Capsule Type: Condenser
- Directional Characteristics: Cardioid
- Frequency Range: 45 Hz - 20 kHz
- Sensitivity: -59 dBV/Pa
- Self Noise: 39 dB(A)
- Maximum Sound Pressure Level: 153 dB
- Weight: 72 g

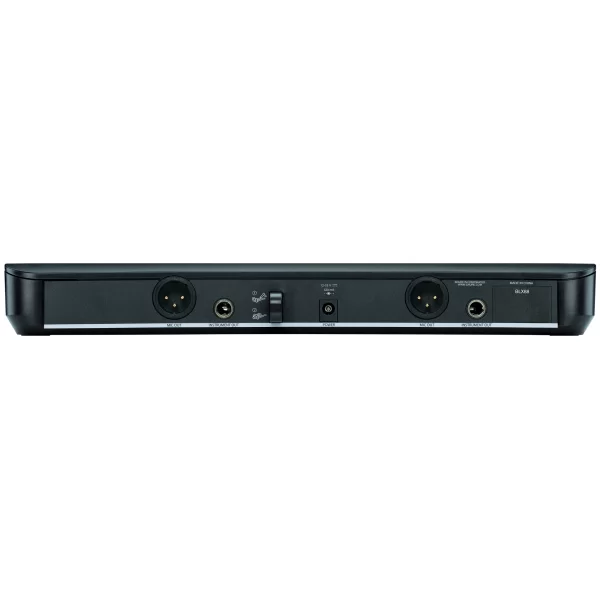

BLX88E T11 Dual Receiver
- Band: Optional
- Analog Dual Receiver
- Microprocessor-controlled antenna diversity
- QuickScan for easy finding of the best open frequency
- 6.3 mm jack and XLR outputs
- Dual-color audio status LED
- Output Impedance:
- XLR: 200 Ω
- 6.3 mm jack: 50 Ω
- Audio Output Level (1 kHz ±33 kHz deviation):
- XLR: –27 dBV (with 100 kΩ load)
- 6.3 mm jack: –13 dBV (with 100 kΩ load)
- RF Sensitivity: 105 dBm (12 dB SINAD)
- Adjacent Channel Rejection: >50 dB (typical)
- Body: ABS material
- Dimensions: 40 mm x 388 mm x 116 mm (H x W x D)
- Weight: 429 g

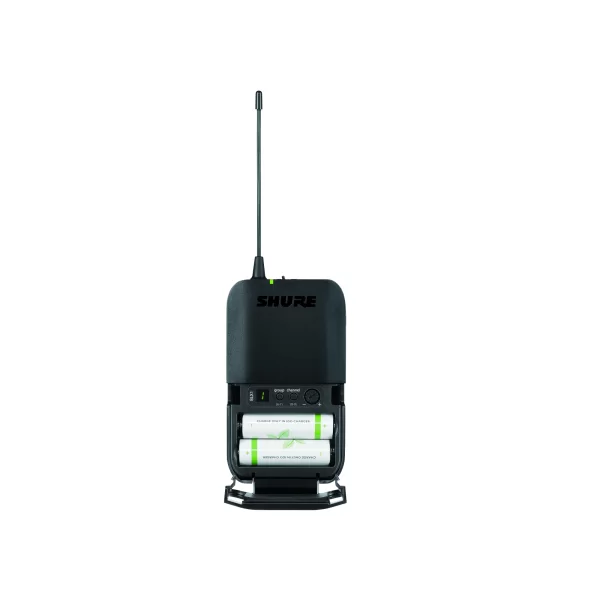

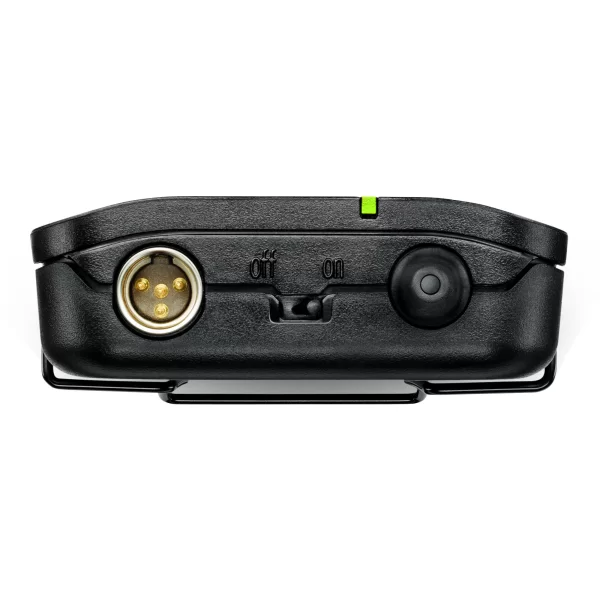

BLX1 T11 Beltpack Transmitter
- Band: Optional
- Operating status and battery status LED indicators
- Quick and easy frequency setup
- Up to 14 hours of battery life with 2 AA batteries
- Range up to 100 meters
- RF Output Power: 10 mW
- Maximum Gain: -16 dBV
- Minimum Gain (0 dB): +10 dBV
- Gain Adjustment Range: 26 dB
- Input Impedance: 1 MΩ
- Body: ABS plastic body
- Power Source: 2x AA batteries (1.5V; Alkaline)
- Battery Life: Up to 14 hours
- Dimensions: 110 mm x 64 mm x 21 mm (H x W x D)
- Weight: 75 g (without batteries)
