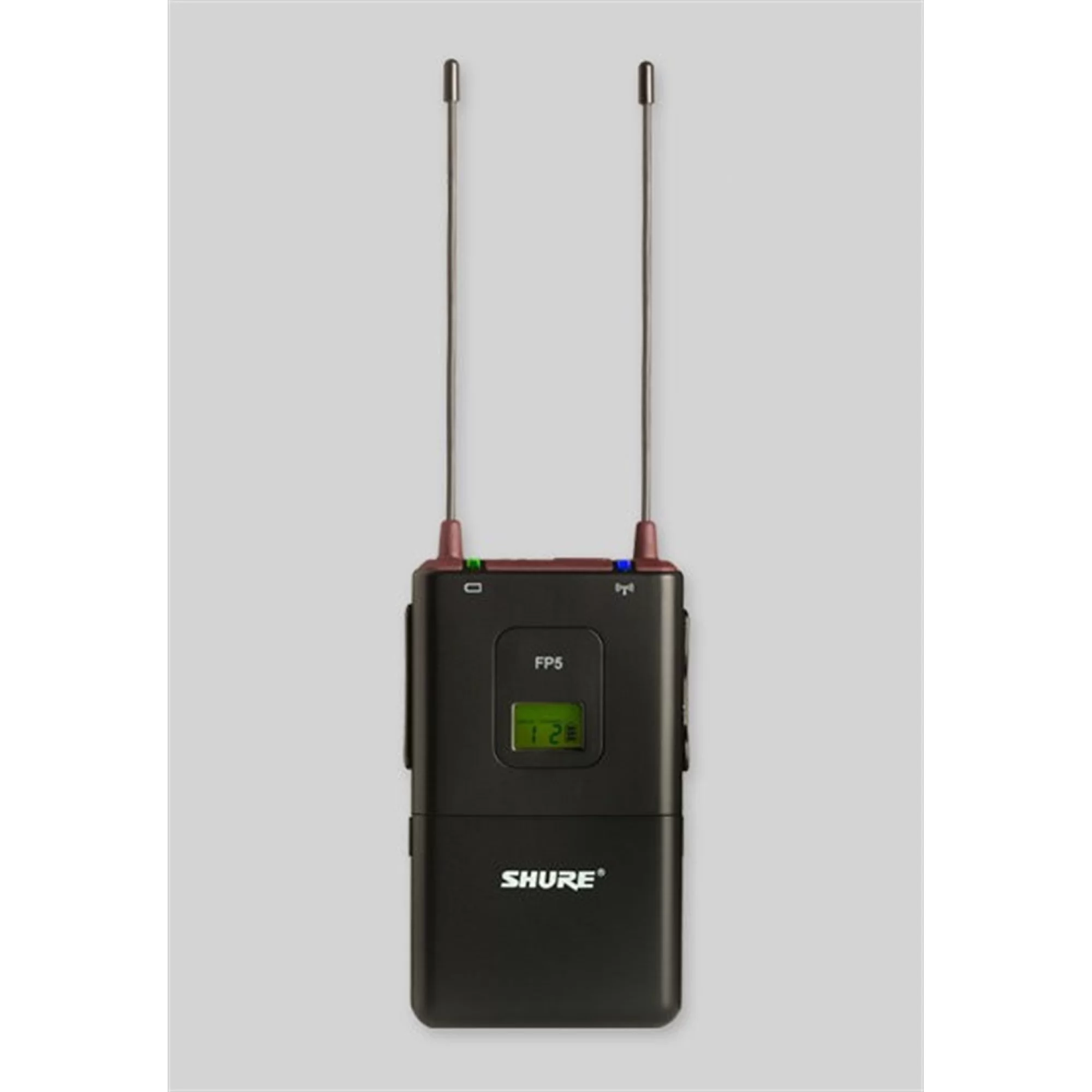

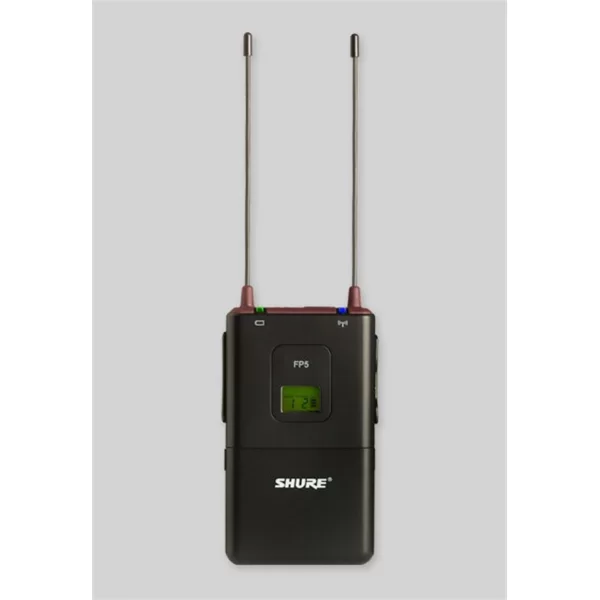

The FP5 receiver is a lightweight, durable, battery-powered portable receiver that is designed for on-camera mounting. Featuring Automatic FrequencyThis is how many times a sound or radio wave oscillates in one second. Selection and Automatic Transmitter Setup, diversityWireless “diversity” receivers feature two separate antennas for consistent signal reception.
Read moreGo to the glossary antennas, and output via TA3F cable to either XLR or 1/8” connectors. For use with FP Wireless and SLX Wireless.
- Power supply: LR6 AA batteries, 1.5 V
- Maximum output level: –5 dBV (into 600 Ω load) mW
- Further specs:
- Dimensions: 108 mm H x 64 mm W x 19 mm D
- Weight: 81 g
- Housing: Molded polycarbonate case
- Audio Output Level : TA3F connector, -5 dBV (into 600 Ω load)
- Output ImpedanceThis describes how resistant an electrical circuit is to the flow of electricity passing through it.Read moreGo to the glossary: TA3F connector: 200 Ω
- SensitivityThis is how mich signal a microphone produces for a given amount of sound.: -108 dBm for 12 dB SINAD, typical
- Operating Range Under Typical Conditions: 100m (300 ft.)
- Audio Frequency ResponseThis is the range of frequencies, from the lowest to the highest, that a mic can pick up.Read moreGo to the glossary (±2 dB): Minimum: 45 Hz, Maximum: 15 kHz
