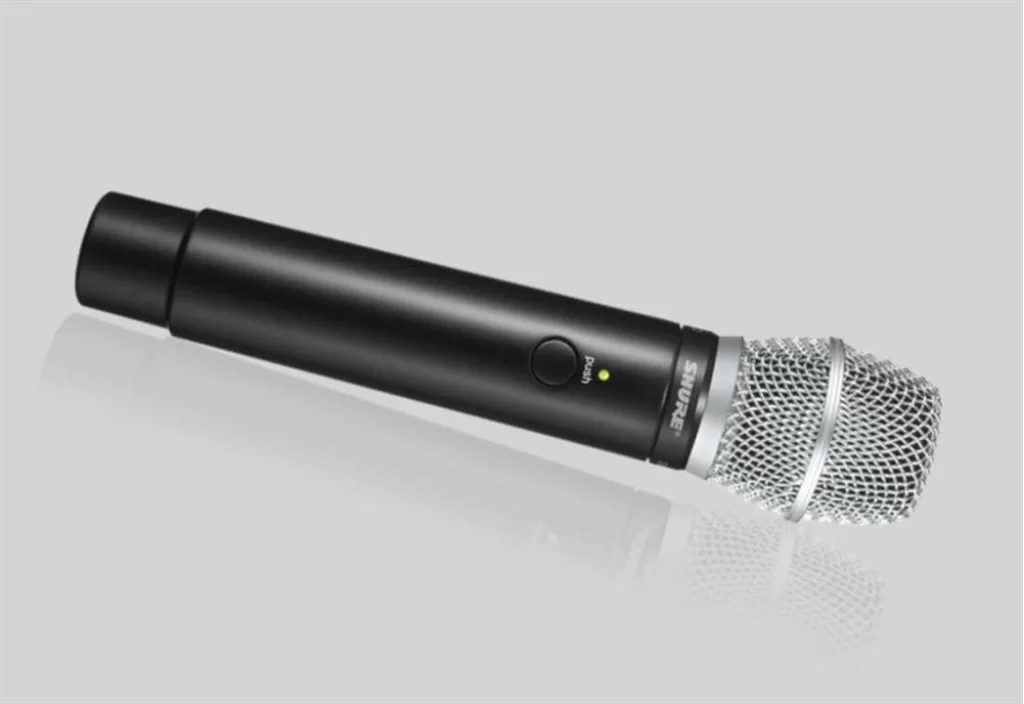

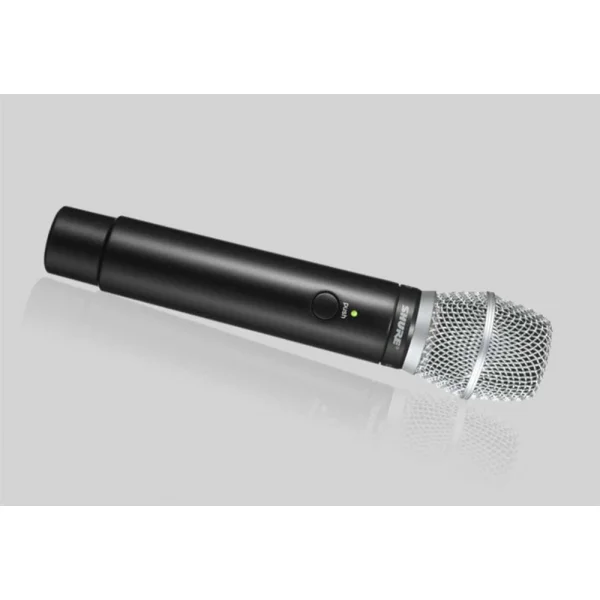

The MXW2 is a handheld transmitter compatible with Microflex™ Wireless Systems. With lightweight but durable construction and integrated Read href="/en/support_download/glossary#Diversity">Read moreGo href="/en/support_download/glossary">Go to the glossary" data-html="true" data-original-title="" data-toggle="popover" style="border-bottom-width: 1px; border-bottom-style: dotted; border-bottom-color: rgb(0, 0, 0); cursor: pointer;" title="">diversity antennas, the MXW2 delivers vivid lifelike sound, intelligent wireless performance, encrypted transmission, and advanced rechargeability for presentation and conferencing applications. Available with trusted Shure microphone cartridges, including the legendary SM86.
Features
- Interchangeable microphone cartridges: Available with the SM58®, SM86, Beta 58A® and VP68 signature Shure microphones
- Dual transmit antennas: Maximizes transmission strength depending on hand placement
- Bi-directional wireless: Enables real time remote control of all wireless microphone settings
- Programmable mute button: Customize local or remote muting behavior per application, with options including push-to-talk, push-to-mute, and external control.
- Standby mode: Enabled remotely during breaks or periods of inactivity to significantly extend battery life when not in use.
- Wide working range: Reliable wireless coverage extends up to 100 feet (30 meters)
- Range warning alert: Emits beeping sound when range limit is exceeded
- Easy transmitter linking: Assign the microphone to an Access Point channel by simply docking it into a Networked Charging Station and pressing “link”
- Encrypted wireless: AES 256-bit encryption for secure transmission.
- Advanced Li-ion batteries: Smart lithium-ion internal batteries provide up to 9 hours of continuous use, charge to full in 2 hours, and enable remote monitoring over the network of remaining runtime and charge status in hours and minutes
- USB charging: Connects to any standard USB power source for “always on” usage.
- Anti-roll accessory: Included rubber ring accessory keeps the mic from rolling off surface
Tech Specs
- Transmitter Type: Handheld
- Battery, endurance: Up to 15 hours
- Further specs:
Gain Adjustment Range
-25 to +15 dB (in 1 dB steps)
Maximum Input Level(Mic gain @ -16 dB)
−9 dBV
Maximum Headphone Output Power (1kHz @ 1% distortion, peak power, @16Ω)
17.5 mW
Antenna Type
Internal, Spatial Read href="/en/support_download/glossary#Diversity">Read moreGo href="/en/support_download/glossary">Go to the glossary" data-html="true" data-original-title="" data-toggle="popover" style="color: rgb(69, 69, 69); border-bottom-width: 1px; border-bottom-style: dotted; border-bottom-color: rgb(0, 0, 0); cursor: pointer;" title="">Diversity, Linear Polarization
Battery Type
Rechargeable Li-Ion
Battery Life
Up to 15 hours
Charge Connector
USB 3.0 Type A
Housing
Molded Plastic
Recommended Storage Temperature Range
-29°C (-20°F) to 74°C (165°F)
Microphone Capsule
SM58®
Configuration
Unbalanced
Input Read href="/en/support_download/glossary#Impedance">Read moreGo href="/en/support_download/glossary">Go to the glossary" data-html="true" data-original-title="" data-toggle="popover" style="color: rgb(69, 69, 69); border-bottom-width: 1px; border-bottom-style: dotted; border-bottom-color: rgb(0, 0, 0); cursor: pointer;" title="">Impedance @ 1 kHz
>20 kΩ
Dimensions
226 mm x 51 mm (8.9 in. x 2.0 in.) L x Dia. including SM58 microphone capsule
Weight
323 g (11.4 oz.) with batteries, including SM58 microphone capsule
