SHURE Mxwanı8 8-Kanal Audio Ağ Arabirim

price for Piece
Fast Shipping

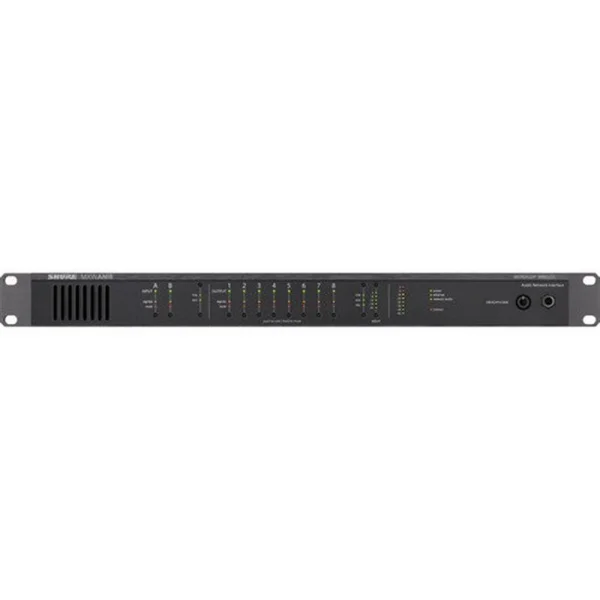

The MXWANI8 8-Channel Audio Network Interface from Shure is designed to connect and distribute Shure s Microflex wireless system to conference room AV systems. It is Dante network compatible and features 8 analog outputs as well as a 4-port gigabit Ethernet switch. The MXWANI8 can be controlled through either its front-panel or through a networked Mac or PC running the Microflex Wireless Control software.

The unit can provide power over Ethernet (PoE) through its first port, allowing you to power such components as the Microflex MXWAPT transceiver. You can monitor your audio via the front-panel 1/4" headphone output.

  • Four port gigabit switch: Optimized port configurations for connection to the Access Point Transceiver and Networked Charging Stations, third party control systems, and corporate networks
  • Ethernet connectivity: Send audio and control signals over long cable runs of up to 300 feet or anywhere over a corporate network
  • Power over Ethernet: Port 1 of the rear panel switch supplies power over Ethernet to the Access Point Transceiver for simplified installation
  • Corporate uplink mode: Link to the corporate network for remote control of system settings while keeping audio off the network for security and to reduce bandwidth
  • Front panel controls: Mute or solo channels and set input/output levels easily from the front panel
  • PC/Mac software control: Access the Microflex Wireless Control Software from a networked computer for input/output levels and port configuration
  • Dante networking: Transports low latency digital audio received from wireless microphones over Ethernet to any other Dante-equipped device
  • Headphone output: Solo audio signal on any channel



Audio
Frequency Response20 Hz to 20 kHz
Dynamic RangeAnalog-to-Dante: 113 dB (20 Hz to 29 kHz, A-weighted, typical)
Dante-to-Analog: 110 dB (20 Hz to 29 kHz, A-weighted, typical)
Output NoiseLine: −84.5 dBV (20 Hz to 29 kHz, A-weighted, typical)
Aux: −95.2 dBV (20 Hz to 29 kHz, A-weighted, typical)
Mic: −106.5 dBV (20 Hz to 29 kHz, A-weighted, typical)
THD + N< 0.05% (20 Hz to 20 kHz@ +4dBu analog input, -10 dBFS digital input)
PolarityNon-inverting, any input to any output
inputs
ConfigurationActive balanced
Impedance10.6 kΩ
Clipping LevelLine: 23.8 dBV (minimum)
Aux: 10.8 dBV (minimum)
Outputs
ConfigurationActive balanced
Impedance310 Ω
Clipping LevelLine: 26.2 dBV
Aux: 16.2 dBV
Mic: −3.8 dBV
Headphone Output1/4" (6.3 mm) TRS, 100 mW, 350 Ω, dual mono (will drive stereo phones)
DSP
