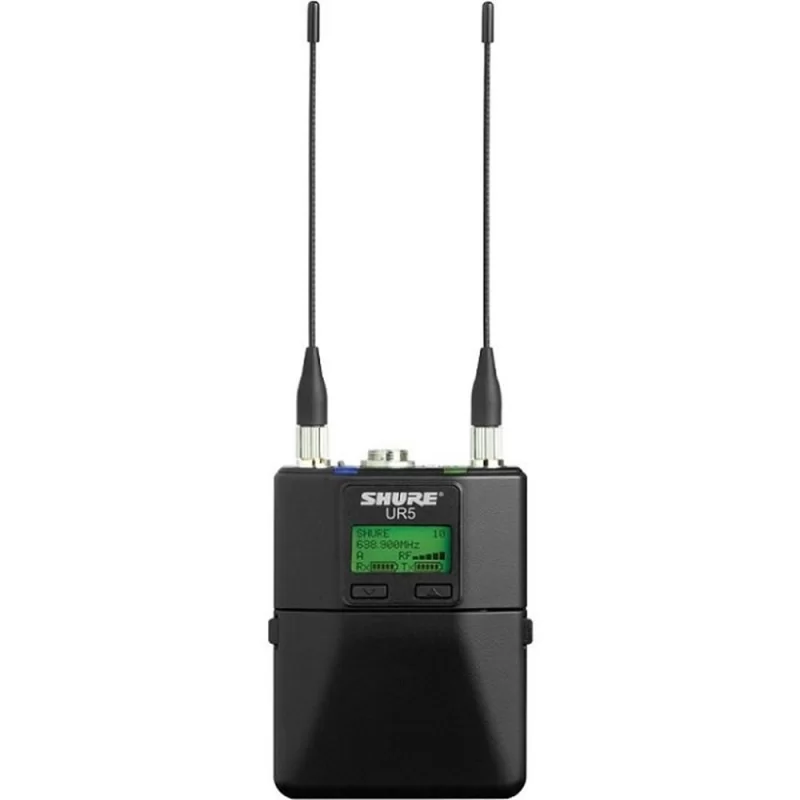

SHURE Ur5 Kamera Üstü Portatif Telsiz Mikrofon Alıcısı

UHF-R Wide-Band Tuning

2400 selectable frequencies across 60 MHz bandwidth

Full bandwidth scan & sync: Scan results displayed on receiver

Audio Reference Companding for crystal-clear audio

Transmission range of up to 150 meters (line of sight)

MTx (Multi-Transmitter) Mode

Populate a group of multiple transmitters with separate frequencies in available spectrum

Store transmitter & frequency information on UR5 for quick recall

Use UR5 to "hot-swap" between up to 20 transmitters at the touch of a button

Mounting Options

Camera shoe mount (included)

Stand strap mount (included)

Anton/Bauer mounting accessories (available separately)

DC Power

12V DC power insert

AFP521DC Anton/Bauer plate mounting accessory distributes DC power to UR5 from camera

2 AA Batteries (5+ hours)

Intended as backup option

Additional Features

Headphone monitoring output jack

Tone generator

Mic & Aux-level balanced output

Feature-rich, hands-on navigation control with backlit LCD screen





Carrier Frequency Range	470-952 MHz (varies by region)
Modulation	FM, ±45 kHz maximum deviation
Antenna	Switching diversity
Dynamic Range	>100 dBm=, A-weighted
RF Sensitivity	-106 dBm for 12 dB SINAD, -88 dBm for 30 dB SINAD
Image Rejection	>100 dB (typical)
Spurious Rejection	>80 dB (typical)
Squelch Threshold	30 dB SINAD (±3 dB) normal setting
Channels	Per band: 40 (band dependent)
Tuning	60-72 MHz (band dependent)
Frequency Stability	±2.5 ppm
Pilot Tone	UHF-R® Mode: 32 kHz tone key pilot
Frequency Response	50Hz - 16kHz
Audio THD + Noise	(ref. ±20 kHz deviation @1 kHz) < 0.4% THD (typical)
Signal-to-Noise Ratio	90dB (typical)
Compandor System	Patented Shure Audio Reference Companding
Audio Outputs	Camera Output Electronically balanced Configuration: mono, TA3 Maximum output power: adjustable -35dBV to +10dBV peak Pin Assignment: Pin 1 = Gnd, Pin 2 = Hot, Pin 3 = Cold Headphone Output Adjustable range Configuration: Unbalanced mono (L=R), 1/8" Minimum load impedance: 9.5 ohms Impedance: 3.5 ohms Maximum output power: 100mW Pin Assignment: Tip = Hot, Ring = Hot, Sleeve = Gnd
Operating Temperature	0°to +135° F (-18°C to +57°C)
Battery Life	4 hours AA Alkaline 8 hours Shure Rechargeable Lithium Ion
Weight	7.05oz (200g) (with AA batteries)
Dimensions	3.26 x 2.55 x 0.88" (83 x 65 x 22mm)
