The new Mini Stagebox range from Harmans Soundcraft provides a simple solution to stage connectivity offering a lower-cost option for many systems where the modularity and configurability of the larger systems are not required.

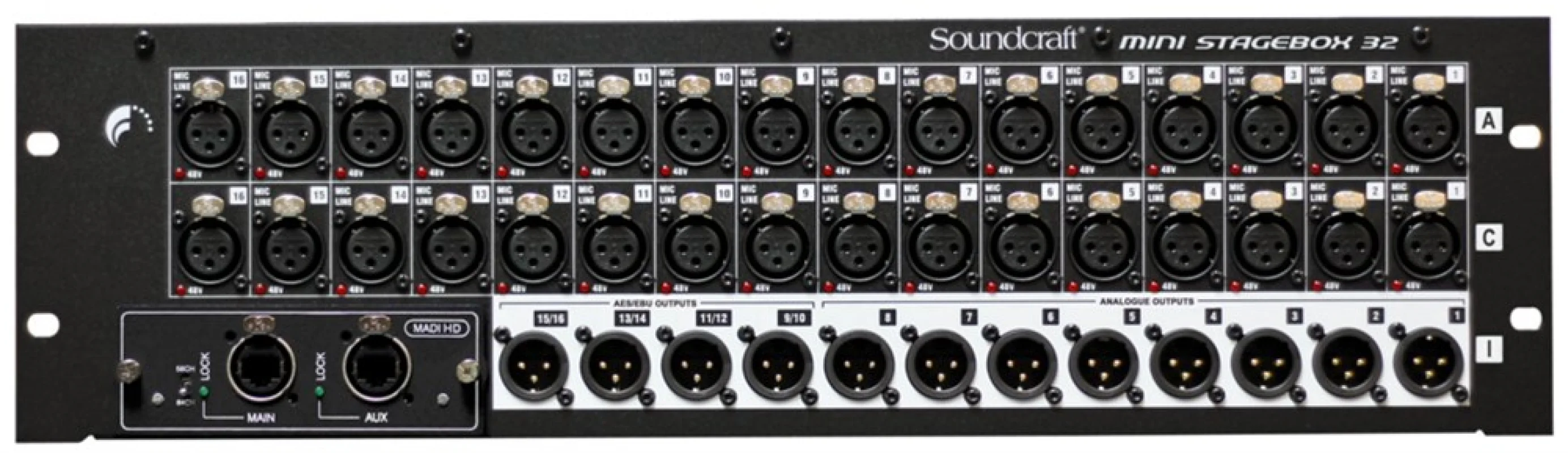

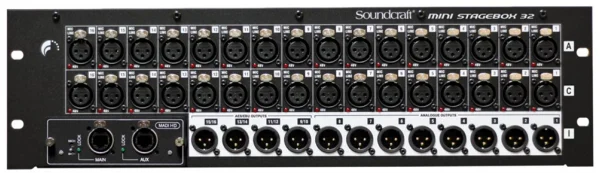

The Mini Stagebox 32 (3U) provides 32 analogue inputs and 8 analogue line outputs, with 4 pairs of AES outputs, providing a total I/O capacity of 32 inputs and 16 outputs, with the Mini Stagebox 16 (2U) model providing 16 analogue inputs and 8 line outputs making a 16 x 8 matrix. They connect to any of the Soundcraft Si Expression, Si Compact, Si Performer, Si Series and Vi Series consoles via a MADI card fitted to the option card slot.
The Mini Stagebox models contain an integral PSU so are completely self-contained and sit comfortably stage-side.
The new units are part of the ViSi Connect range of interface options for all Soundcraft mixing consoles which includes the Compact and Vi Stageboxes and a range of option cards such as MADI, AES, CobraNet and AES
