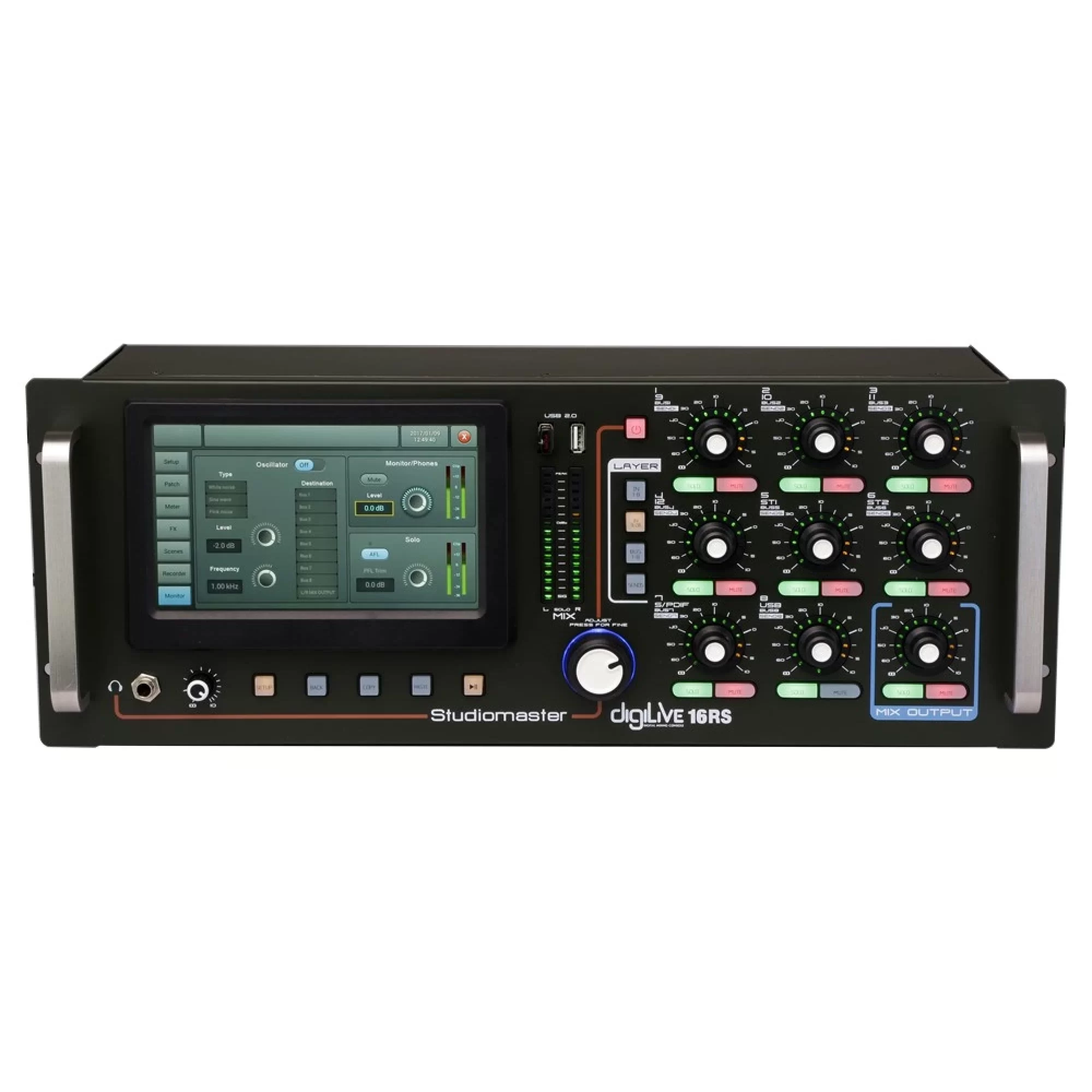

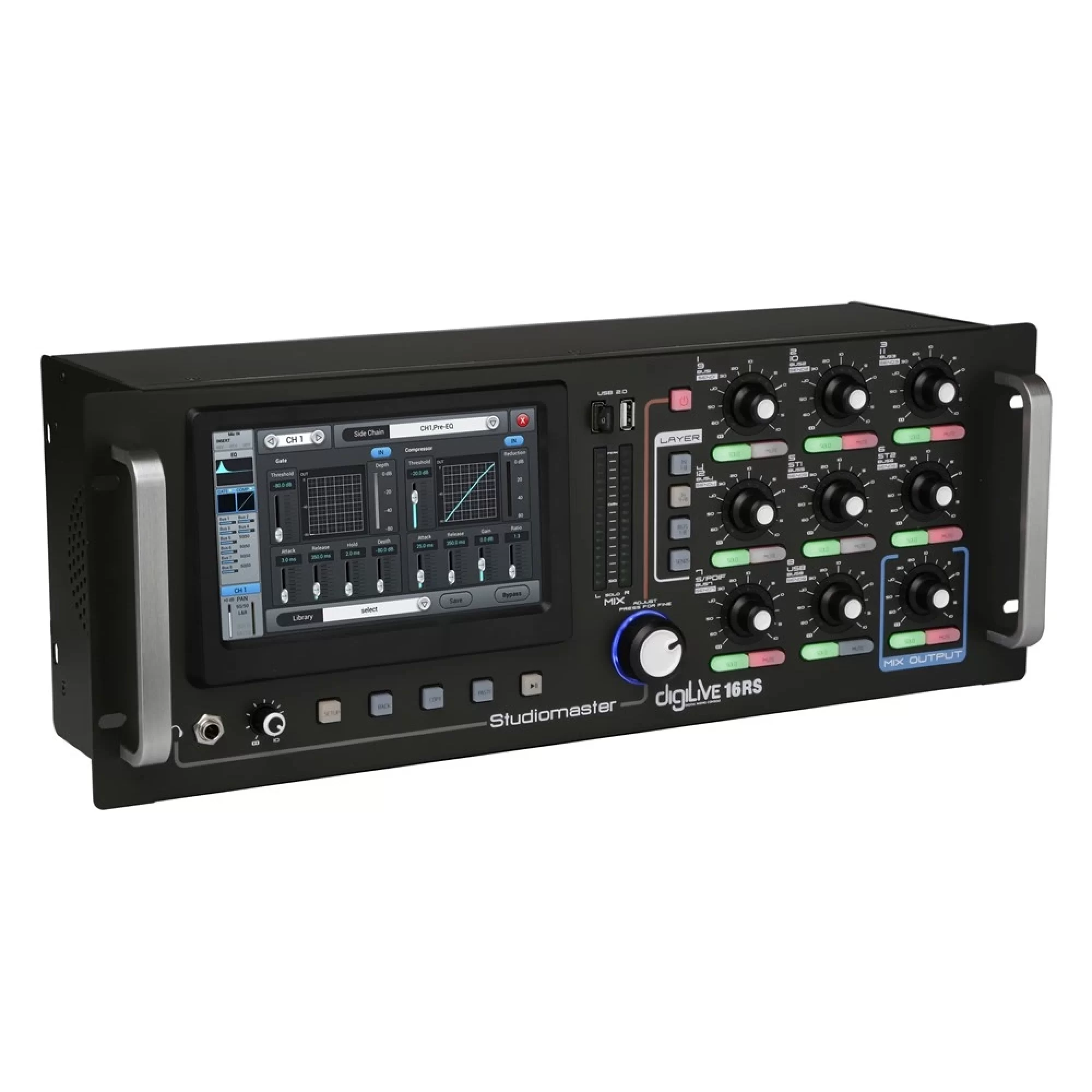

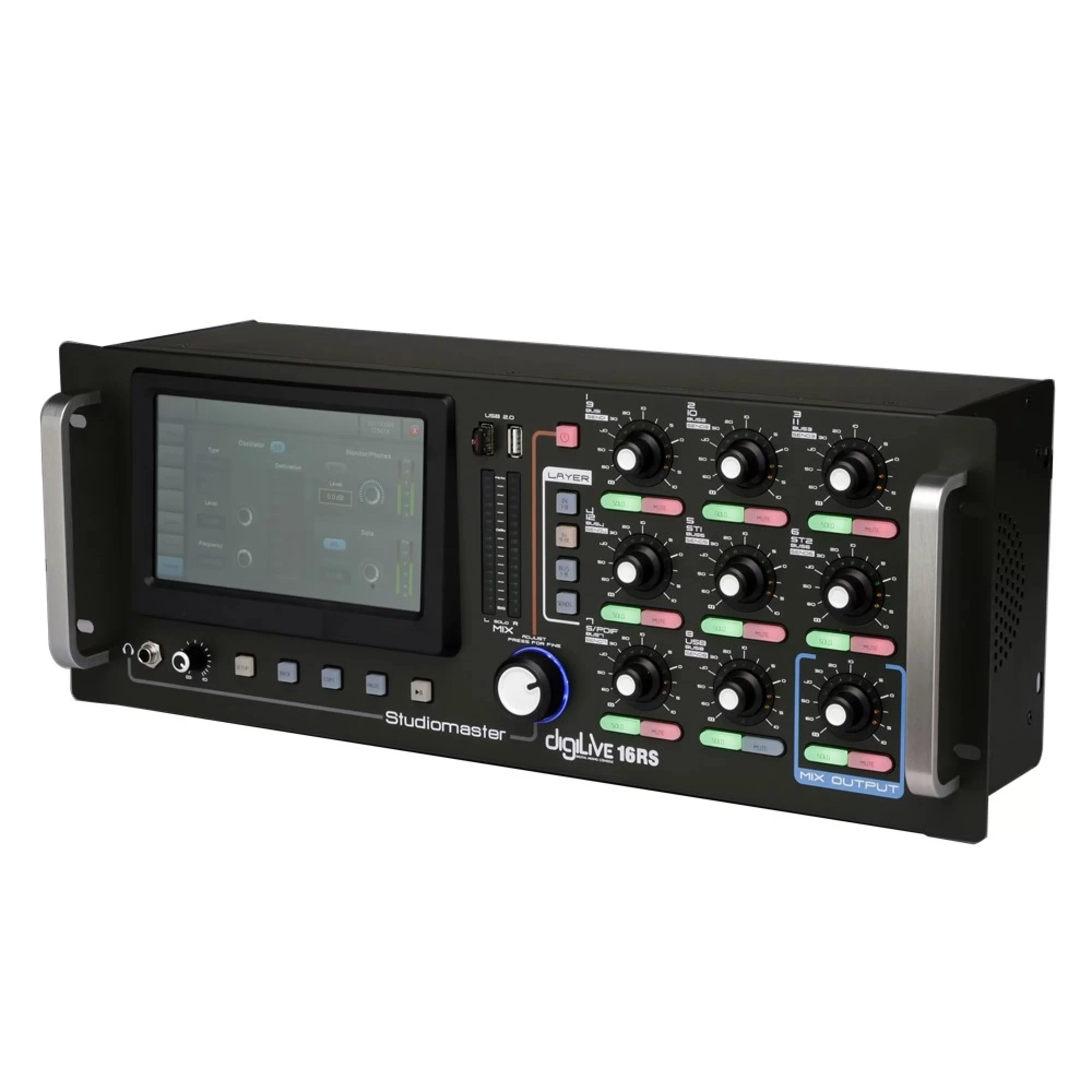

Studiomaster DigiLive 16RS is a compact and versatile digital mixer designed for live performances and studio recordings. It combines high-quality sound with a user-friendly interface to cater to both professional and amateur musicians.
16 Inputs and 16 Internal Buses: Offers the ability to connect various audio sources with 12 digital gain mic inputs and 2 stereo inputs.
8 Smart Outputs: Provides flexible audio routing with 8 configurable smart outputs.
7" High-Resolution Touchscreen: Allows quick and intuitive control through a user-friendly interface.
Ultra-Compact Design: Ideal for stage and studio use with its portable and lightweight structure.
Advanced Hybrid User Interface: Combines touchscreen and physical controls for easy operation.
Full iOS Tablet Control: Can be remotely controlled via iPad thanks to the built-in Wi-Fi module.
Mic Inputs: 12 (8 XLR, 4 Combo XLR)
Stereo Inputs: 2
Main Outputs: 2 (Balanced XLR Left/Right)
Smart Outputs: 6 (Assignable Balanced XLR)
Internal Buses: 16
Stage Monitor Output: 1 TRS Jack
Headphone Output: 1 TRS Jack
Display: 7" high-resolution touchscreen
Operating System: Android
Network Connection: With built-in Wi-Fi module
Remote Control: Via iPad iOS with 'Digilive Blackbox' app
Sampling Frequency: 48 KHz
AD/DA Conversion: 192 KHz, 24-bit
DSP: 40 bit floating point, SHARC processor
Effects: Up to 8 assignable effect modules
AES/EBU: XLR Output
S/PDIF: Input/Output (RCA Phono)
USB Interface: 2 ports for playback/recording, scene/setting storage, and system updates
Power Supply: 90-240V ~ 50/60Hz IEC power supply
