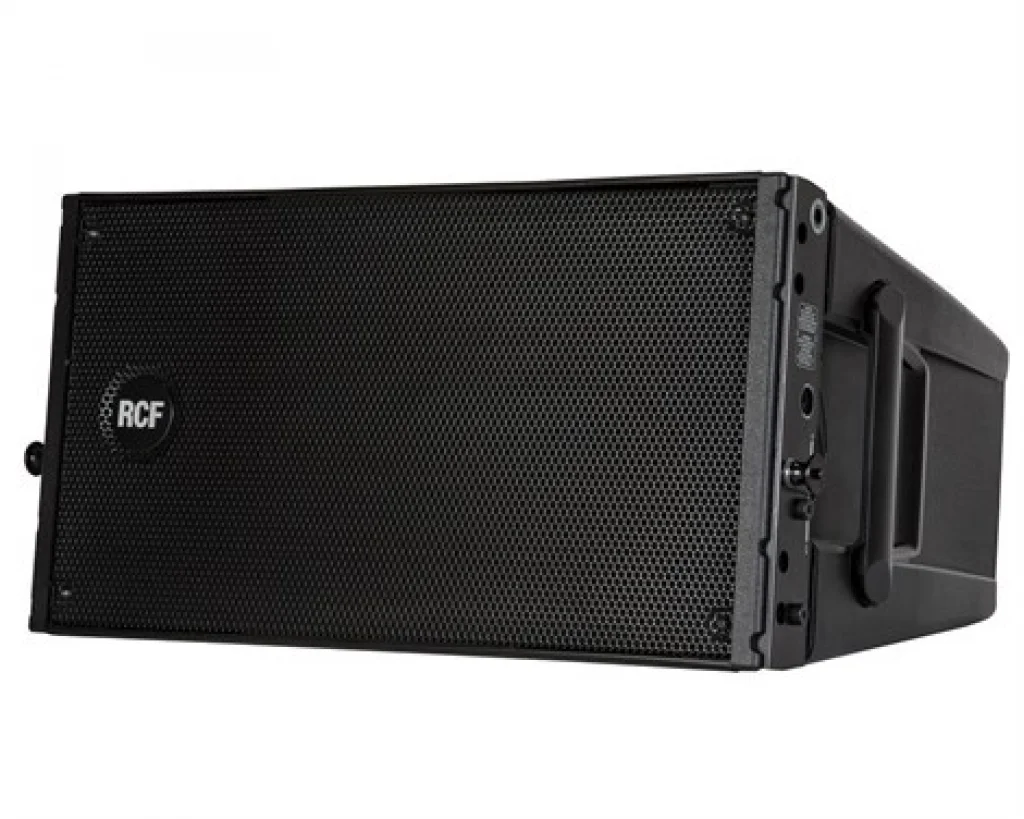

RCF HDL10A 2x8"+2" Aktif Line Array Speaker
FEATURES
- 1400 Watt Peak power - 700 Watt RMS
- 133 dB max SPL
- 65 Hz 20 kHz frequency response
- 2 x 8" Woofers
- 1 x 2" Compression Driver
- DSP controlled Input section with selectable presets
- Tour grade safe and solid variable mechanics
- Composite PP enclosure structurally wooden reinforced
ACOUSTICAL SPECIFICATIONS
- Frequency Response -3 dB:65 Hz ÷ 20000 Hz
- Max SPL:133 dB
- Horizontal coverage angle:100°
- Vertical coverage angle:15°
- Compression Driver:2", 2.5" v.c.
- Woofer:2 x 8", 2.0" v.c.
INPUT/OUTPUT SECTION
- Input signal:bal/unbal
- Input connectors:XLR
- Output connectors:XLR
- Input sensitivity:-2 dBu / +4 dBu
PROCESSOR SECTION
- Crossover frequencies:800 Hz
- Protections:Thermal, RMS
- Limiter:Soft limiter
- Controls:Cluster, HF, High curving, Indoor
AMPLIFIER SPECIFICATIONS
- Total power:1400 W PEAK
- High frequencies:400 W PEAK
- Low frequencies:1000 W PEAK
- Total power:700 W RMS
- High frequencies:200 W RMS
- Low frequencies:500 W RMS
- Cooling:Convection
- Connections:Powercon in/out
CABINET
- Cabinet Material:Composite PP, wooden reinforced
- Hardware:Rigging flyware
- Handles:2 side
- Colour:Black
PHYSICAL SPECIFICATIONS
- Height:294 / 11.5 mm/inch
- Width:569 / 22.40 mm/inch
- Depth:434 / 17.09 mm/inch
- Net Weight:20.4 / 44.97 kg/lbs
