| Native Resolution | WUXGA (1920x1200) |
| Brightness | 5000 ANSI Lumens |
| Contrast Ratio | 15,000:1 |
| Max. Supported Resolution | WUXGA (1920x1200)@60Hz |
| Native Aspect Ratio | 16:10 |
| Lamp Life and Type | 3,000/4,000/5,000 Hours (Normal/ Eco./Dynamic Eco), 310W/250W |
| Display Type | Single chip DLP® Technology by Texas Instruments |
| Chip Size | 0.67" |
| Throw Ratio | 1.39 - 2.09 |
| Image Size (Diagonal) | 26.7” - 334" |
| Projection Distance | 1.2 - 10 m |
| Projection Lens | F=2.42 - 2.97 , f=20.70 - 31.05 mm |
| Zoom Ratio | 1.5x |
| Focus | Manual |
| Offset | 114.9% +/- 5% |
| Keystone Correction | +/- 30 Degree; +/- 30 Steps |
| Speakers | 10W (Mono) |
| Vertical Scan Rate | 24 - 30Hz, 47 - 120Hz |
| Horizontal Scan Rate | 15, 31 – 91.4kHz |
| Video Compatibility | SDTV (480i, 576i) / EDTV (480p, 576p) / HDTV (720p, 1080i, 1080p), NTSC (M, 3.58/4.43 MHz), PAL (B,D,G,H,I,M,N) SECAM (B,D,G,K,K1,L) |

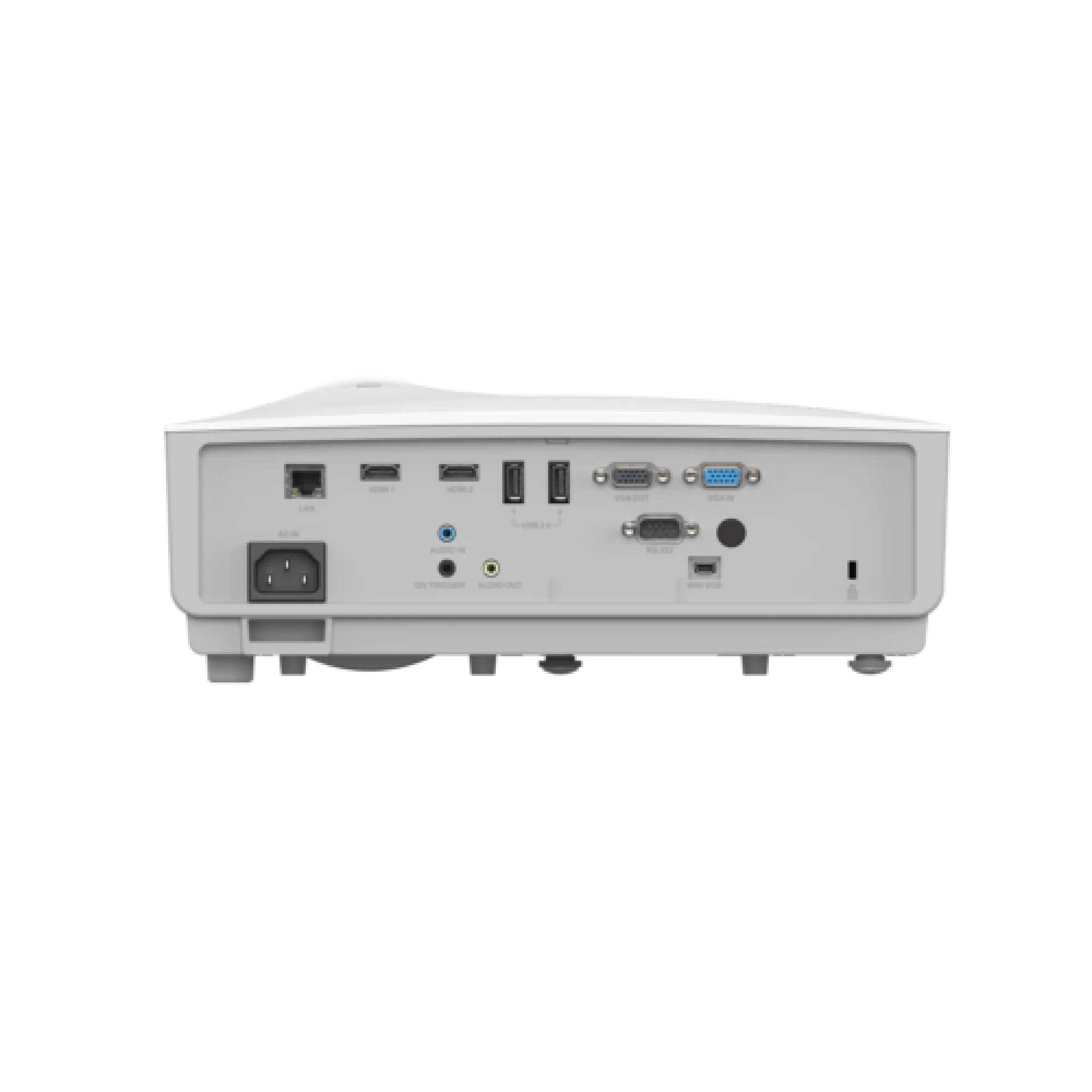

| I/O Connection Ports | VGA-In (15pin D-Sub), HDMI (x2), Audio-In (Mini-Jack), VGA-Out (15pin D-Sub), Audio-Out (Mini-Jack), RJ45, 12v Trigger, RS-232, USB A (x2 (5V/ 1.5A) (Power Only), USB miniB (Service) |
| Dimensions (W x D x H) | 314 x 213 x 126 mm |
| Weight | 3.4 kg |
| Noise Level | 36dB /31dB (Normal/Eco. Mode) |
| Power | AC 110-240V, 50/60Hz |
| 3D Ready(DLP link, PC+Video) | Yes |
| Standard Accessories | VGA Cable, Quick Start Guide, Warranty Card (by region), Remote Controller (with battery), AC Power Cord |
| Optional Accessories | Spare Lamp P/N: 5811120589-S, Remote Control P/N: 5042149001 |
| Warranty | Standard Warranty: 3 years projector / 1 year on lamp or 1.000 hours whichever comes first |
| UPC Code | 813097 024732 |
