- Supports HDMI 2.0 and the video resolution up to 4K@60Hz 4:4:4.
- HDMI input supports HDCP 2.3 and the outputs support HDCP Active or HDCP Passive mode.
- Supports video resolution down-scaling, the 4K input can be automatically degraded to 1080p output for compatibility with 1080p display.
- 18Gbps high bandwidth.
- Advanced EDID management: multiple built-in EDID settings can be selected.
- Built-in equalizer for signal enhancement to avoid signal attenuation in transmission.
- Supports CEC pass-through.
- Provides LEDs to indicate the current operating status.
- Firmware upgrade by Micro-USB port.
Technicial Specifications
| Video Input |
| Input | (1) HDMI |
| Input Connector | (1) Type-A female HDMI |
| HDMI Input Resolution | Up to 4Kx2K@60Hz 4:4:4 8bit |
| HDMI Standard | 2.0 |
| HDCP Version | 2.3, 1.4 compliant |
| CEC | Supported |
| Video Output |

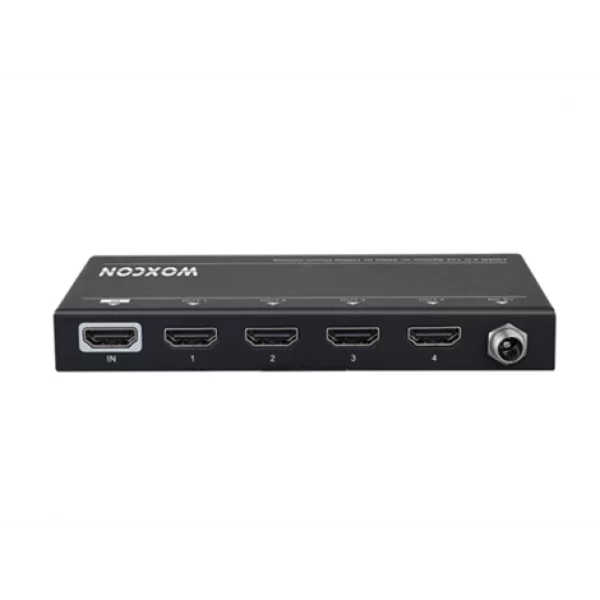

| Output | (4) HDMI |
| Output Connector | (4) Type-A female HDMI |
| HDMI Output Resolution | Up to 4Kx2K@60Hz 4:4:4 8bit |
| HDMI Standard | 2.0 |
| HDCP Version | 2.3, 1.4 compliant |
| CEC | Supported |
| Control |

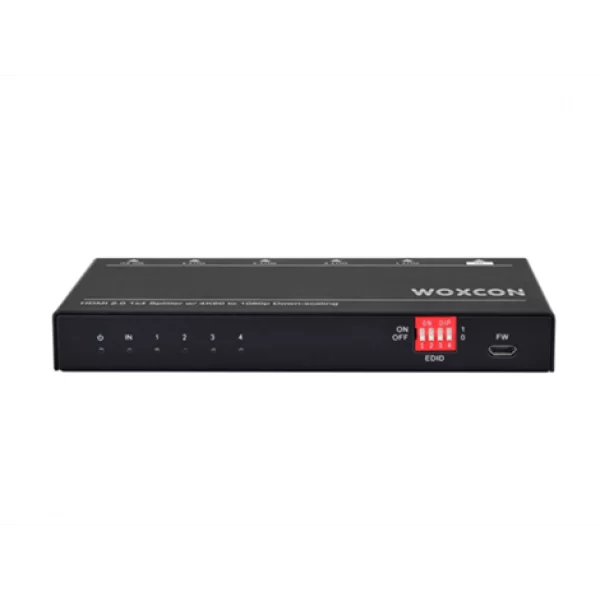

| Control Part | (1) EDID 4-pin DIP switch, (1) Micro-USB port |
| General |
| Bandwidth | 18Gbps |
| HDMI 2.0 Cable Length | 4K@60Hz 4:4:4 ≤ 5m, 4K@60Hz 4:2:0 ≤ 15m, |
| 1080p ≤ 20m |
| Operation Temperature | -10℃ ~ +55℃ |
| Storage Temperature | -25℃ ~ +70℃ |
| Relative Humility | 10%-90% |
| Power Supply | Input:100V~240V AC, Output: 5V DC 1A |
| Power Consumption | 2.5W (Max) |
| Dimension (W*H*D) | 142.0mm x 17.6mm x 70.4mm |
| Net Weight | 260g |
Note: Please adopt high-qualified HDMI cable fully compliant with HDMI 2.0 for reliable transmission and connection.
