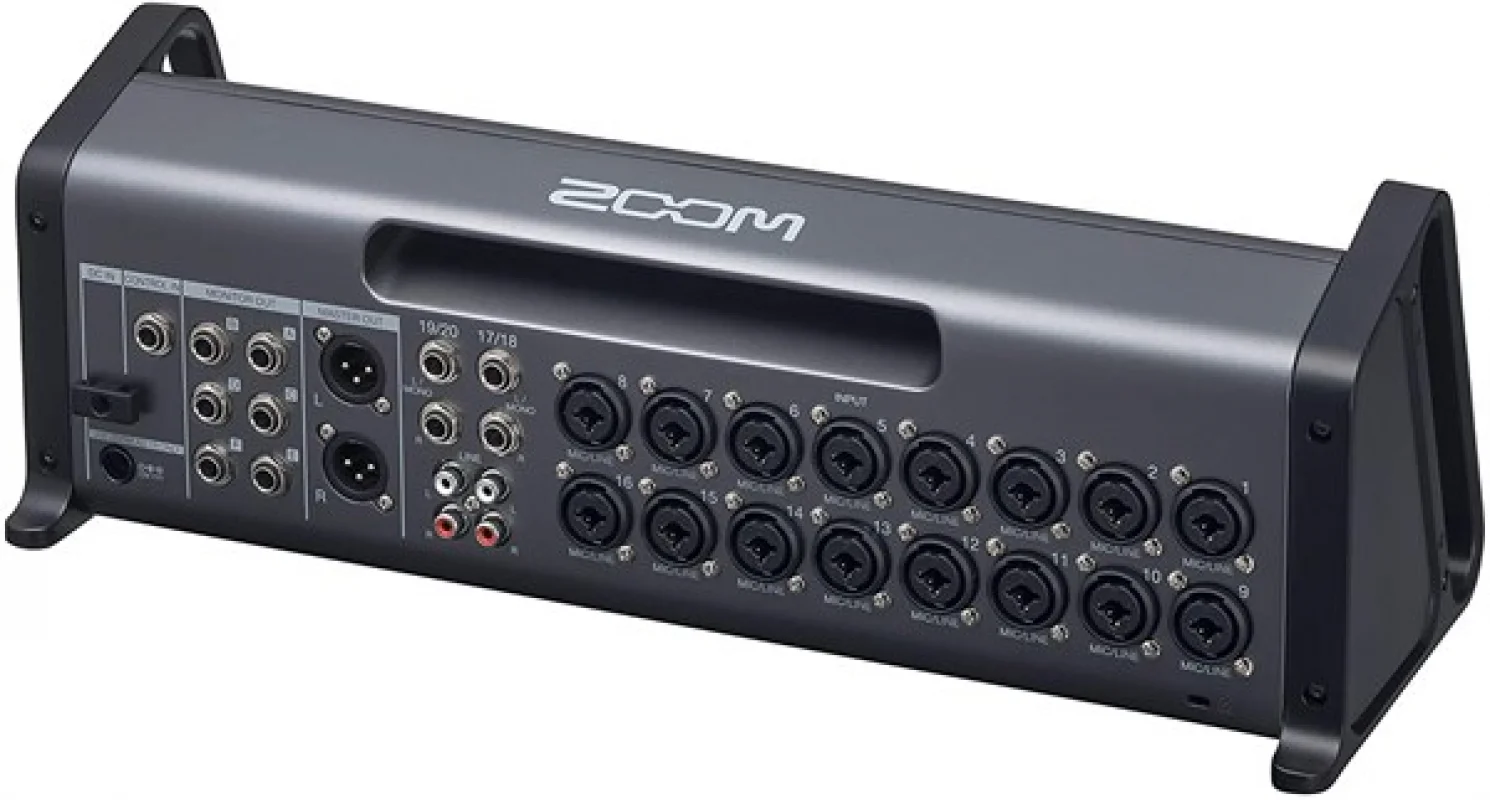

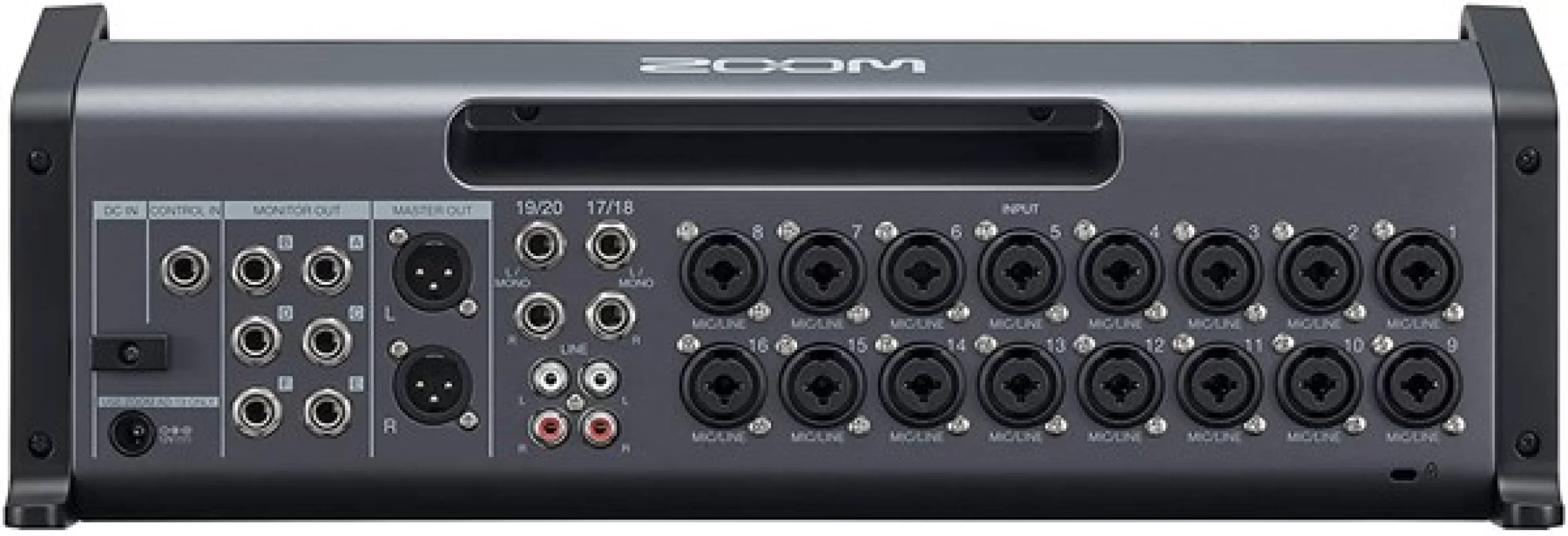

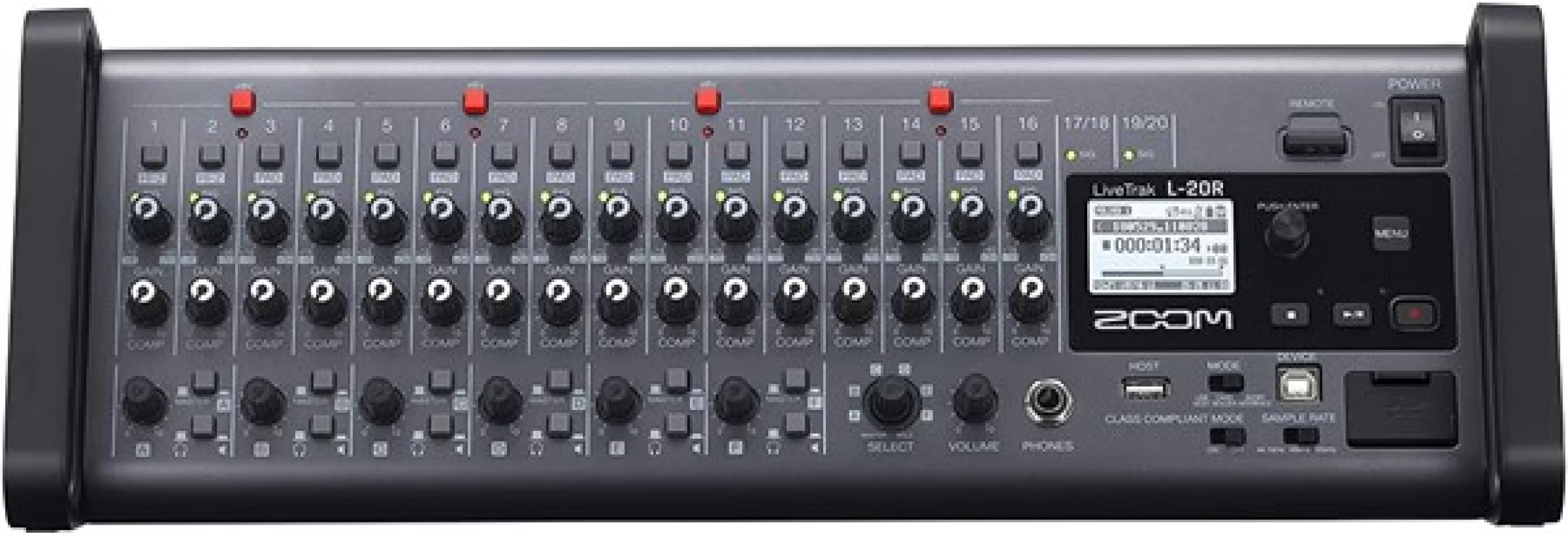

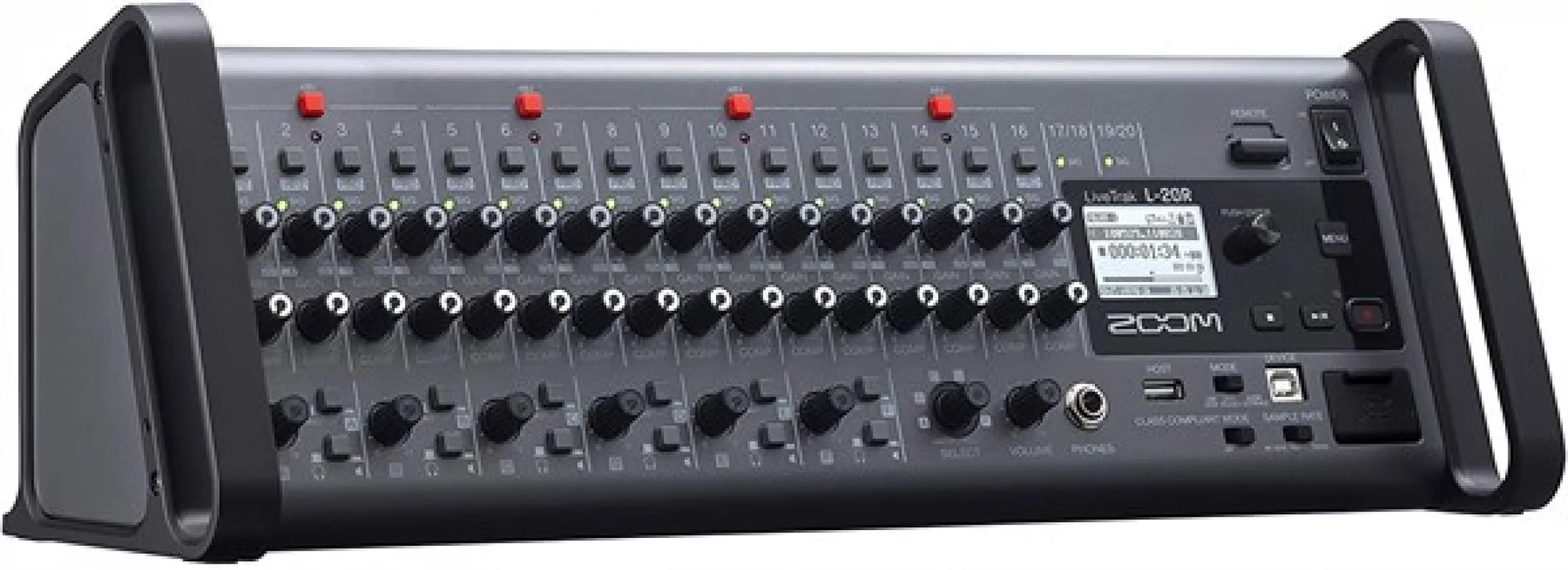

Zoom LiveTrak L-20R Rack Mountable 20-Kanal Dijital Mikser

Zoom LiveTrak L-20 20-Kanal Dijital Mikser

16 mono, 2 stereo, çift efekt, 6 monitör çıkışlı digital ses mikseri. bilgisayar yada
tablete gerek duymaksızın tüm özelliklerin kullanımı için fiziksel Knobe ve Fader
kontroller, 2 kanal Hi-Z preamp, 14 kanal PAD, 16 adet COMBO XLR/TRS
mic/line giriş, 16 x 4 USB audio interface, haricen temin edilecek ZOOM BTA-1
adapter ile Bluetooth üzerinden IPAD ile kontrol, fiziki gain ve kompresor
kontrolleri. fiziki monitör çıkış seviye kontrolleri. IN EAR MONITORING sistemine
tam uyum / 6 adete kadar monitör kulaklık çıkışı ( her biri monitör yada kulaklık
kullanımına göre seçilebilir yapıda ) ,dahili Stereo SD CARD recorder, metronom,
2 ch / 4ch gruplar halinde +48 phantom power.

• 20 Input channels: 16 Mono and 2 stereo channels
• 16 XLR / TRS combi jacks
• Stereo channels with 2x 6.3 mm jack and RCA jacks
• Per channel: Gain control, 3-band equaliser, panorama, compressor and 2 effects buses
• Hi-Z connectors on channels 1-2
• Switchable 26 dB pad for channels 3 to 16
• Low cut variably adjustable from 40 - 600 Hz on each channel
• 6 Configurable monitor paths (6.3 mm jack)
• Monitor outputs can be configured as a headphone output or normal Line-Level output
• +48 V phantom power switchable into 4 groups
• 20 Internal, editable chorus, delay and reverb effects
• USB audio interface with 22 inputs and 4 outputs
• Audio recording up to 24 bit / 96 kHz on SD storage media (512 GB maximum)
• Memory function for up to 9 mixer scenes
• Compatible with the Remote Mixer App for iPad
• Dimensions (W x D x H): 438 x 158.2 x 151.7 mm
• Weight: 2.49 kg
• Includes power adapter (AD-19),BTA-1 Bluetooth adapter, rack bracket and quick start guide
