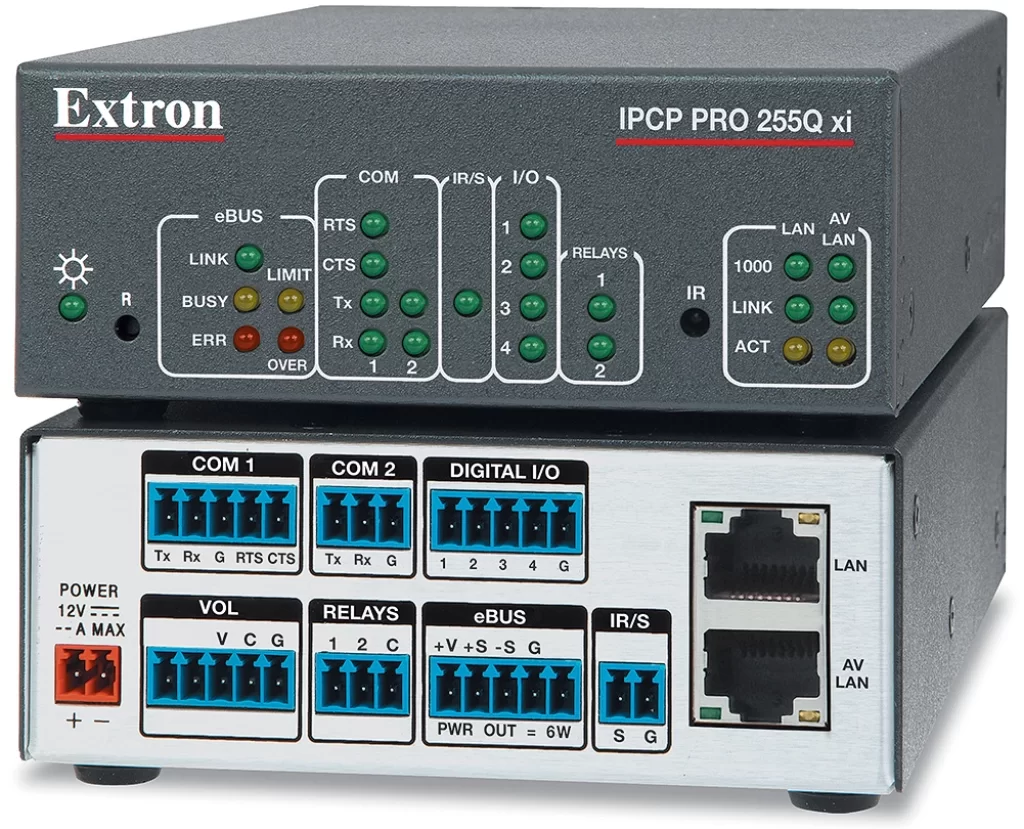

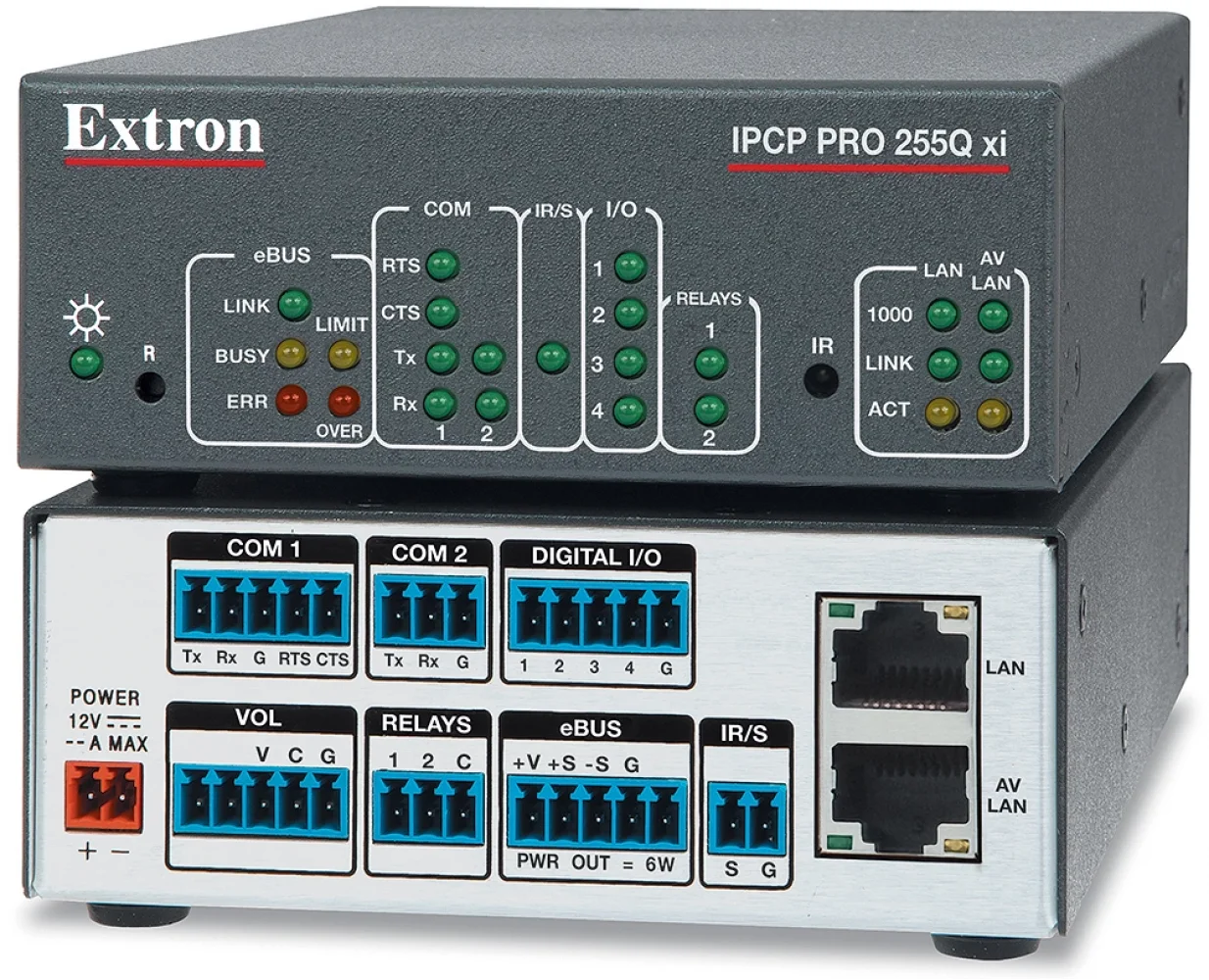

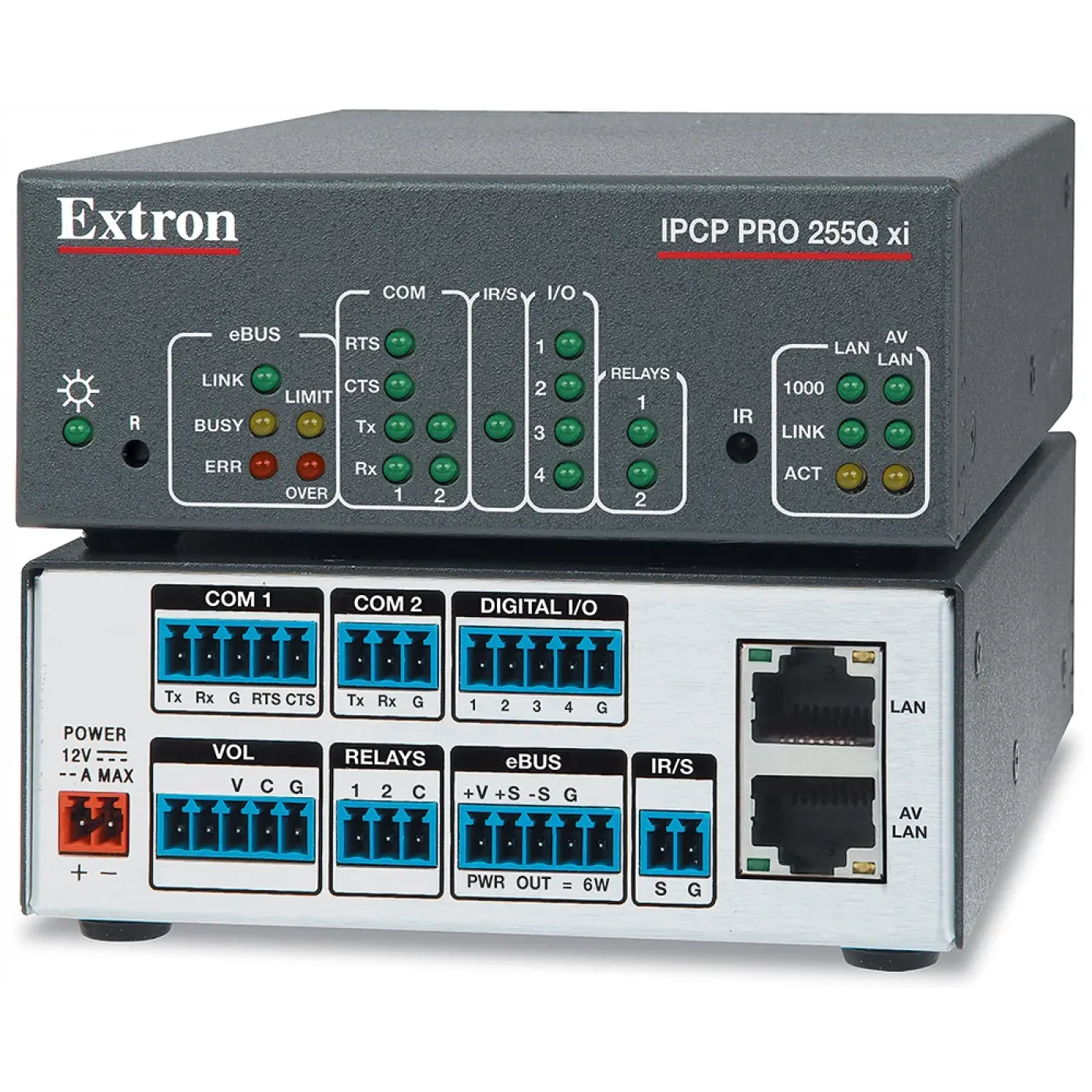

IPCP Pro 255Q xi |
|
Memory |
---|
SDRAM | 2 GB |
Flash | 8 GB |
|
Software |
---|
Configuration software | Global Configurator® Plus and Professional |
Programming software | Global Scripter® |
Control apps | Extron Control |
Resource management software | GlobalViewer® Enterprise |
Utilities | Toolbelt, embedded web page |
|
Hardware user interface |
---|
Hardware | TouchLink® Pro touchpanels, Network Button Panels, or eBUS® button panels |
|
Ethernet |
---|
Network interface controllers (NICs) | 2: 1 LAN, 1 AV LAN |
Connectors | 2 female RJ-45 connectors |
Data rate | 10/100/1000Base-T, half/full duplex with autodetect |
Protocols | DHCP, DNS, HTTP (redirect),HTTPS, ICMP, IEEE 802.1X, NTP, SFTP, SMTP, SNMP, SSH, TCP/IP, UDP/IP |
Default settings | |
LAN | Link speed and duplex level = autodetected
IP address = 192.168.253.250
Subnet mask = 255.255.255.0
Gateway = 0.0.0.0
DHCP = off
DNS = 127.0.0.1 |
AV LAN | Link speed and duplex level = autodetected
DHCP server = disabled
Subnet mask = 255.255.255.0
Gateway = 0.0.0.0 |
DHCP server disabled | IP address = 192.168.254.250
DNS = 127.0.0.1 |
DHCP server enabled | IP address = 192.168.254.1
DNS = 192.168.254.1
Dynamic leased IP address pool = 192.168.254.100 - 192.168.254.149
Maximum lease count = 50
Lease time = 24 hours |
|
Serial |
---|
Quantity/type | 1 bidirectional RS-232, RS-422, RS-485 (port 1)
1 bidirectional RS-232 (port 2) |
Connector | (1) 3.5 mm captive screw connector, 5 pole
(1) 3.5 mm captive screw connectors, 3 pole |
Baud rate and protocol | 300 to 115200 baud (9600 baud = default); 8 (default) or 7 data bits; 1 (default) or 2 stop bits;
no parity (default),even, or odd parity |
NOTE | The 5-pole ports support both hardware and software flow control.
The 3-pole ports support software flow control.
The default for both types of ports is no flow control. |
|
Pin configurations | |
Serial, 5-pole captive screw |
RS-232 (default) | Pin 1 = Tx, 2 = Rx, 3 = Gnd, 4 = RTS, 5 = CTS |
RS-422 | Pin 1 = Tx-, 2 = Rx-, 3 = Gnd, 4 = Tx+, 5 = Rx+ |
RS-485 | Pins 1 and 2 (tied together) = data-, 3 = Gnd, 4 and 5 (tied together) = data+ |
Serial, 3-pole captive screw | Pin 1 = Tx, 2 = Rx, 3 = Gnd |
|
Digital I/O |
---|
Quantity/type | 4 digital input/output (configurable) |
Connectors | (1) 3.5 mm captive screw connector, 5 pole |
Digital inputs | |
Input voltage range | 0 to 24 VDC, clamped at +30 VDC |
Input impedance | >10k ohms |
Programmable pullup | 1k ohms to +5 VDC |
Threshold low to high | 2.8 VDC |
Threshold high to low | 2.0 VDC |
Digital outputs | 250 mA sink from 24 VDC max. |
Pin configurations | 1, 2, 3, 4 = digital I/Os 1, 2, 3, 4; 5 = Gnd |
|
IR/serial |
---|
Quantity/type | 1 programmable: unidirectional RS-232 (±5 V),or TTL level (0 to 5 V) infrared (carrier and non-carrier) up to 300 kHz |
Connector | (1) 3.5 mm captive screw connector, 2 pole |
Baud rate and protocol (RS-232) | 300 to 115200 baud (9600 baud = default); 8 (default) or 7 data bits; 1 (default) or 2 stop bits;
no parity (default),even, or odd parity |
Pin configurations | For each port, pin 1 = signal, 2 = Gnd |
IR output carrier frequency | 30 kHz to 300 kHz |
IR learning carrier frequency | 30 kHz to 300 kHz |
IR learning capture distance | 2" (5.1 cm) to 12" (30.5 cm) from the front panel |
|
Relay |
---|
Quantity/type | 2 normally open relays |
Connector | (1) 3.5 mm captive screw connector, 3 pole |
Relay control contact rating | 24 VDC, 1 A |
|
Volume control |
---|
Quantity/type | 1 volume control (compatible with select Extron amplifiers) |
Connectors | (1) 3.5 mm captive screw connector, 5 pole |
Pin configuration | Pin 3 = ≤10 VDC reference voltage input, pin 4 = 0 to +10 VDC control voltage output, pin 5 = Gnd |
Control voltage output range | 0 to +10 VDC (±0.2 volts),adjustable |
|
eBUS |
---|
eBUS control ports | (1) 3.5 mm captive screw connector, 5 pole (uses 4 poles) |
eBUS pin configuration | +V = +12 VDC; +S = + signal; -S = - signal; G = ground |
Recommended cable type | Extron STP20-2/1000 or STP20-2P/1000 cable |
Maximum system cable length | 1000 feet (305 meters) sum total for the eBUS system, regardless of topology. Power injection may be required depending on system cabling topology and primary power supply wattage. See the eBUS Technology Reference Guide for details. |
eBUS power output | 6 watts |
|
General |
---|
Power supply | External, included
Input: 100-240 VAC, 50-60 Hz
Output: 12 VDC, 1.5 A, 18 watts |
Power input requirements | 12 VDC, 1 A, 12 watts, max. |
Power consumption | |
Device | 10.0 watts, 12 VDC |
Device and power supply | 11.1 watts, 100-240 VAC, 50-60 Hz |
Ambient temperature/humidity | Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing
Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing |
Cooling | Convection, no vents |
Thermal dissipation | |
Device | 13.7 BTU/hr |
Device and power supply | 17.3 BTU/hr |
Mounting | |
Rack mount | Yes, with optional 1U rack shelf |
Furniture mount | Yes, with optional bracket kit |
Enclosure type | Metal |
Enclosure dimensions | 1.7" H x 4.3" W x 6.0" D (1U high, quarter rack wide)
(43 mm H x 109 mm W x 152 mm D)
(Depth excludes connectors.) |
Product weight | 0.8 lbs (0.4 kg) |
Regulatory compliance | CE, C-Tick, c-UL, FCC Class A, ICES, KC, UL, VCCI
Complies with the appropriate requirements of RoHS, WEEE |
Product warranty | 3 years parts and labor |
Everlast power supply warranty | 7 years parts and labor |
