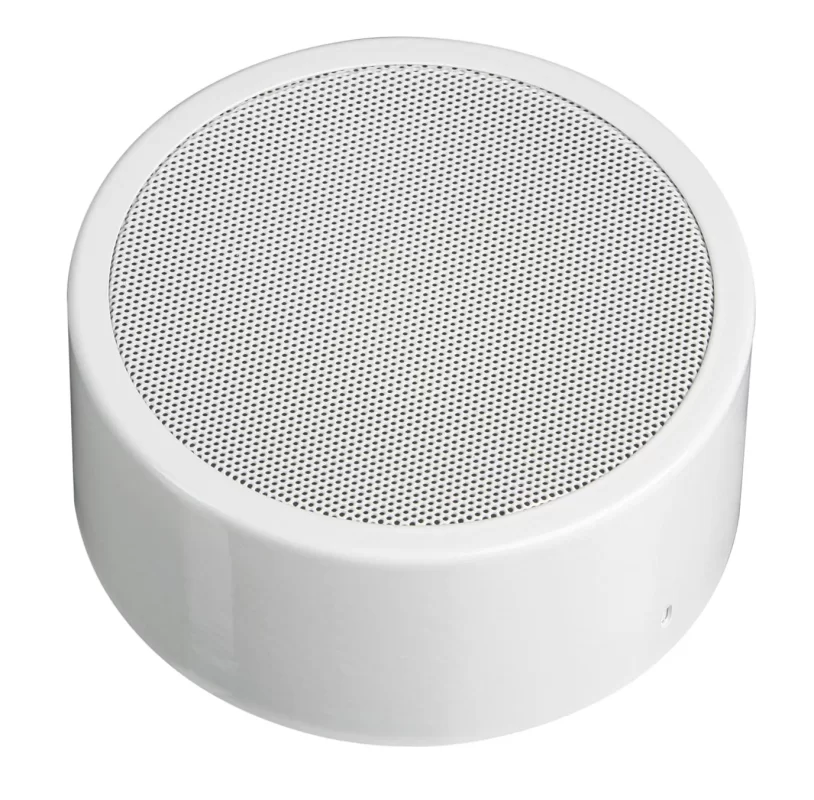

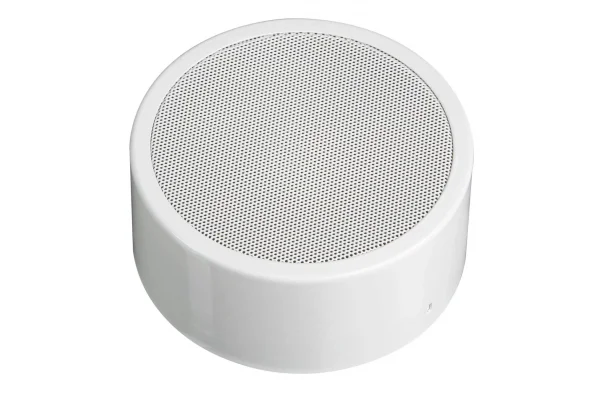

10 W 6.5" round wall or ceiling surface mount loudspeaker, metal
The loudspeaker DL-A 10-165/T-EN 54 for voice alarm made of powder-coated metal in white with high degree of efficiency and a high-quality 200 mm broadband loudspeaker chassis. DL-A 10-165/T-EN 54 can be installed on ceiling and walls, where recessed mounting is not possible. Flat and elegant design for unobtrusive installations provided with a metal back plate. The loudspeaker is equipped for highest security requirements with a ceramic terminal and a thermal fuse. The Chassis is protected against moisture by impregnation. The DL-A 10-165/T EN 54 offers a powerful sound besides the high safety standard.
Technical Data
Rated Power : 10 W
Sensitivity EN 54-24, 1 W / 1 m : 90,7 dB
Sensitivity EN 54-24, max 1 m : 100,7 dB
Transmission range : 290 Hz ... 23400 Hz
Ambient temperature : -20 °C ... 80 °C
Color : white, similar to RAL 9010
Weight : approx. 1.3 kg
Dimensions : Ø: 170 mm D: 75 mm
