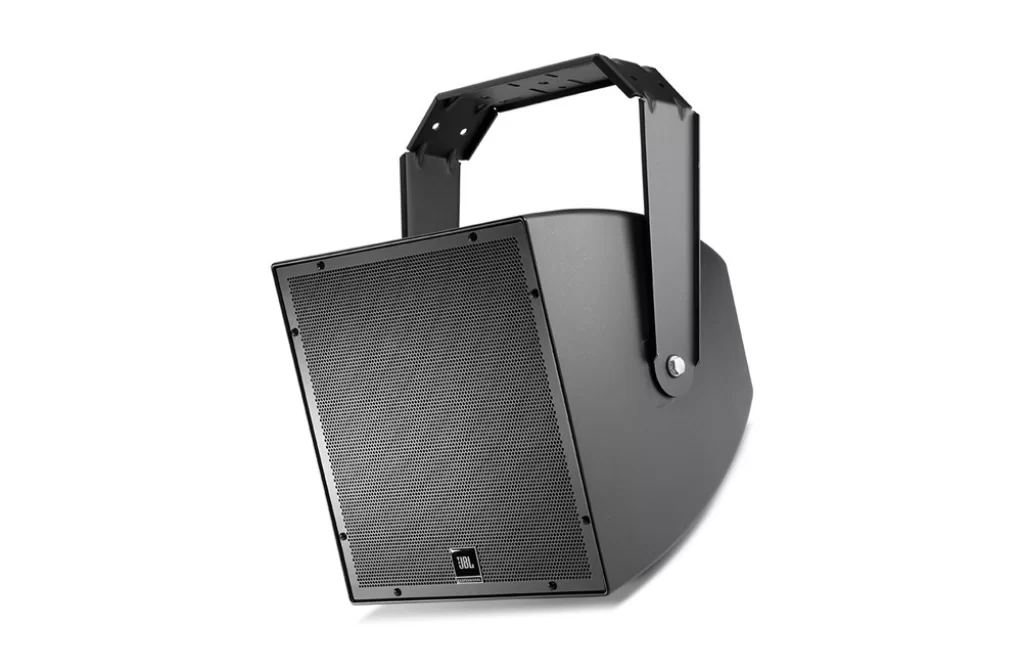

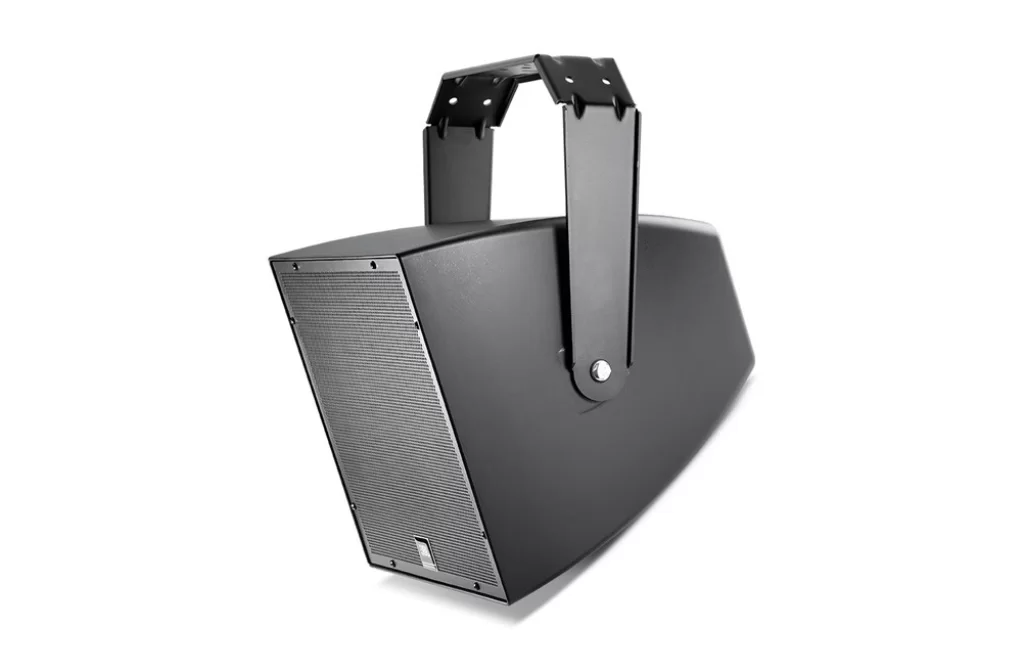

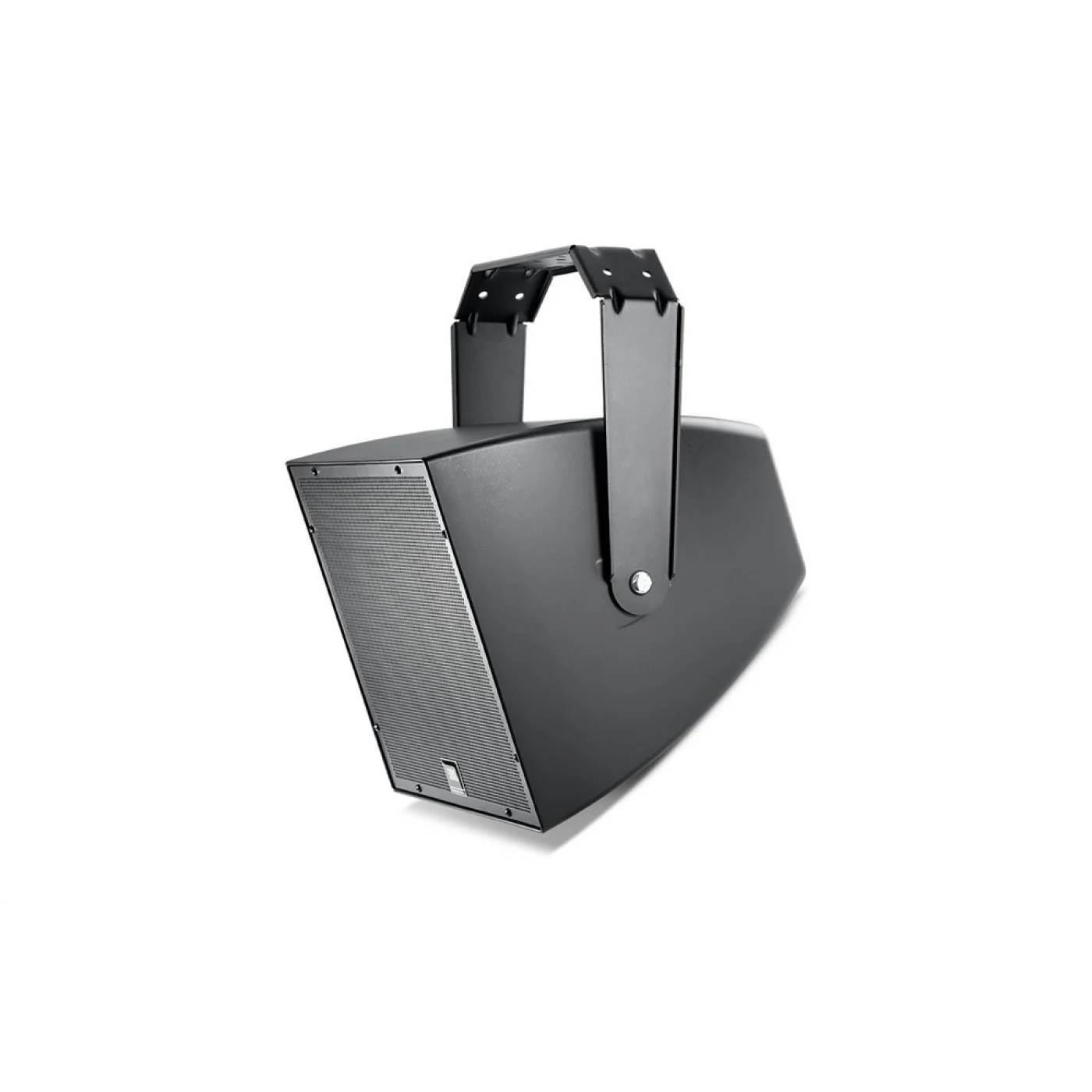

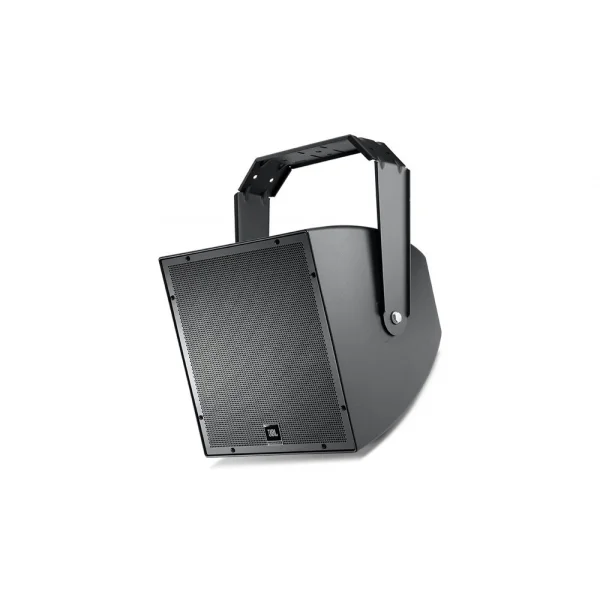

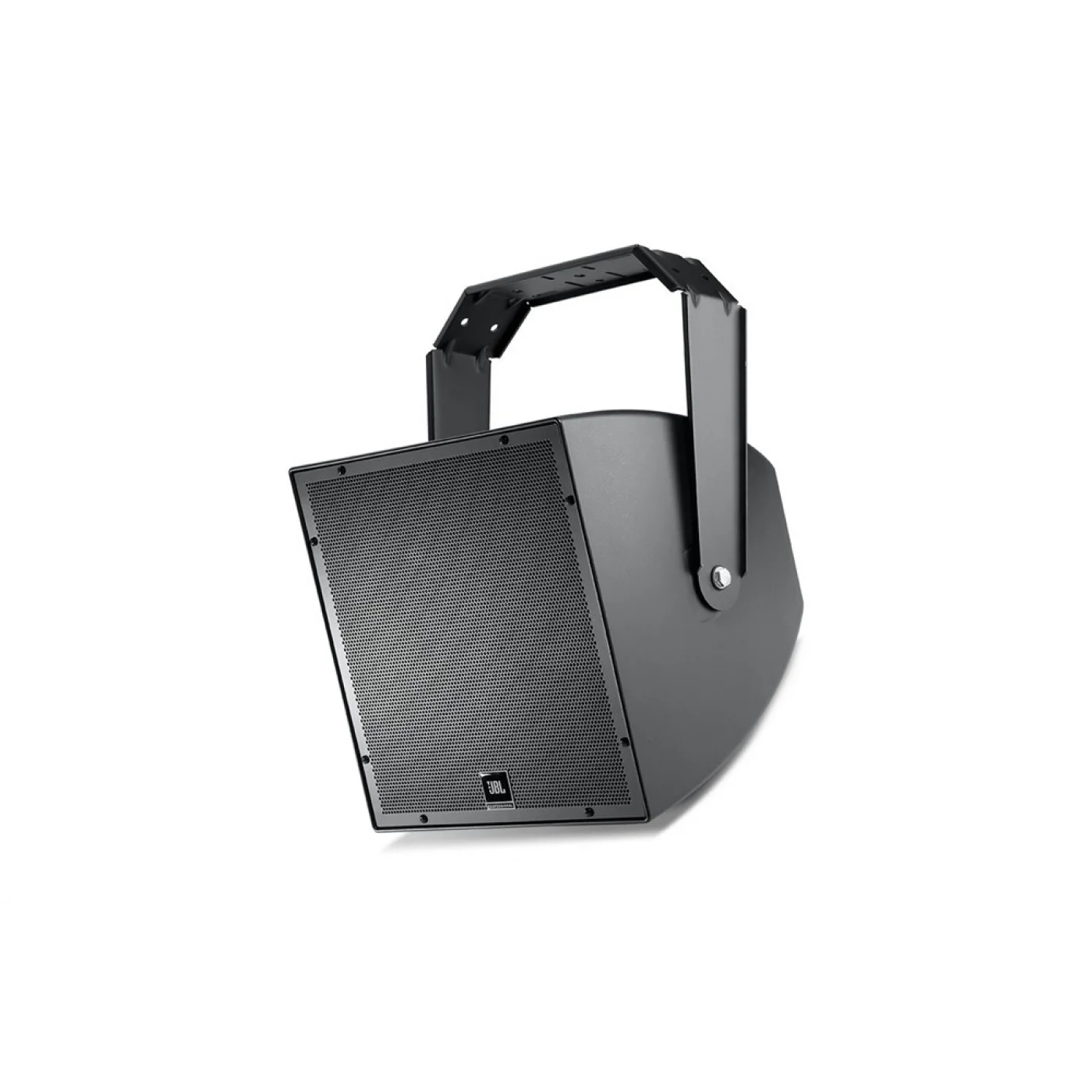

Name: JBL AWC159 15" Outdoor Coaxial Horn Hoparlör 500W/8-ohm 300W/100V
Brand: JBL
SKU: JBL AWC159-BK

JBL AWC159-BK 15" Outdoor Coaxial Horn Hoparlör 300W/100V/8 Ohm

Highly weather-resistant IP56 rating
Consistent 90° x 90° broadband pattern control
Components:
- 380 mm (15 in) woofer with Kevlar-reinforced cone and 75 mm (3 in) voice coil.
- 38 mm (1.5 in) diaphragm compression driver with patented design and high temperature polymer diaphragm.
Extraordinary clarity for speech, with extended frequency response for music.
Advanced high-slope crossover network for constant coverage and smooth, natural midrange.
500 Watt power handling (average continuous pink noise) with high sensitivity provides high SPL capability.
High-power passive crossover network.
52 Hz – 20 kHz frequency response.
300 Watt 70V/100V multi-tap (built-in transformer) or direct 8Ω low-impedance.

SPECIFICATIONS

Frequency Range (-10 dB) 52 Hz – 20 kHz
Frequency Response (±3 dB) 80 Hz – 20 kHz
Coverage Pattern 90° x 90°
Directivity Factor 11.1 (1 kHz – 16 kHz)
Directivity Index (DI) 9.7 dB (1 kHz – 16 kHz)
Long-Term System Power Rating (IEC)
- 500 W (2000 W peak),2 hrs. 300 W (1200 W peak),100 hrs
Sensitivity (2.83V @ 1m) 98 dB (Ave. 80 Hz – 20 kHz)
Maximum SPL Direct 8Ω: 125 dB (peaks of 131 dB) 300 W Tap: 123 dB (peaks of 129 dB)
Crossover Network 1.5 kHz, 4th order (24 dB/oct) high-pass plus conjugate to HF, 2nd order low-pass to LF
Nominal Impedance 8 ohms
Transformer Taps
- 70V: 300W, 150W, 75W, 38W
- 100V: 300W, 150W, 75W
Low Frequency Driver Kevlar-reinforced cone with weather treatment, 75 mm (3 in) voice coil.
High Frequency Driver 2408H-2 38 mm (1.5 in) diaphragm and voice coil diameter, patented high-temperature annular polymer diaphragm, copper-clad aluminum coil, fluid-cooled.
Enclosure ABS with Glass enclosure, heavily braced
Attachment Two M10 (course-thread) points for included U-bracket. M6 secondary safety attachment point on back panel.
Grille Corrosion-resistant zinc-rich extra-thick powder coated steel grille, 3-layer assembly with foam and woven poly mesh backing.
Input Connection CE-compliant covered barrier strip terminals. Barrier terminals accept up to 8 mm outside 4 mm inside open-lug (#6 or #8) plus bare wire up to 2.5 mm2 (12 AWG) wire or spade lugs. Terminal compartment cover equipped with gland nut that forms water-tight seal with roundjacketed cables with outside diameters between 4.0 mm (0.16") and 9.0 mm (0.36")
Environmental IP56 per IEC529, with a minimum 5° downward aiming angle. Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV, and ASTM G85 for salt spray (168 hrs).
Dimensions 486 x 486 x 479 mm (19.1 x 19.1 x 18.8),cabinet
507 mm (19.9 in) depth with gland nut
546 mm (21.5 in) including bracket extending to back
Colors Available in gray (similar to Pantone 420C) and black (-BK)
Included Accessories U-bracket, matches loudspeaker color (gray or black),zinc-rich extrathick powder coated, steel.
