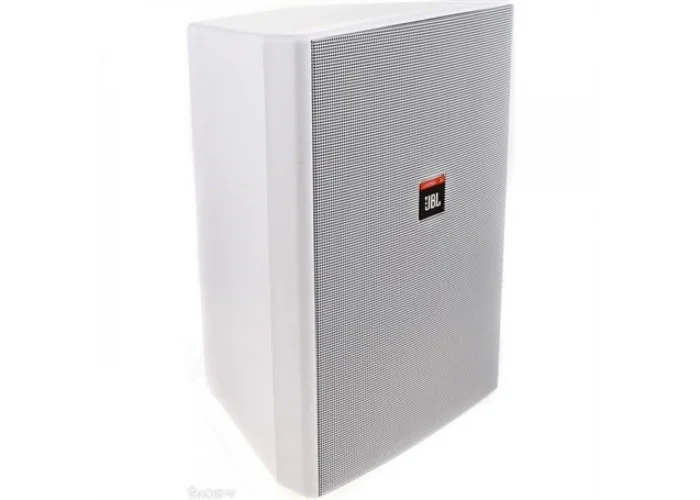

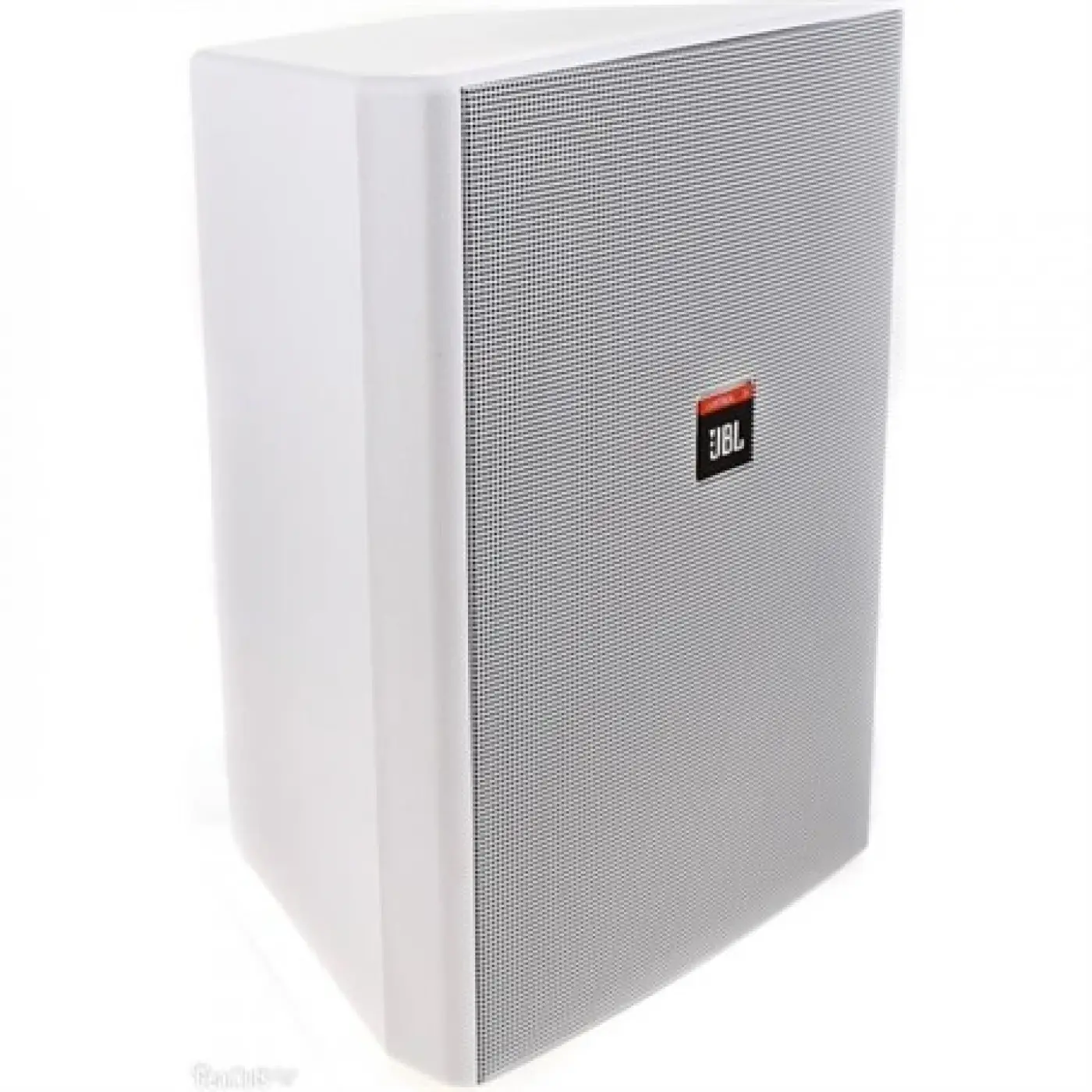

JBL Control-28 8" Duvar Montaj Tip Hoparlör 175W
- Components: 8 in Polypropylene coated woofer,1 in Titanium coated horn loaded tweeter.
- Built-in InvisiBall® mounting hardware.
- Weather resistant enclosure and transducers.
- Readily paintable.
- 90° x 90° high frequency horn.
- Overload Protection Circuitry.
- Sensitivity: 92 dB SPL, 1 W, 1m.
- *Patents pending worldwide
Technicial Specifications ;
Frequency Range : 60 Hz to 16 kHz (-10 dB)
Power Capacity : 175 W Continuous Program Power 87 W Continuous
Pink Noise Sensitivity : 92 dB SPL, 1W, 1m
Directivity Factor (Q) : 7.5 dB
Directivity Index (DI) : 8.8 dB
Nominal Impedance : 8 ohms
Crossover Frequency : 2.8kHz
LF Driver : 200mm (8 in) Polypropylene cone w/ WeatherEdge
HF Driver : 25mm (1 in) Titanium coated polycarbonate
Enclosure Material : HIPS (High Impact Polystyrene)
Overload Protection : Full-Range power limiting to protect network and transducers

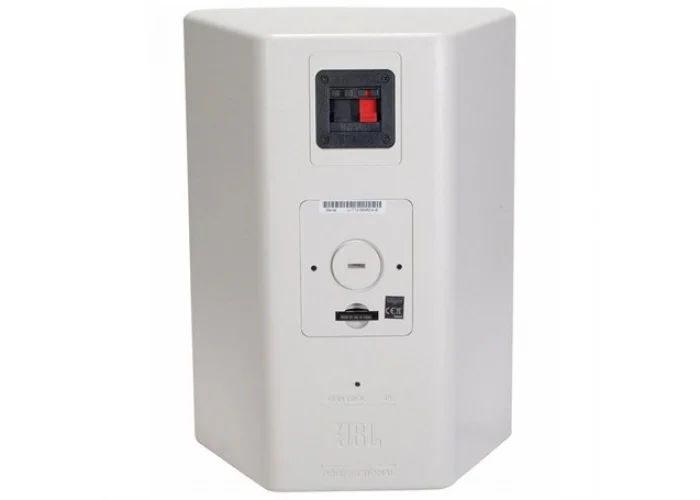

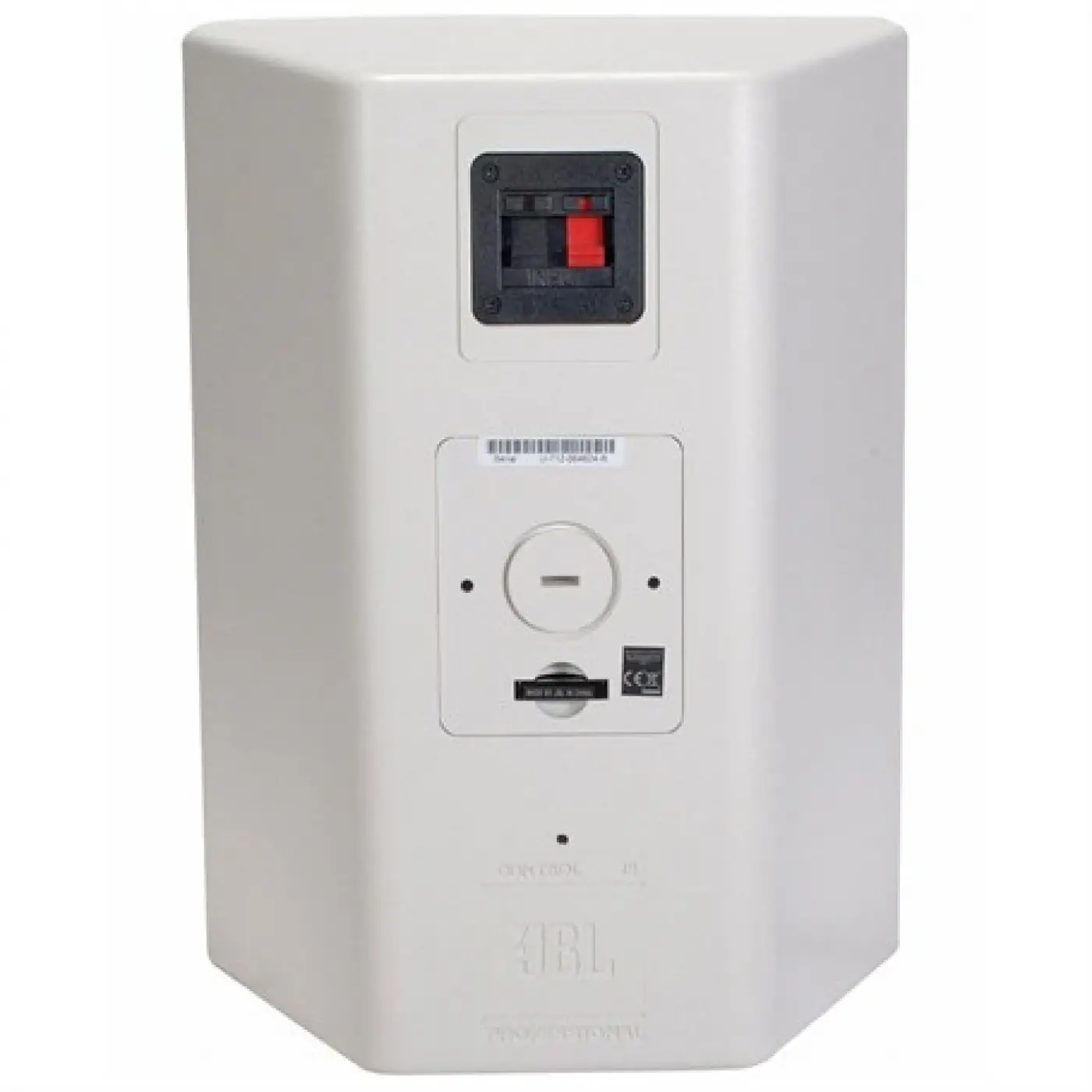

Terminations : Spring terminals, accepts banana plug
Dimensions (H x W x D): 380 x 280 x 220 mm (15.0 x 11.0 x 8.6 in)
Net Weight (ea) : 5.5 kg (12 lb)
Shipping Weight (ea) : 11 kg (25 lb)

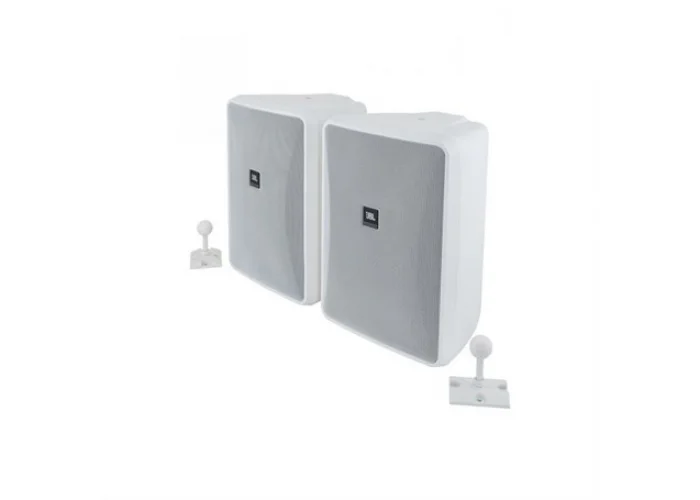

Included Accessories : Invisiball Assembly 6mm x 180mm hex key
Optional Accessories : MTC-28V: For vertical columnar orientation of up to 3 loudspeakers MTC-28H: For horizontal splaying of two speakers. Three brackets array up to six loudspeakers in a 360° array. MTC-28/25CM: Ceiling-mount adapter MTC-28SSG:Stainless Steel Grille for harsh environments. Available in silver, black (-BK) or white (-WH) MTC-28WMG:WeatherMax™ Stainless Steel Grille protects against driving precipitation. Available in black or white (-WH) MTC-PC2: Input panel cover protects input terminals in outdoor environments.
