JBL PRX812W 12" Aktif Kabin Hoparlör, 1500 Watt, 135 dB, Wi-Fi
FEATURES
- Built-in Wi-Fi for wireless control of your system from anywhere in the venue
- Free PRX Connect mobile app for iOS and Android provides wireless control over volume levels, 8-band parametric EQ and up to 50ms of speaker delay to fine-tune your sound
- Class-leading 1500-watt amplifier delivers ample power to fill your venue
- JBL Differential Drive® transducers for higher SPL in a lightweight design
- Next-generation JBL neodymium compression drivers
- Redesigned Crown input technology, including XLR, 1/4” and RCA inputs plus XLR loop-through
- Intelligent variable-speed fan activates only when needed to reduce noise
- Updated tuning delivers flat frequency response and smooth off-axis behavior
- Durable wooden cabinets, tour-proven DuraFlex™ finish and dent-resistant 16-gauge grilles
- Universal power supply for worldwide compatibility
- dbx Type IV™ limiting ensures clear, accurate sound at high volumes
- Brutal testing regimen—including the famous JBL 100-hour power test—ensures reliable performance
APPLICATIONS
- PRX812W is a compact and versatile speaker in the PRX800 Series with remote Wi-Fi control of onboard DSP EQ parameters. It has been designed to deliver maximum performance for its weight and size as both a stage monitor and a front of house main PA. Two user selectable EQ settings are provided to optimize the system for either application. With a dual socket pole mount the PRX812W is a perfect match with a PRX818XLFW subwoofer, offering a high performance self-powered sub/sat system.
- The PRX812W is comprised of a 12” Differential Drive® woofer, a 2408H-1, 37.5 mm (1.5 in) annular polymer diaphragm, neodymium compression driver mounted to a 90° by 50° horn, all driven by 1500 watt Class-D digital power amplifier. Sophisticated DSP is at the core of a fully featured input section, providing user selectable system EQ, protection, input sensitivity selection, cross-over functionality, dynamic limiting and discrete component optimization.
- All PRX800 cabinets are built from 18 mm, strong, light-weight poplar plywood made structurally sound with tongue and groove joints. All PRX800 Series cabinets are protected by JBL’s tour proven DuraFlex™ finish. Grilles are made from dent-resistant 16 gauge steel and handles are made from light-weight glass-filled nylon for added strength and durability. All M10 suspension points are constructed from 14 gauge steel and have been tested with a yield-strength of 1000 lbs. each.

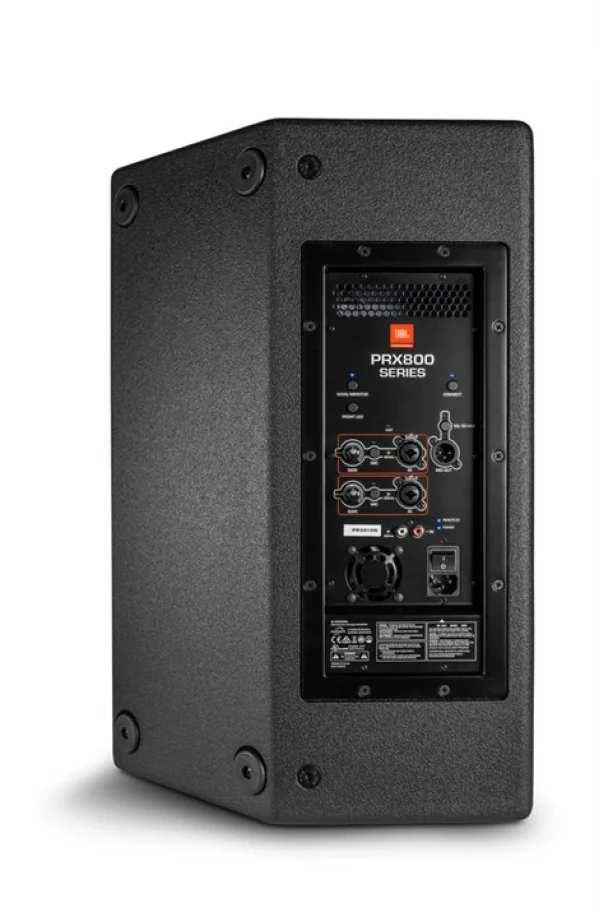

- The amplifier input panel offers XLR or ¼ inch jack compatibility and a sensitivity switch provides extra flexibility, making it possible to connect literally any sound source without using a mixer. Signal present and limiter lights indicate the system status and assist in setting the optimum level via the level control knob.
SPECIFICATIONS
| | System Type | Self Powered 12”, two-way, bass-reflex |
| | Maximum SPL Output | 135 dB peak |
| | Frequency Range (-10 dB) | Main: 44.8 Hz – 20 kHz Monitor: 44.8 Hz – 20 kHz |
| | Frequency Response (±3 dB) | Main: 55.7 Hz – 20 kHz Monitor: 56.5 Hz – 20 kHz |
| | Input Connectors | 2 x Balanced XLR / 1/4 inch input, 2 x unbalanced RCA input |
| | Input Impedance | 20K Ohms (balanced),10K Ohms (unbalanced) |
| | Signal Indicators | Limit: Yellow LED indicates peak output has been reached and dsp limiter is acting
Signal: Green LED indicates signal present
Power: Blue indicates system has power and ready to pass audio |
| | EQ | User selectable presets for Main or Monitor position, Advanced EQ settings available using Wi-Fi and PRX Connect application |
| | Dynamic Control (Input) | dbx Type IV™ limiter circuit |
| | Crossover Frequency | 1.85 kHz |
| | Design | Highly efficient Class-D amplifier |
| | Power Rating | 1500W (750W x 2) |
| | AC Power Input | 100V - 240V ~ 50/60 Hz |
| | LF Driver | 1 x JBL 272G 305 mm (12 in) woofer |
| | HF Driver | 1 x JBL 2408H-2 37.5 mm (1.5 in) annular polymer diaphragm, neodymium compression driver |
| | Coverage Pattern | 90° x 50° nominal |
| | Directivity Index (DI) | 10.2 dB |
| | Directivity Factor (Q) | 10.4 |
| | Enclosure | Asymmetrical, 18 mm, plywood |
| | Suspension / Mounting | Dual 36 mm pole socket, 12 x M10 Suspension Points |
| | Transport | 1 x injection molded handle with backing cup |
| | Finish | Obsidian DuraFlex™ finish |
| | Grille | Powder coated, Obsidian, 16 gauge perforated steel with acoustical transparent black cloth backing. |
| | Dimensions (H x W x D): | 599 mm x 385 mm x 341 mm
(23.6 in x 15.1 in x 13.4 in) |
| | Net Weight | 40 lbs / 18.1 kg |
| | Gross Weight | 21.2 kg (48.0 lb) |
Main System/Floor MonitorPower Rating: 1500 WFrequency Range: (-10 DB) Main: 44.8 Hz – 19.6 kHzMonitor: 44.8 Hz – 19.5 kHzFrequency Response (±3 DB) Main: 55.7 Hz – 18.2 kHzMonitor: 56.5 Hz – 17.7 kHz
